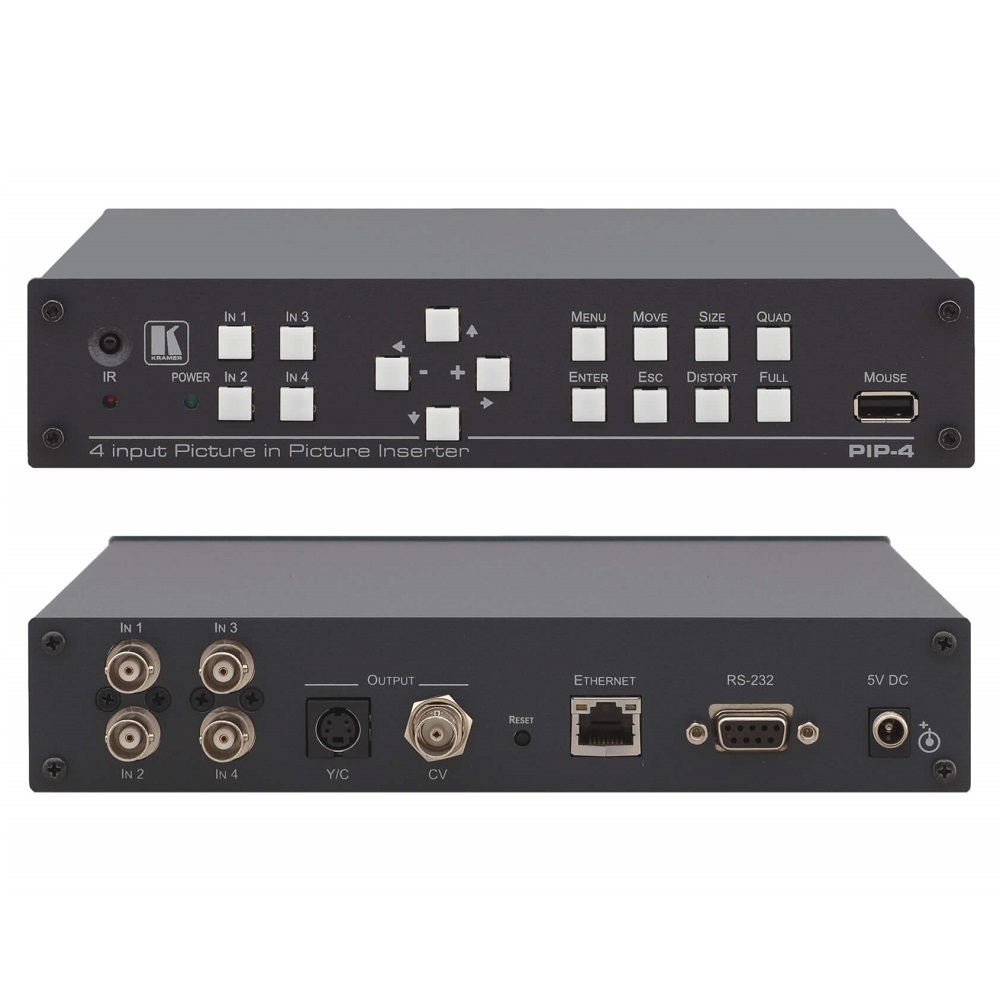

Multiviewer Picture–in–Picture PIP-4
Mô tả ngắn
4 Composite Video Picture–in–Picture Inserter
Multi-Standard — PAL & NTSC
No Format Conversion
Built-In ProcAmp Control — IR Remote, USB Mouse (with OSD), RS–232 & Ethernet.
Hotline: 0918 642 886
The PIP−4 is a high−performance picture−in−picture inserter for composite video signals. The PIP output can display up to four images simultaneously, each of which can be sized and positioned individually.
-
- Picture–In–Picture Options — All inputs can be displayed simultaneously with variable window sizing and positioning and freeze frame capability. Quad button displays 4 equal–sized images.
-
- Multi–Format Operation — s–Video and composite video outputs.
-
- Multi–Standard Operation — PAL & NTSC compatible inputs & outputs (no format conversion).
-
- USB Mouse Connector — For convenient navigation and control, including the OSD.
-
- Built–In ProcAmp — Brightness, contrast, and saturation for each input.
-
- Flexible Control Options — Front panel, IR remote, mouse (with OSD), RS–232 & Ethernet.
INPUTS
-
4 composite video, 1Vpp/75Ω on BNC connectors
OUTPUTS
-
1 s–Video, 1Vpp, 0.3Vpp/75Ω on a 4–pin connector
-
1 composite video, 1Vpp/75Ω on a BNC connector
DIGITAL RESOLUTION
-
10 bit
VIDEO BANDWIDTH
-
5.4MHz
K-FACTOR
-
0.9%
S/N RATIO
-
64dB
DIFFERENTIAL PHASE
-
0.8Deg
DIFFERENTIAL GAIN
-
1.1%
LUMA NON-LINEARITY
-
0.9%
CHROMA / LUMA DELAY
-
<15ns
Y/C SEPARATION
-
Adaptive 4–line digital comb filters
MEMORY
-
Non–volatile memory for storage of 2 setups
CONTROL
-
Front–panel, OSD, RS–232 and Ethernet
-
video pane size and position
-
video ProcAmp functions: video zoom, freeze
POWER CONSUMPTION
-
5V DC, 560mA
INCLUDED ACCESSORIES
-
Power supply, RC–IR3 Infrared Remote Control
PRODUCT DIMENSION
-
21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT
-
0.9kg (2.0lbs) approx.
