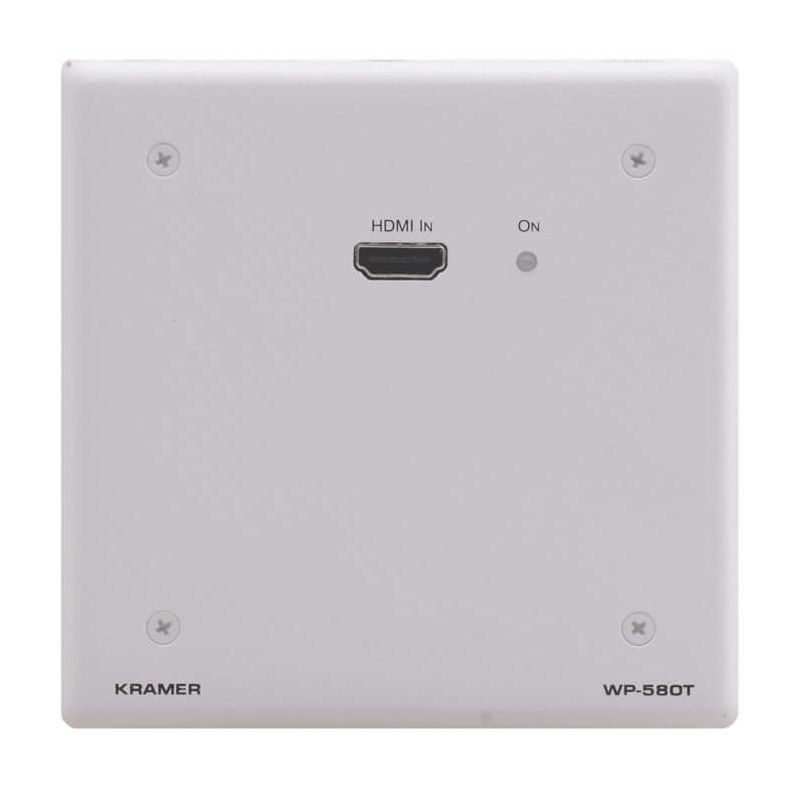

Bộ truyền tín hiệu HDMI-HDBT WP-580T

The WP−580T is a high−performance, HDBaseT twisted pair wall plate transmitter for 4K@60Hz (4:2:0) HDMI signals. The WP−580T inputs the signals and converts them into an HDBaseT twisted pair signal that it transmits to a WP−580R receiver. The WP–580T(D) model is supplied with a Midway Size 2 gang DECORA® design frame.* DECORA® is a registered trademark of Leviton Manufacturing Co., Inc

• - Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).

• - HDTV Compatible.

• - HDCP 2.2 Compliance.

• - HDBaseT™ Technology.

• - HDMI Support — Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD, CEC.

• - 3D Pass–Through.

• - EDID PassThru — Passes EDID signals between the source and display.

• - 2K & 4K Support.

• - System Range — Up to 70m (230ft).

• - Cable — For optimum range and performance using HDBaseT™, use Kramer's BC–HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non–Kramer CAT 6 cable may not reach these ranges.

• - Indicators — Status LEDs for input, output, link and power.

• - Dimensions — 12.4cm x 3.12cm x 7.9cm (4.88" x  1.29"  x 3.12") US; 15.1cm x 2.96cm x 8.6cm (5.95" x 1.17" x 3.39"), 15.1cm x 2.96cm x 8.0cm (5.95" x 1.17" x 3.15") EU (W, D, H).
