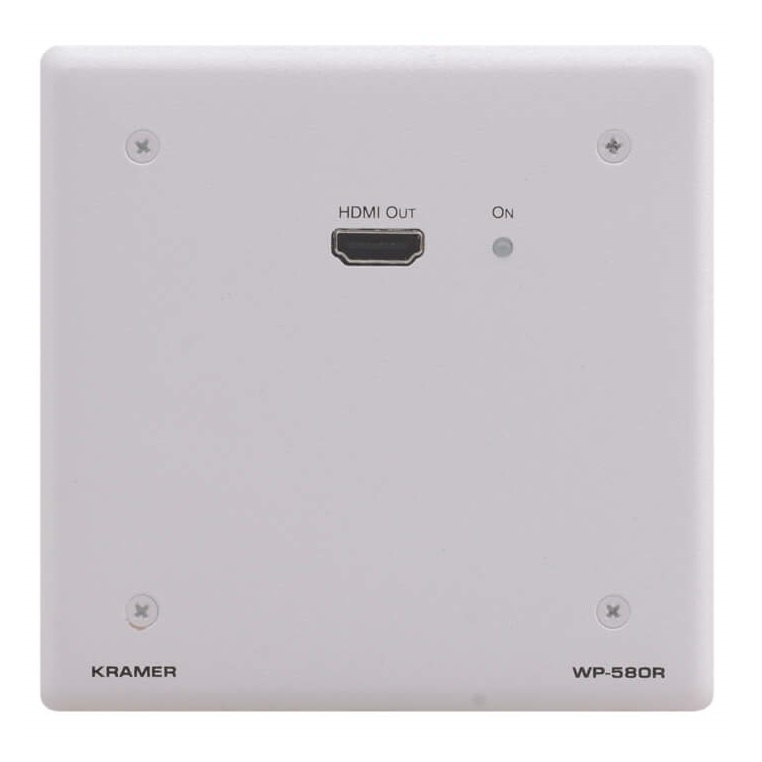

Bộ nhận tín hiệu HDMI-HDBT WP-580R
Mô tả ngắn
4K60 4:2:0 HDMI Wall–Plate Receiver over Long–Reach HDBaseT
Max Data Rate — 10.2Gbps (3.4Gbps per graphic channel)
2K support
Hotline: 0918 642 886
The WP−580R is a high−performance, HDBaseT twisted pair wall plate receiver for for 4K@60Hz (4:2:0) HDMI signals. The WP−580R receives an HDBaseT twisted pair signal from the WP−580T and converts it back into 4K@60Hz (4:2:0) HDMI signals. The WP–580R(D) model is supplied with a Midway Size 2 gang DECORA® design frame.* DECORA® is a registered trademark of Leviton Manufacturing Co., Inc
-
Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
-
HDTV Compatible.
-
HDCP 2.2 Compliance.
-
HDBaseT™ Technology.
-
HDMI Support — Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD.
-
3D Pass–Through.
-
EDID PassThru — Passes EDID signals between the source and display.
-
2K Support.
-
System Range — Up to 70m (230ft).
-
Cable — For optimum range and performance using HDBaseT™, use Kramer's BC–UNIKat cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non–Kramer CAT 6 cable may not reach these ranges.
-
Indicators — Status LEDs for input, output, link and power.
|
MODEL |
DESCRIPTION |
|
WP–580R/US(W) |
US–size Wall–Plate Receiver, with White 2–gang Design Frame |
|
WP–580R/US(B) |
US–size Wall–Plate Receiver, with Black 2–gang Design Frame |
|
WP–580R/US/D(W) |
US–D–size Wall–Plate Receiver, with White 2–gang DECORA® Design Frame |
|
WP–580R/US/D(B) |
US–D–size Wall–Plate Receiver, with Black 2–gang DECORA® Design Frame |
|
WP–580R/EU(W)–80 |
EU–size Wall–Plate Receiver, with White 2–gang Design Frame |
|
WP–580R/EU(B)–80 |
EU–size Wall–Plate Receiver, with Black 2–gang Design Frame |
|
WP–580R/EU(G)–80 |
EU–size Wall–Plate Receiver, with Gray 2–gang Design Frame |
|
WP–580R/EU(W)–86 |
UK–size Wall–Plate Receiver, with White 2–gang Design Frame |
|
WP–580R/EU(G)–86 |
UK–size Wall–Plate Receiver, with Gray 2–gang Design Frame |
INPUTS
-
1 HDBaseT twisted pair RJ–45 connector
OUTPUTS
-
1 HDMI connector
BANDWIDTH
-
10.2Gbps (3.4Gbps per graphic channel)
STANDARDS COMPLIANCE
-
Supports HDMI and HDCP 2.2
POWER CONSUMPTION
-
5V DC, 930mA
INCLUDED ACCESSORIES
-
Power supply
PRODUCT DIMENSION
-
US: 11.43cm x 2.80cm x 11.43cm (4.50" x 1.10" x 4.50" ) W, D, H
-
EU: 15.10cm x 3.00cm x 8.00cm (5.94" x 1.18" x 3.15" ) W, D, H
-
15.10cm x 3.00cm x 8.60cm (5.94" x 1.18" x 3.39" ) W, D, H
-
UK: 15.10cm x 3.00cm x 8.60cm (5.94" x 1.18" x 3.39" ) W, D, H
PRODUCT WEIGHT
-
US: 0.2kg (0.4lbs) approx.
-
EU: 0.2kg (0.4lbs) approx.
-
0.2kg (0.4lbs) approx.
-
UK: 0.2kg (0.4lbs) approx.
