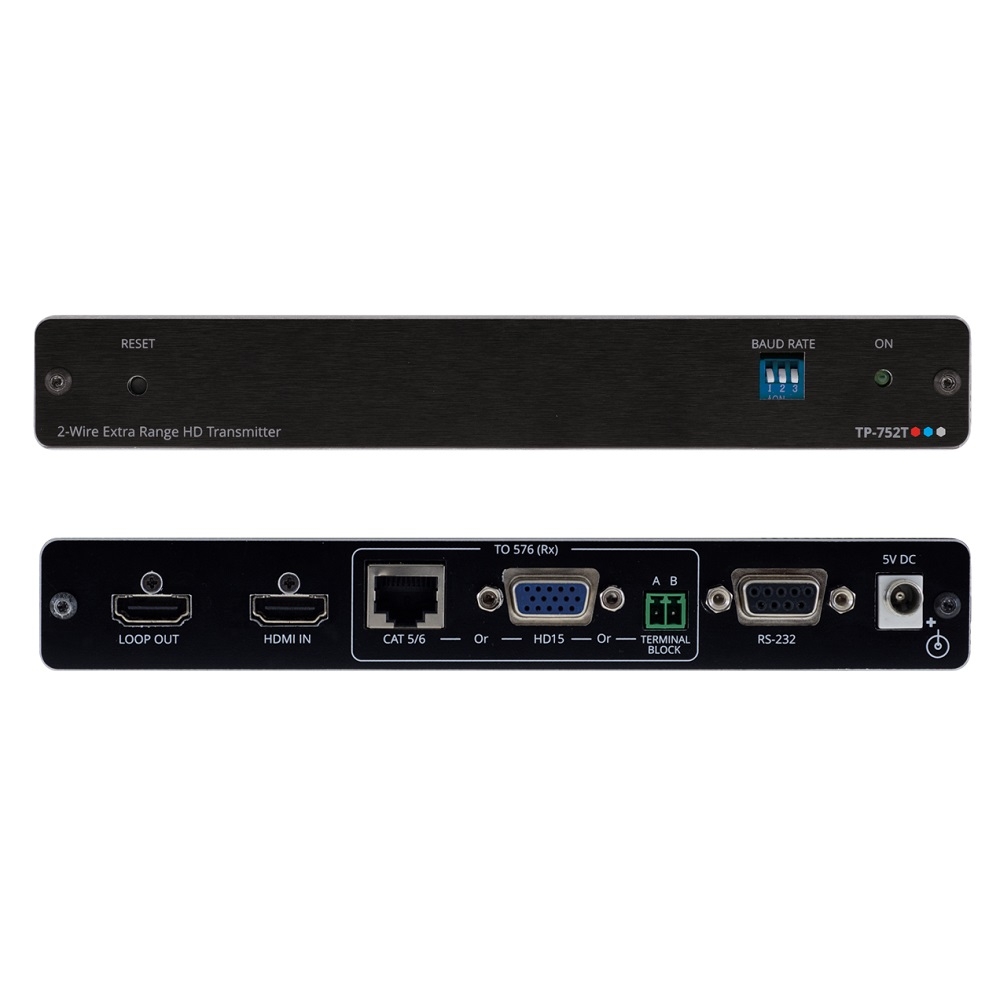

Bộ truyền tín hiệu HDMI TP-752T
Mô tả ngắn
HDMI Ultra–Reach Transmitter with RS–232 & Loop, over Any 2–Wire Cable
Range — Extends HD signals up to 600m (2000ft)
Bi–directional RS–232 control/transmission
Uses existing legacy cables
Diverse cabling options
Hotline: 0918 642 886
TP−752T is a high−performance transmitter for extending 1080p (HD) HDMI signals over distances of up to 600m (2000ft) using any 2−wire cabling. TP−752T supports diverse cabling and connector options for typical long distance and legacy installations.
-
- High Performance Extender — Reliable HDMI signal extension over distances of up to 600m (2000ft).
-
- Convenient Connector Options — Connect via one of 3 options: Terminal block (for common 2–wire connection), RJ–45 (CAT) (for typical long–distance applications), or VGA (to enable using HDMI over legacy VGA infrastructure).
-
- Cascaded Signal Distribution — The TP–752T transmitter has an active, reclocking HDMI output loop port for cascaded signal extenders or distributors, or local signal monitoring.
-
- Bidirectional RS–232 Extension — Enabling device control, such as control of the display from the source end, and control of a source from the display end.
-
- True Plug–and–Play — No setup or user configuration is required.
-
- Easy Installation — Compact MegaTOOLS® fan–less enclosure for surface mounting or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.
INPUTS
-
1 HDMI with loop: On female HDMI connectors
OUTPUTS
-
1 2-wire extra range HD signal on any one of the following connectors: RJ–45, 15–pin HD, or 2–pin terminal block
PORTS
-
RS-232: On a 9–pin D–sub connector for serial link extension
VIDEO
-
Max Resolution: 1080p60
-
Compliance: HDCP 1.4
AUDIO
-
Support: 2.0 channel PCM, 48kHz/44.1kHz sampling rate
-
Bandwidth: 12kHz
-
Analog THD + NOISE: 0.08% @1kHz at nominal level
EXTENSION LINE
-
Full HD (1080p @60Hz): Up to 600m (2000ft)
-
Baud Rate: 2400 to 115200, selectable
SYSTEM LATENCY
-
0.5sec
USER INTERFACE
-
Indicator: ON LED
-
Controls: Baud rate DIP–switches, Reset button
POWER
-
Source: 5.2V DC, 4A
-
Consumption: 5V DC, 1.5A
ENVIRONMENTAL CONDITIONS
-
Operating Temperature: 0° to +40°C (32° to 104°F)
-
Storage Temperature: –40° to +70°C (–40° to 158°F)
-
Humidity: 10% to 90%, RHL non–condensing
STANDARDS COMPLIANCE
-
Safety: CE, UL
-
Environmental: RoHs, WEEE
ENCLOSURE
-
Size: MegaTOOLS® — Mount 2 units side–by–side in a 1U rack space
-
Type: Aluminum
-
Cooling: Convection Ventilation
ACCESSORIES
-
Included: 2 Power adapters, 2 power cords
-
Optional: RK–T2B rack adapter
