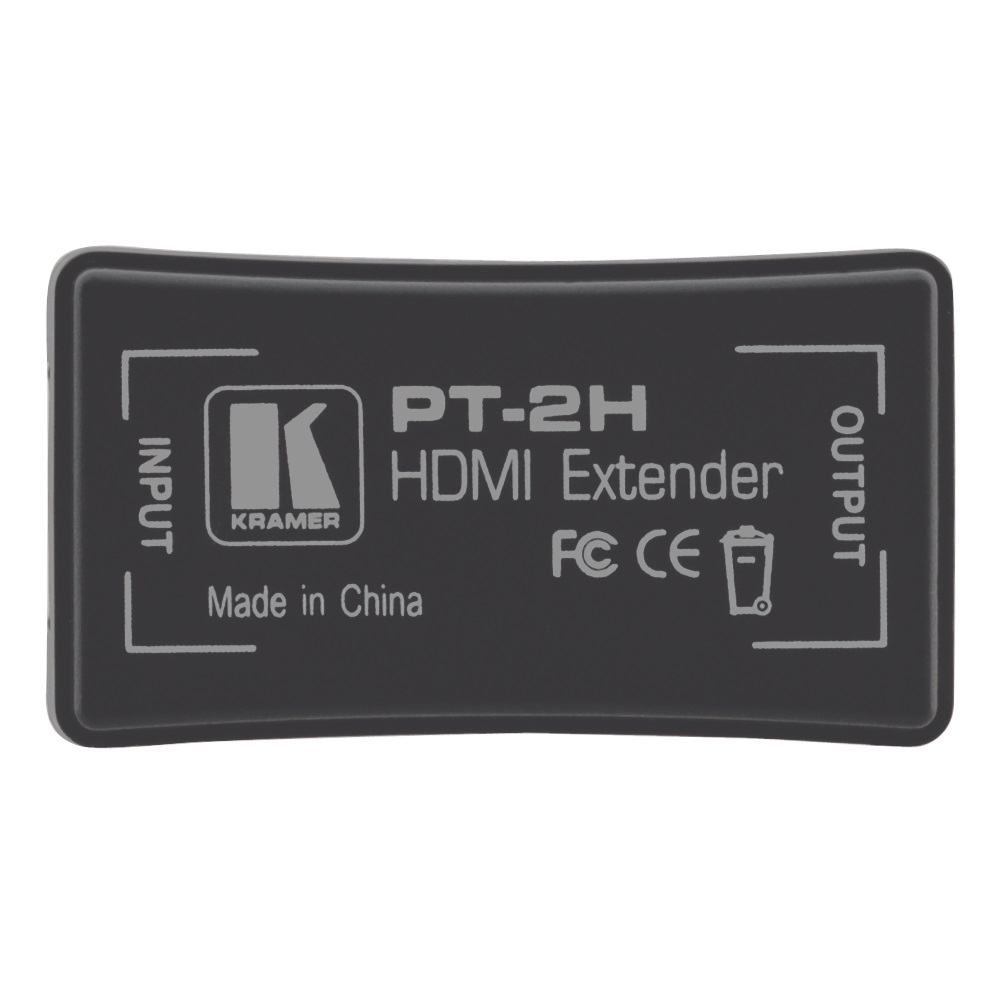

Bộ cân bằng tín hiệu HDMI PT-2H
Mô tả ngắn
Kramer PT-2H HDMI Equalizer
-
Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel)
-
Range — Up to 38m (120ft)
-
Audio — E
Hotline: 0918 642 886
The PT−2H is an equalizer for HDMI signals. The unit removes the digital noise (sparkles) in a video image that results from using a long HDMI cable.
-
Resolution — Up to 1080p.
-
HDTV Compatible.
-
HDCP Compliant.
-
Range — 38m (120ft).
-
Powered from HDMI Source.
INPUT
-
1 HDMI/DVI–TMDS on a type A 19–pin HDMI connector
OUTPUT
-
1 HDMI, HDCP1.0/1.1 on a type A 19–pin HDMI connector
MAX. DATA RATE
-
4.95Gbps (1.65Gbps per graphic channel)
HDMI COMPLIANCE
-
HDMI
RESOLUTION
-
All resolutions from VGA up to UXGA
DTV/HDTV VIDEO FORMAT
-
480i, 576i, 480p, 576p, 720p, 1080i, and 1080p
MAX. RANGE
-
1920 x 1200, 1080p — 38m (120ft): 23m from HDMI source to PT–2H, 15m* from PT–2H to HDMI acceptor. *For older models, 7m from PT–2H to HDMI acceptor (check with your local Kramer office)
PRODUCT DIMENSION
-
6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
SHIPPING WEIGHT
-
0.1kg (0.1lbs) approx
