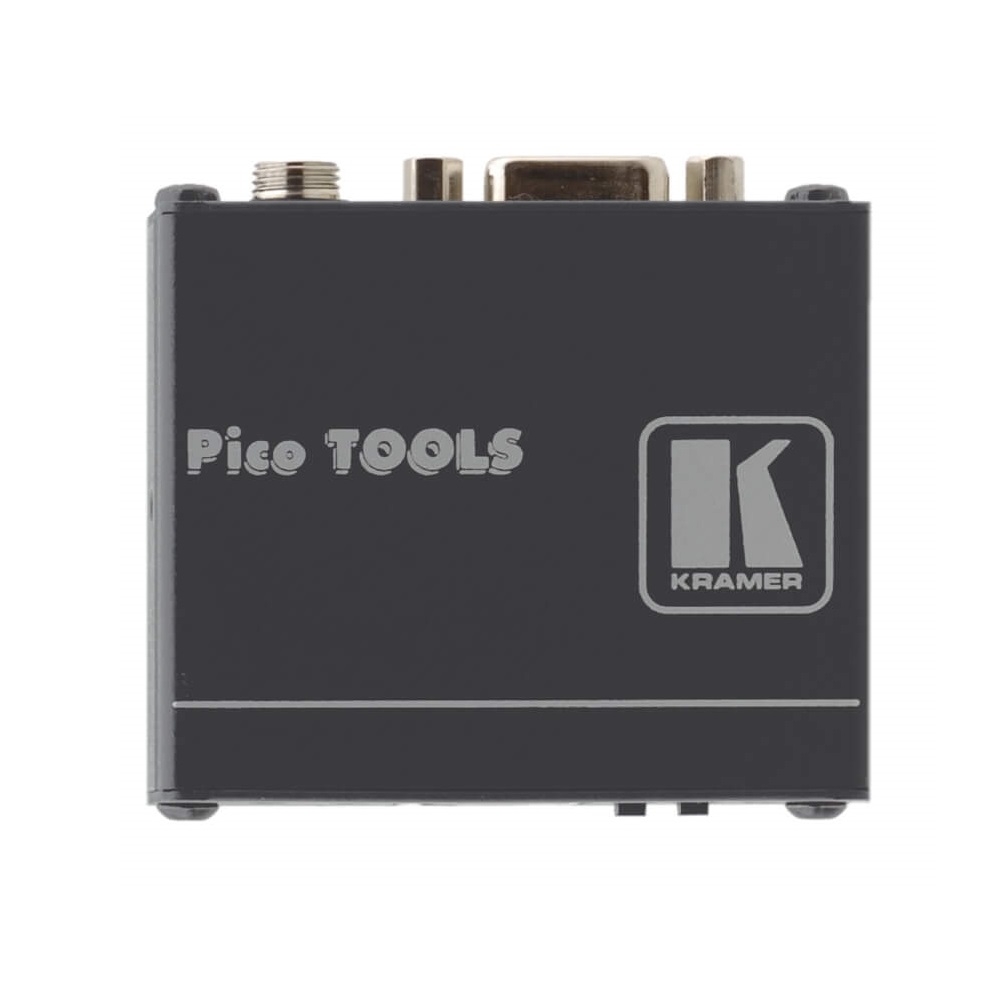

Bộ truyền tín hiệu VGA-DGKat PT-110EDID
Mô tả ngắn
Kramer PT-110EDID Computer Graphics Video over Twisted Pair Transmitter with EDID
-
H & V Polarity Settings
-
Enhanced EDID
-
Size — Pico TOOLS™ — Mount 4 units side–by–side in a 1U rack space with the optional RK–4PT rack adapter.
Hotline: 0918 642 886
The PT-110EDID is a twisted pair transmitter for computer graphics video signals. It converts a computer graphics signal into a twisted pair signal that is converted back to a computer graphics video signal when used with a compatible receiver.
- Max. Resolution — WUXGA & 1080p.
- HDTV Compatible.
- EDID Capture — Copies and stores the EDID from a display device.
- Sync Polarity Settings — H & V switches for improved display compatibility with the CAT 5 outputs.
- System Range — Up to 100m (320ft). Greater distances possible depending on resolution and cable.
- Cable — UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
- Power Connect™ System — A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
- Ultra Compact Pico TOOLS™ — 4 units can be rack mounted side–by–side in a 1U rack space with the optional RK–4PT rack adapter.

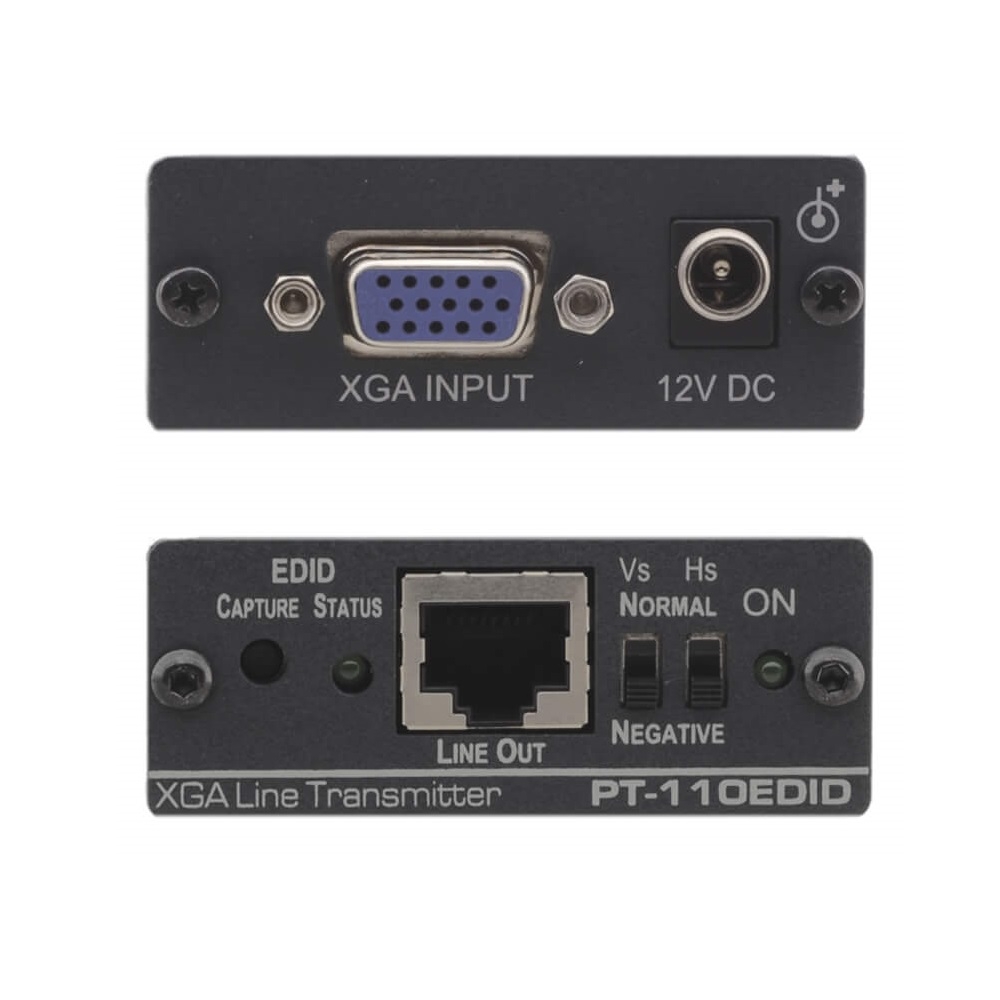

INPUT
-
1 VGA/UXGA on a 15–pin HD connector
OUTPUT
-
1 RJ–45 LINE OUTPUT connector
RESOLUTION
-
Up to WUXGA & 1080p
S/N RATIO
-
69dB (worst case)
COUPLING
-
AC
POWER CONSUMPTION
-
12V DC, 320mA
INCLUDED ACCESSORIES
-
Power supply
OPTIONS
-
RK–4PT 19–inch rack adapter
PRODUCT DIMENSION
-
6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT
-
0.1kg (0.2lbs) approx
SHIPPING DIMENSION
-
17.40cm x 12.00cm x 8.60cm (6.85" x 4.72" x 3.39" ) W, D, H
SHIPPING WEIGHT
-
0.4kg (1.0lbs) approx
