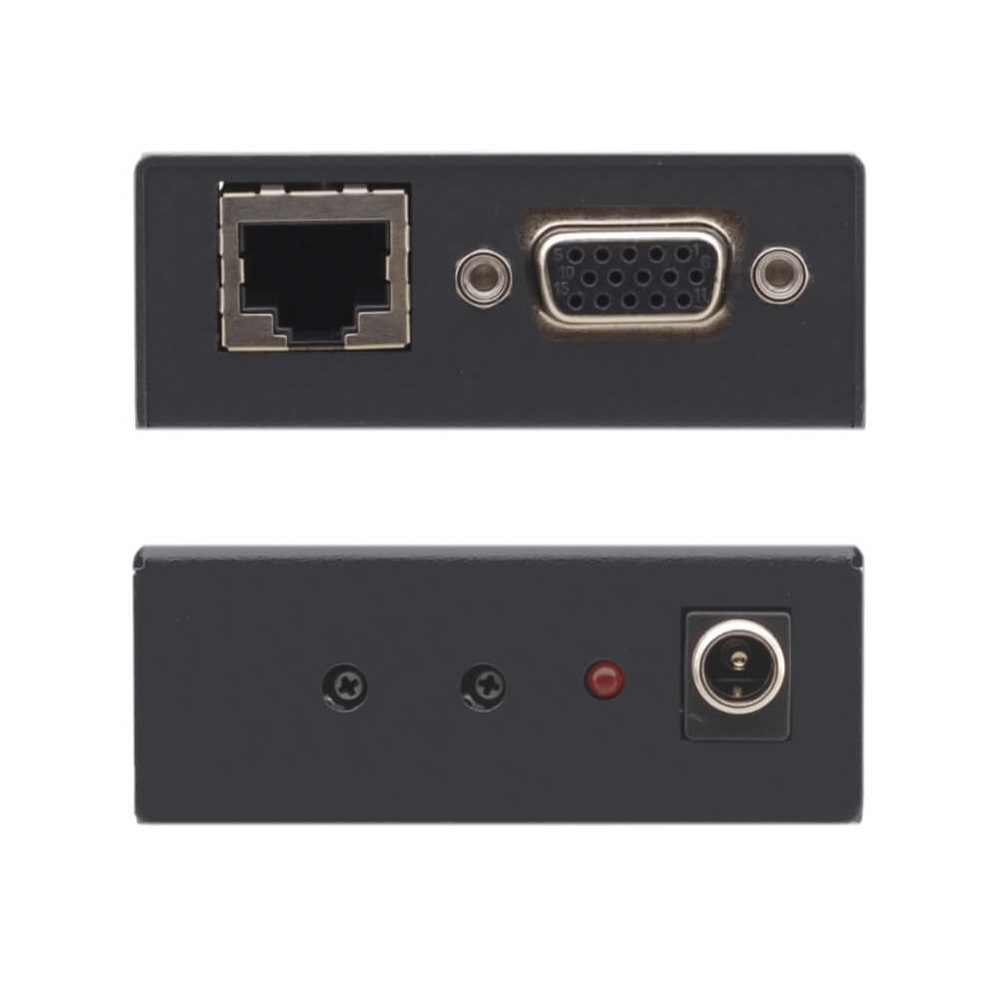

Bộ nhận tín hiệu VGA-DGKat PT-120
Mô tả ngắn

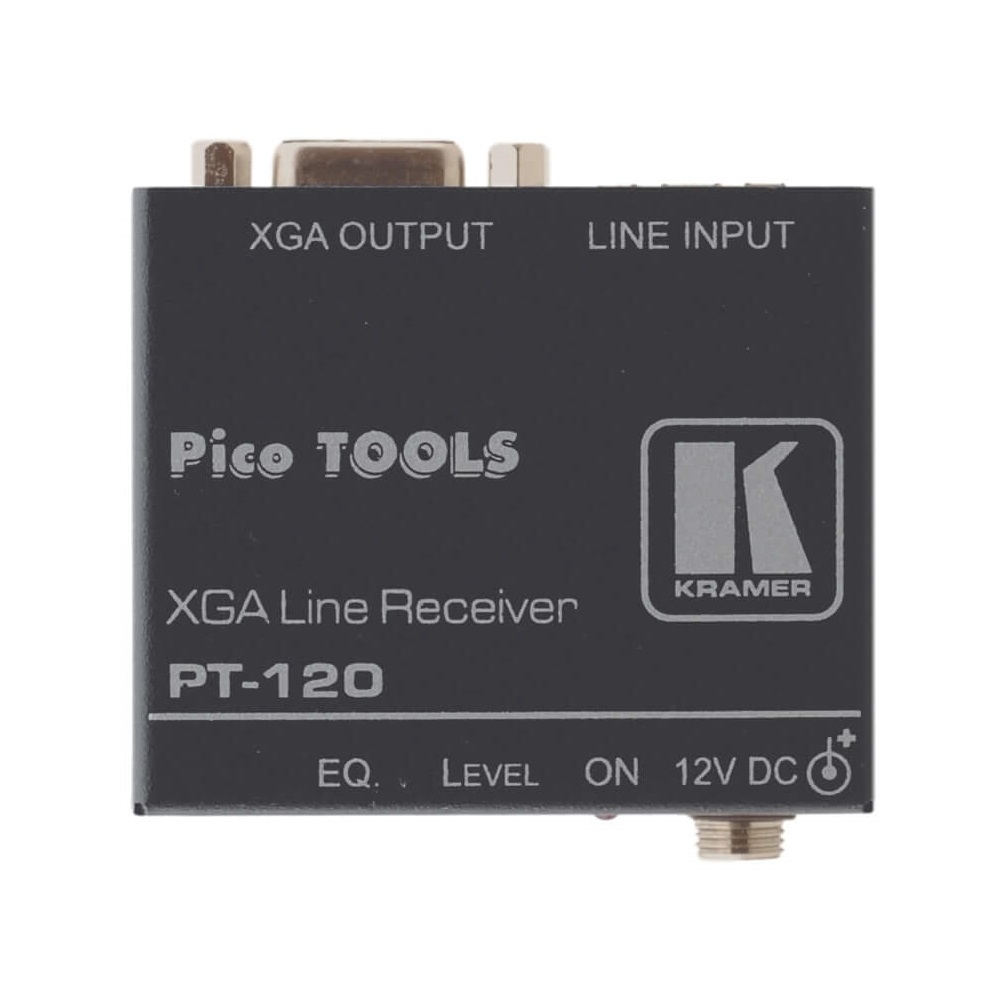

PT-120 Computer Graphics Video over Twisted Pair Receiver
-
Level & EQ Controls
-
Size — Pico TOOLS™ — Mount 4 units side–by–side in a 1U rack space with the optional RK–4PT rack adapter.
Hotline: 0918 642 886
The PT−120 is a twisted pair receiver for computer graphics video signals. It converts a twisted pair signal from a PT−110 transmitter (or other compatible Kramer transmitter) to a computer graphics signal.
-
HDTV Compatible.
-
Max. Resolution — WUXGA & 1080p.
-
Level (Gain) & EQ (Peaking) Controls.
-
System Range — Up to 100m (320ft). Greater distances possible depending on signal resolution and cable.
-
Cable — UTP (unshielded twisted pair) or STP (shielded twisted pair) cable such as CAT 5.
-
Power Connect™ System — A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
-
Ultra Compact Pico TOOLS™ — 4 units can be rack mounted side–by–side in a 1U rack space with the optional RK–4PT rack adapter.
INPUT
-
1 twisted pair on an RJ–45 connector
OUTPUT
-
1 VGA/UXGA on a 15–pin HD connector
MAX. OUTPUT LEVEL
-
1.5Vpp
MAX. RESOLUTION
-
WUXGA & 1080p
DIFF. GAIN
-
2.9% (worst case)
DIFF. PHASE
-
0.3Deg (worst case)
K-FACTOR
-
<0.05%
S/N RATIO
-
69dB (worst case)
CONTROLS
-
–7.7dB to +3.1dB, 130m (level)
-
0dB to +25dB, (EQ.) @50MHz
COUPLING
-
DC
POWER CONSUMPTION
-
12V DC, 175mA
INCLUDED ACCESSORIES
-
Power supply
OPTIONS
-
RK–4PT 19" rack adapter
PRODUCT DIMENSION
-
6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT
-
0.1kg (0.2lbs) approx
SHIPPING DIMENSION
-
174.00cm x 120.00cm x 86.00cm (68.50" x 47.24" x 33.86" ) W, D, H
SHIPPING WEIGHT
-
0.6kg (1.3lbs) approx
