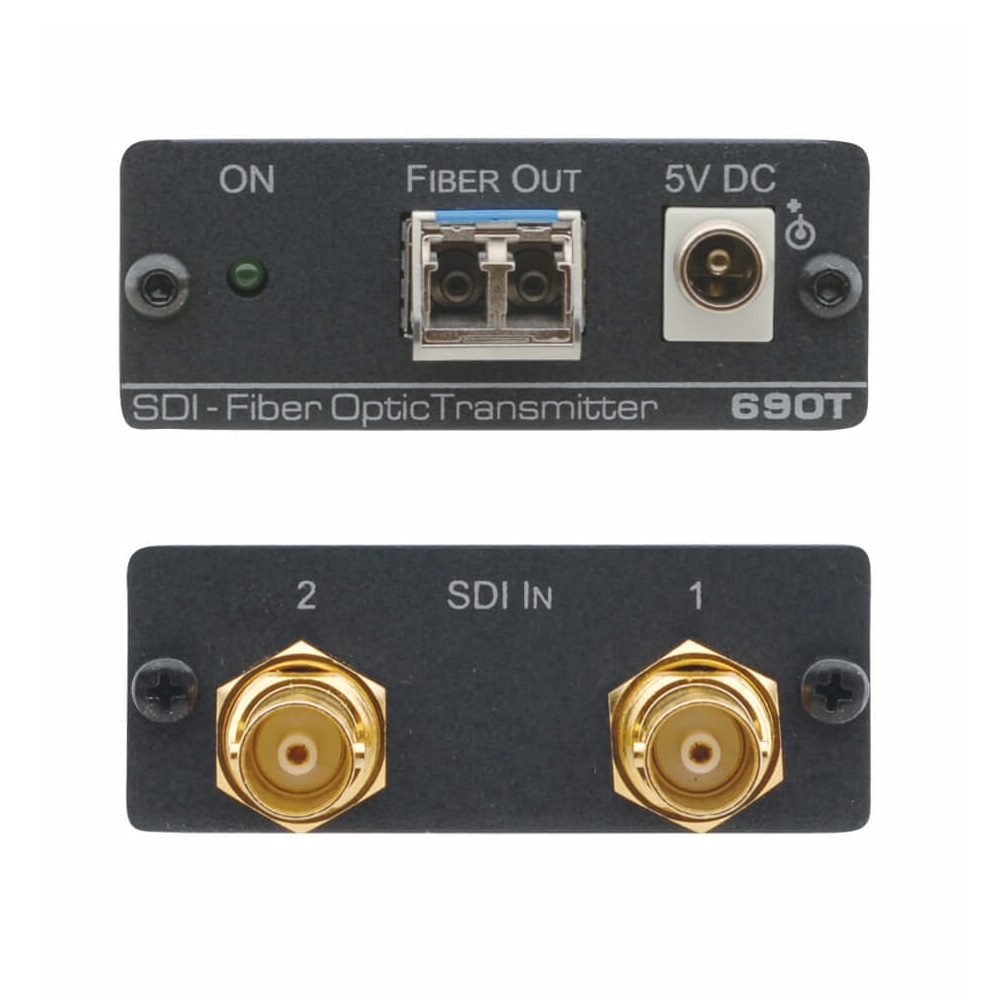

Bộ truyền tín hiệu SDI Quang 690T
Mô tả ngắn
Kramer 690T 2x3G SDI Transmitter over Ultra–Reach SM Fiber
Range >6.2 miles (10km)
Hotline: 0918 642 886
The 690T is a high−performance fiber optic transmitter for SDI video signals up to 3G HD−SDI. The 690T converts two 3G HD−SDI signals to single−mode fiber optic and the 690R receiver converts them back to the two original SDI formats. The unit is compatible with the fiber optic matrix VS−88FO.
- Max. Data Rate — 3Gbps.
- Inputs — 2 SDI on BNC connectors.
- Outputs — 2 single–mode fiber optic on LC connectors.
- HDTV Compatible.
- Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M), 3G HD–SDI (SMPTE 424M).
- Laser Standards Compliance — IEC 60825–1, FDA 21CFR1040; Laser Class 1: Safety of laser products.
- Kramer Equalization & re‑Klocking™ Technology — Rebuilds the digital signal to travel longer distances on the coax cable, 200m (HD–SDI) & 100m (3G HD–SDI).
- System Range — Up to 10km (6.2mi).
INPUTS
-
2 SD/HD/3G HD–SDI on BNC connectors
OUTPUTS
-
Dual single–mode fiber (9/125) over LC connectors
BANDWIDTH
-
Supports up to 3Gbps bandwidth for each input
FIBER OPTIC EXTENSION
-
Up to 10km (>6.2 miles) for 3G–SDI
INPUT CABLE EQUALIZATION
-
200m for SDI, 100m for 3G–SDI
POWER CONSUMPTION
-
5V DC, 480mA
OPERATING TEMPERATURE
-
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-
–40° to +70°C (–40° to 158°F)
HUMIDITY
-
10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES
-
Power supply
PRODUCT DIMENSIONS
-
6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT
-
0.1kg (0.2lbs) approx.
