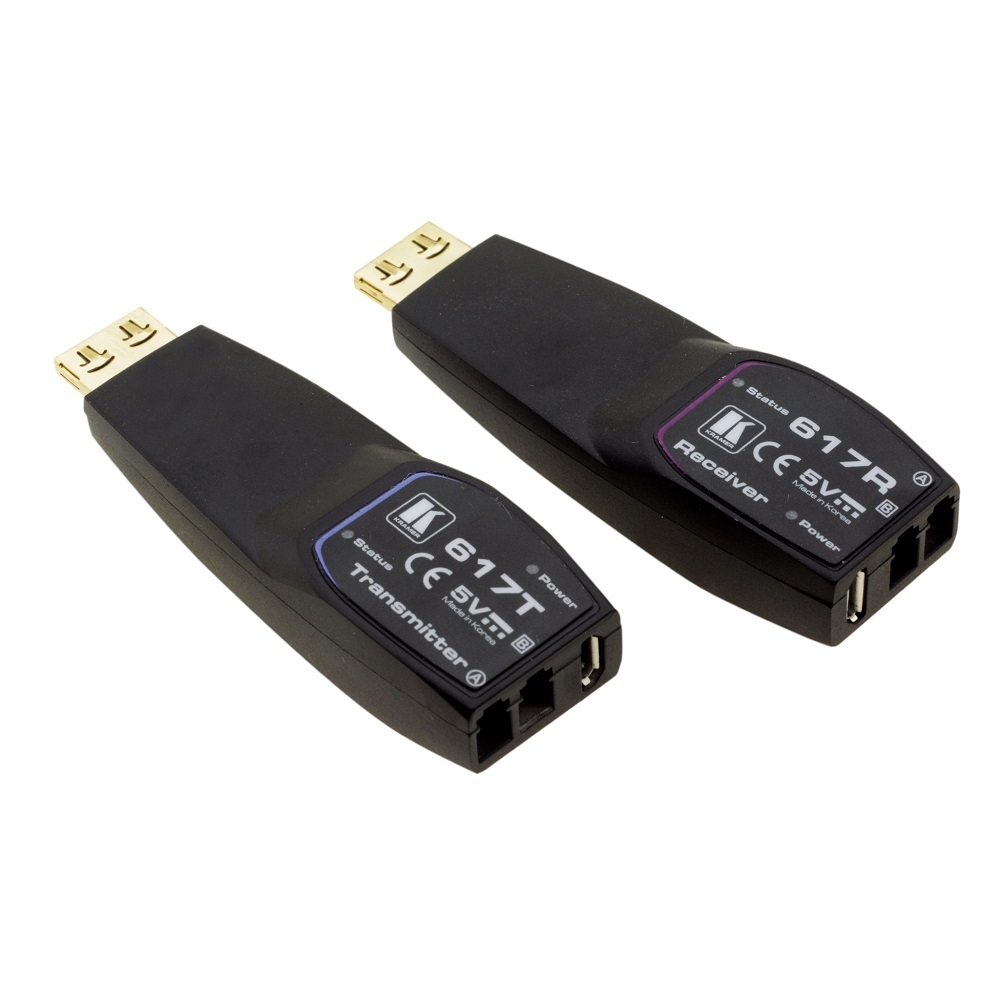

Bộ mở rộng tín hiệu HDMI-Quang 617R/T
Mô tả ngắn
4K HDR HDMI Transmitter/Receiver over Extended–Reach MM Fiber Optic
Max. Resolution — 4K@60(4:4:4).
Max. Data Rate — 18Gbps.
HDMI Support — HDCP 2.2, EDID and CEC. 18Gbps, 3D content transmission, and HDR10 as specified in HDMI 2.0.
Hotline: 0918 642 886
617R/T is a compact fiber optic transmitter and receiver capable of extending HDMI signals over fiber optic cable. This set of extenders supports 4K@60 (4:4:4) resolution up to 656 feet (200 meters) on a dual LC multi−mode fiber cable.
- Max. Resolution — 4K@60(4:4:4).
- Max. Data Rate — 18Gbps.
- HDMI Support — HDCP 2.2, EDID and CEC. 18Gbps, 3D content transmission, and HDR10 as specified in HDMI 2.0.
- High Quality Connectors — 24K gold–plated and corrosion–resistant for the best possible connectivity.
- K–Lock Pull–Resistant Connectors — Provides 15lbs of restraining force for a non–slip connection.
- Max. Extension — 656ft (200m) over dual LC multi–mode OM3 fiber optic cable.
- Compact Design — For easy plug and play installation.
- Pure fiber connectivity for secure applications.
VIDEO
-
Max. Resolution: 4K @60Hz 4:4:4 (4096x2160)
-
Data Rate: Maximum 6 Gbps per channel
-
Compliance: Supports HDMI 2.0, HDCP 2.2, EDID and CEC
PORTS
-
617T (source end): Male HDMI connector
-
617R (display end): Male HDMI connector
-
617T (source end): Micro USB (for power supply)
-
617R (display end): Micro USB (for power supply)
POWER
-
5V: Via USB source, Via external source, or HDMI PIN #18 (617T only)
-
Consumption: <2.5W
RECOMMENDED CABLE
-
Structure: Dual Multi–mode OM3 (50/125um) glass fiber
-
Optical Connectors: Duplex LC connectors
-
Max. Fiber Cable Attenuation (λ=850nm): 2.5dB/KM
-
Max. Skew: 0.4ns
-
Max. Insertion Attenuation: 0.5dB
-
Total Optical Attenuation: 1dB max @ 656ft (200m) extension
-
Maximum Length: 656ft (200m)
ENVIRONMENTAL CONDITIONS
-
Operating Temperature: 0° to +50°C (32° to 122°F)
-
Storage Temperature: –30° to +70°C (–22° to 158°F)
-
Operating Humidity: 0 to 85%
STANDARDS COMPLIANCE
-
CE: EN 55032:2012/AC: 2013 (Class A), EN 61000–3–2:2014, EN 61000–3–3:2013, EN 55024:2010
-
FCC: CFR 47 part 15 SUBPART B Class B, Section 15.101
-
Environmental: RoHS (2011/65/ EU)
ACCESSORIES
-
Included: 2 Micro USB to USB type–A cables, 2 Wall–mount power adaptors
