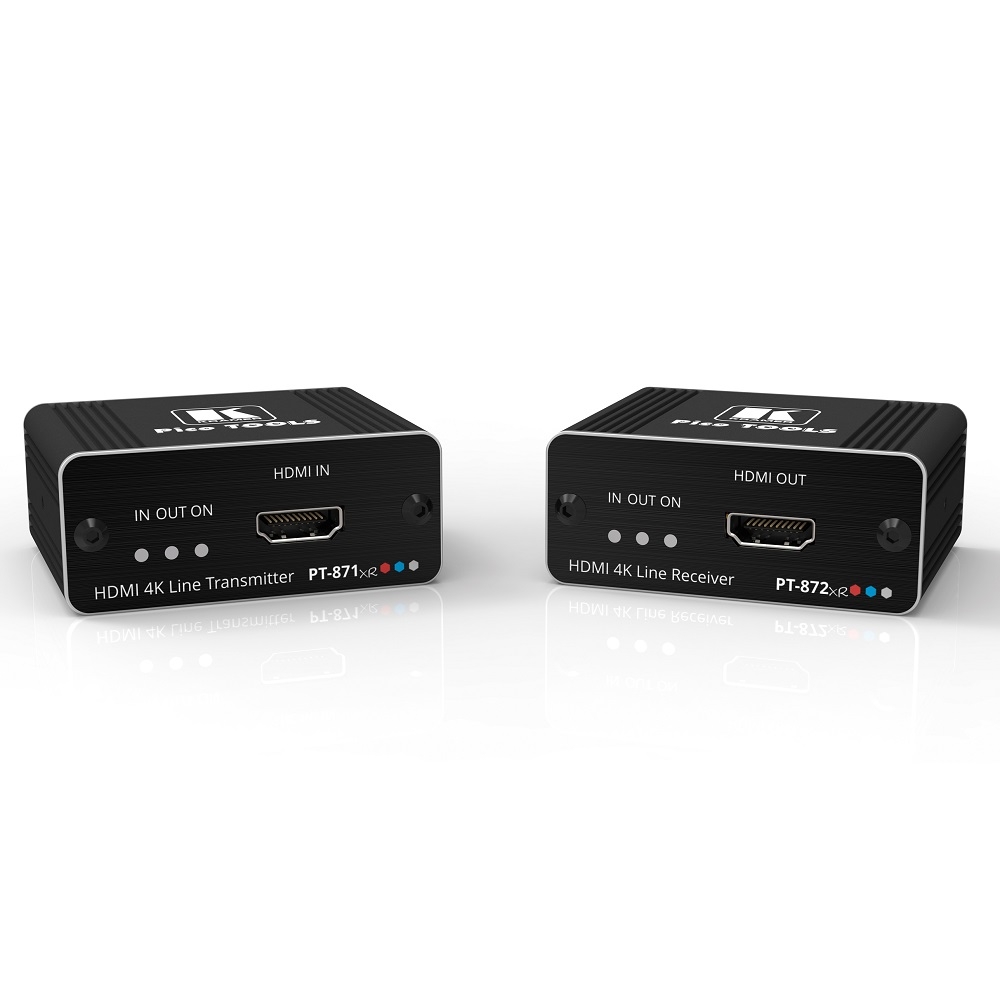

Bộ mở rộng tín hiệu HDMI-DGKat PT-871/2xr-KIT

INPUTS

• 1 HDMI: On an HDMI female connector (PT–871xr)

• 1 DGKat: On an RJ–45 female connector for extension line (PT–872xr)

OUTPUTS

• 1 DGKat: On an RJ–45 female connector for extension line (PT–871xr)

• 1 HDMI: On an HDMI female connector (PT–872xr)

VIDEO

• Transmitted Data Bandwidth: Up to 18Gbps (6Gbps per graphic channel)

• Max Resolution at High Compression Level: 3840x2160@60Hz (4:4:4) 24bpp

• Max Resolution at Standard Compression Level: 4096x2160@60Hz (4:4:4) 24bpp

• Standards Compliance: HDR10, HDCP 2.2

• HDMI Support: Deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0

HIGH COMPRESSION REACH EXTENSION

• Using Shielded UNIKAT Cables: Up to 60m (200ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)

• Using Plenum HDKat Cables: Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 50m (160ft) at 4K@60Hz (4:2:0) or full HD (1080p @60Hz 36bpp)

STANDARD COMPRESSION REACH EXTENSION

• Using Shielded UNIKAT Cables: Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)

EXTENSION LINE

• Signal Compression: Standard or high compression level applied to >1080p signals

• Compliance: DGKat 2.0

USER INTERFACE

• Indicators: IN, OUT, and ON LEDs

• Controls: Dip–switches to define compression level

POWER

• Source: 12V DC, 2A

• Consumption: 600mA

ENVIRONMENTAL CONDITIONS

• Operating Temperature: 0° to +40°C (32° to 104°F)

• Storage Temperature: –40° to +70°C (–40° to 158°F)

• Humidity: 10% to 90%, RHL non–condensing

ENCLOSURE

• Size: Pico Tools

• Type: Aluminum

• Cooling: Convection ventilation

ACCESSORIES

• Included: 1 power adapter with cord, 2 bracket sets

REGULATORY

• Safety: CE, UL

• Environmental: RoHs, WEEE

PRODUCT DIMENSIONS

• 6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H

PRODUCT WEIGHT

• 0.2kg (0.5lbs) approx.
