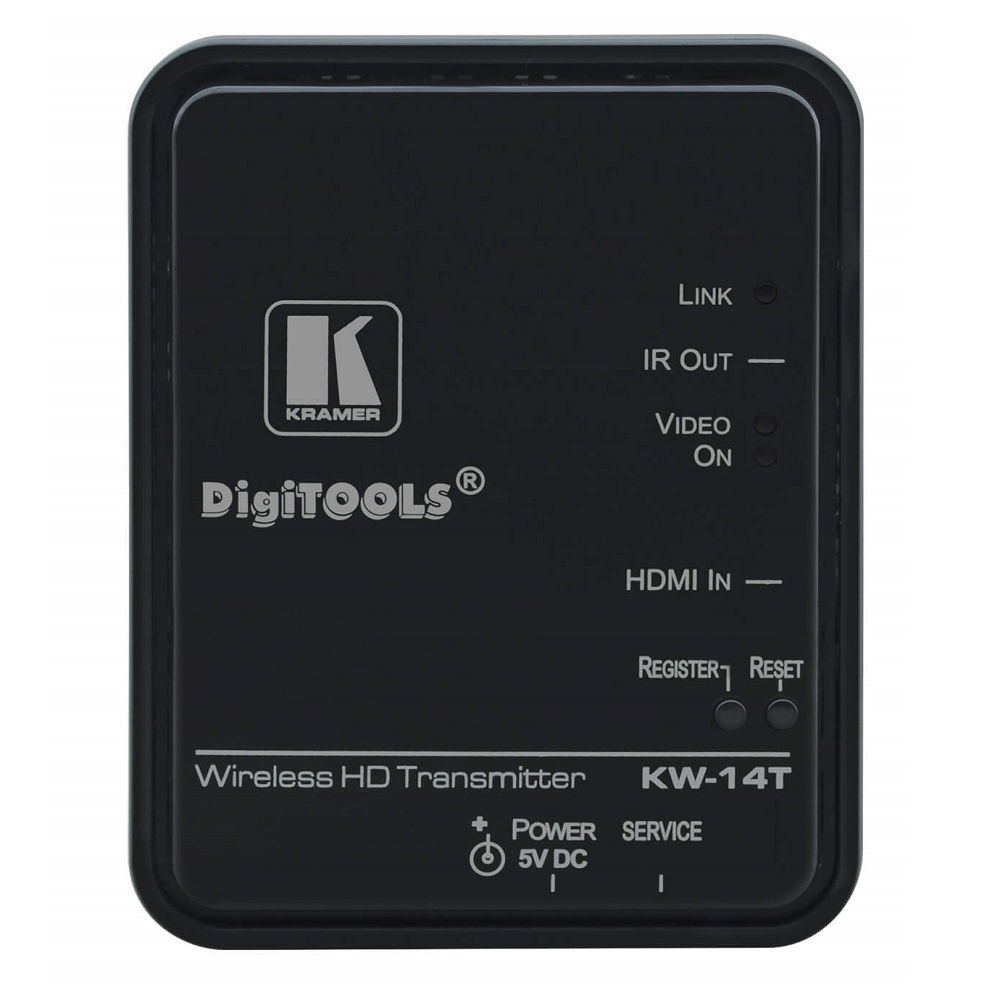

Bộ truyền nhận HDMI không dây KW-14
Mô tả ngắn
Max. Data Rate — 6.75Gbps, Deep Color up to 12–bit
Transmits to up to four receivers simultaneously, Pair Receivers with Multiple Transmitters
Secure Link — Uses AES–128 bit encryption, Range — Up to 30m (100ft)
IR Remote Control with On–Screen Display
Hotline: 0918 642 886
The KW−14T and KW−14R are a high−definition, wireless, HDMI transmitter/receiver pair for indoor use. Up to four KW−14R receivers can receive from one KW−14T transmitter and up to three KW−14T transmitters can be paired with one KW−14R receiver. The KW−14T and KW−14R pair comes pre−associated.
- - Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel), Deep Color up to 12–bit.
- - Secure Link — Uses AES–128 bit encryption.
- - Connection Capacity — Up to four receivers can receive from one transmitter simultaneously; up to three transmitters associated with one receiver at any given time.
- - Transmission Range — Up to 30m (100ft) including through walls and furniture.
- - Automatic Frequency Selection — Selects the most suitable frequencies to prevent RF interference.
- - Auto EDID Adjustment — To allow multi–screen support.
- - IR Remote Control — Enables the OSD menu to be displayed on the output display.
- - OSD (On Screen Display) — For simplified setup and configuration.
- - HDCP Compliant — HDCP sources are supported only when all connected displays support HDCP.
- - Zero Latency.
- - Automatic Sleep Mode — After three minutes when no input or link is detected.
- - CEC Support.
INPUT
-
1 HDMI connector (KW–14T), internal antenna (KW–14R)
OUTPUT
-
1 IR on a 3.5mm mini jack, internal antenna (KW–14T), 1 HDMI connector (KW–14R)
VIDEO RESOLUTION
-
Up to 1080p @60Hz
-
8, 10, or 12–bit color depth and VESA up to 1920 x 1080 @60Hz
FORMATS
-
RGB and YCbCr digital video
MAXIMUM DATA RATE
-
6.75Gbps (2.25Gbps per channel)
MAXIMUM PIXEL CLOCK
-
148.5MHz
AUDIO FORMATS
-
PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1, Dolby Digital Surround EX, DTS 2–channel, DTS Digital Surround 5.1, DTS 96/24
AUDIO RATE
-
Digital audio from the HDMI input up to 6Mbps
RF COMMUNICATION FREQUENCY
-
5.19 to 5.795GHz (In Japan operation is limited to the lower bands 5.15 to 5.25GHz, in Israel operation is limited to 5.15 to 5.35GHz)
-
5.19 to 5.795GHz (In Japan and Israel operation is limited to the lower bands
-
5.15 to 5.25GHz)
TRANSMISSION POWER
-
<18dBm conducted (KW–14T), <12dBm per channel conducted (KW–14R)
RECEIVING SENSITIVITY
-
–75dBm (KW–14T), — 65dBm (KW–14R)
SYSTEM LATENCY
-
<1ms
STANDARDS
-
HDMI with Deep Color, x.v.Color™, 3D, CEC
-
HDCP 2.0—works with sources that support HDCP repeater mode, DVI 1.0
UNOBSTRUCTED TRANSMISSION RANGE
-
30m (100ft) (KW–14T), 30m (100ft) (KW–14R)
POWER CONSUMPTION
-
5V DC 1A (KW–14T), 5V DC 1.2A (KW–14R)
OPERATING TEMPERATURE
-
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-
–40° to +70°C (–40° to 158°F)
HUMIDITY
-
10% to 90%, RHL non–condensing
COOLING
-
Convection, vented
ENCLOSURE TYPE
-
Plastic
ENVIRONMENTAL REGULATORY COMPLIANCE
-
Complies with appropriate requirements of RoHS and WEEE
VIBRATION
-
ISTA 1A in carton (International Safe Transit Association)
COMPLIANCE STANDARDS
-
CE, c–UL, UL
EMMISSION STANDARDS
-
CE, C–tick, FCC Class B, ICES, VCCI, KC
INCLUDED ACCESSORIES
-
Power supply 5V, 2 HDMI cables 0.9m (2.95ft) PN 2518–0101003, 1 IR Emitter cable PN 3300–500135
