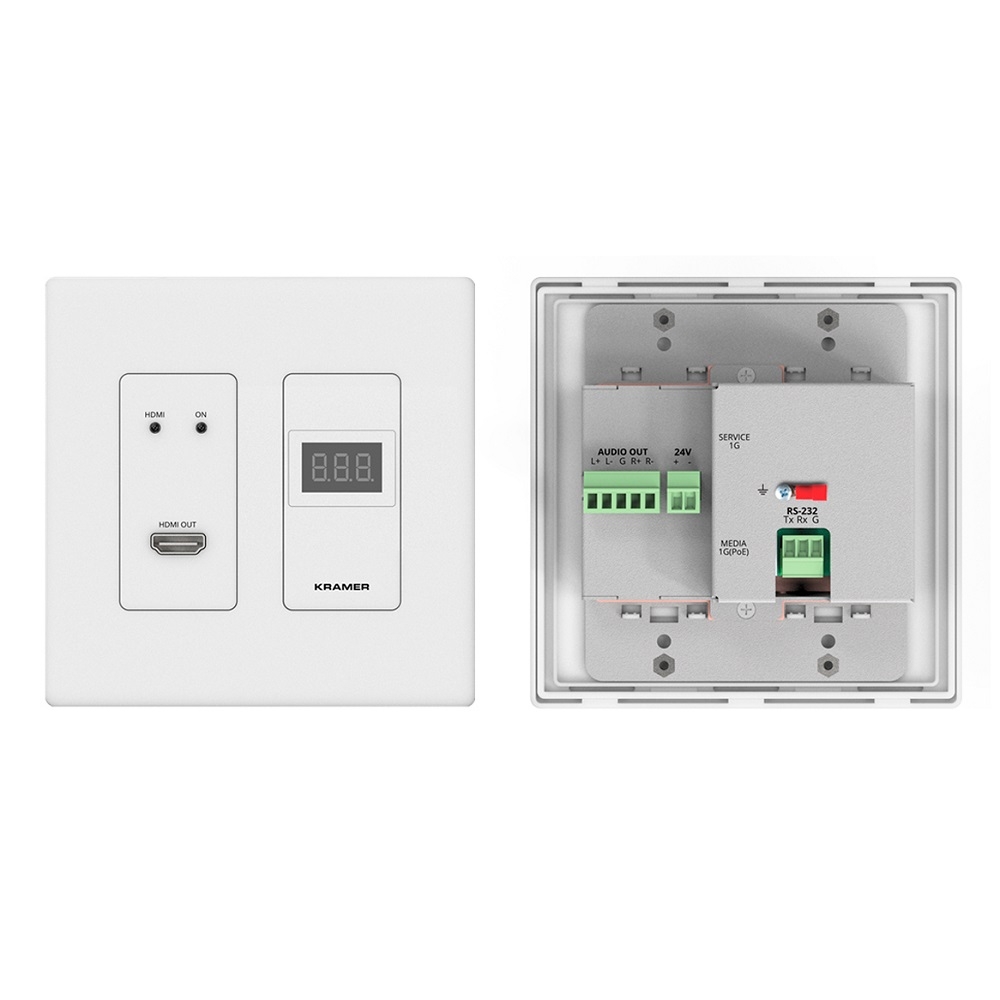

Thiết bị giải mã tín hiệu hình ảnh gắn tường WP-DEC7
Mô tả ngắn
High–performance, highly–scalable, AVoIP Wal Plate Decoder for 4K60 4:2:0, HDR10 over 1G network
Outstanding end–user experience
Ideal for large–scale deployments
Robust security
Simple planning and rollout
Hotline: 0918 642 886
WP−DEC7US−D(W) is an advanced decoder for streaming 4K@60Hz (4:2:0) video signals via Ethernet over copper cable.
- Video Streaming Receiver — Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface.
- HDR — Support HDR10 up to 4K@30Hz 4:2:2 12bits.
- Streaming Support — Unicast and multicast.
- Analog Audio De–Embedding Output — Extract the HDMI audio or LAN streaming audio and output it as balanced analog audio.
- Convenient and Comprehensive Control — Control the unit using intuitive embedded web pages, Protocol 3000 API commands via Ethernet or front panel LCD and buttons.
- Control Gateway — Through P3K or special TCP connection, user could control/communicate with RS232 and CEC to the connected devices.
- Video Wall — Up to 16x16 size.
- PoE Support — Option to power with PoE connection from a PoE switch
PORTS
-
2 x Ethernet: On RJ–45 connectors
-
1 x Analog Audio Out: 5–pin terminal block connector
-
1 x RS-232: 3–pin terminal block connector
VIDEO
-
Compression Standard: JPEG based, private stream
-
Max Resolution: 4K@60Hz (4:2:0)
USER INTERFACE
-
Indicators: HDMI and ON LEDs, front panel LCD Display
-
Controls: Front panel Reset buttons, front panel channel ID selection buttons, embedded web pages, P3K API commands via Ethernet
POWER
-
Source: PoE on LAN(PoE) port, or 24V DC
-
Consumption: 4W
ENVIRONMENTAL CONDITIONS
-
Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing
-
Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing
GENERAL
-
Product Dimensions: 90mm x 45.6mm x 105.6mm (3.54" x 1.80" x 4.16") W, D, H
-
Shipping Dimensions: 202mm x 135mm x 75mm (7.95" x 5.31" x 2.95") W, D, H
-
Product Weight: 0.5kg (1.10lbs) approx
-
Shipping Weight: 0.7kg (1.54bs) approx
