Thiết bị tăng cường tín hiệu EDID PT-2C
Mô tả ngắn

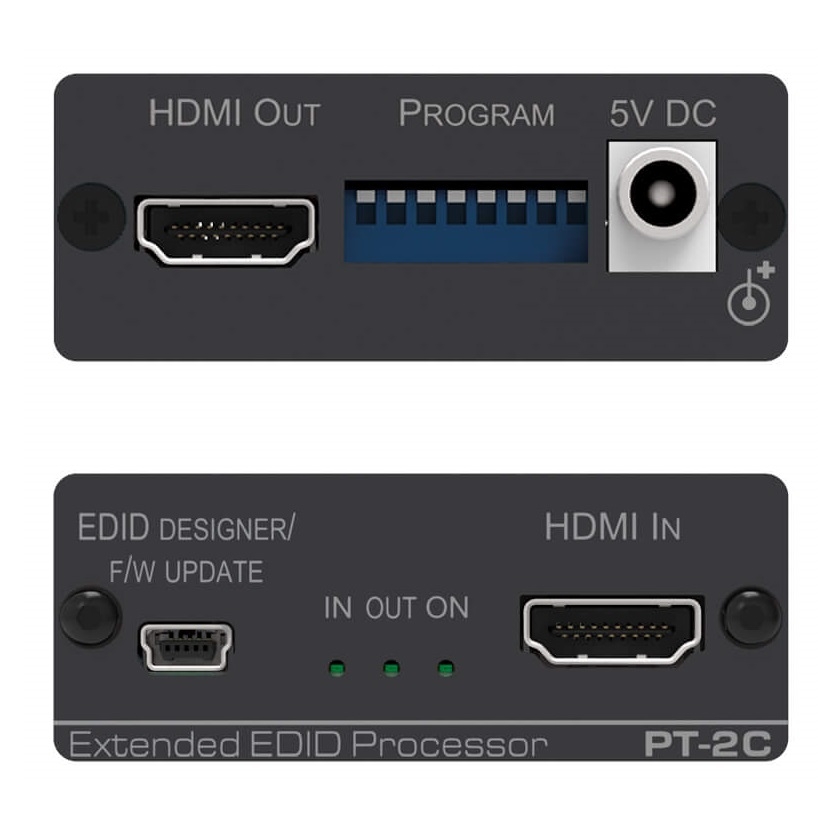

4K60 4:2:0 Extended EDID Processor Kramer PT-2C
4K resolution support
Active video signal source detection
Hotline: 0918 642 886
PT−2C is an EDID processor for 4K HDMI signals. It allows you to pass or block HDCP, multi−channel audio or deep color signals that may or may not be compatible with the display.
- - Max. Resolution — 4K@60Hz (4:2:0).
- - Max. Data Rate — 8.91Gbps (2.97Gbps per data channel).
- - HDMI Compliance.
- - Signal Reclocking.
- - Active Video Signal Source Detection.
- - Configurable Timeout — For when the input signal is lost.
INPUT
-
1 HDMI connector
OUTPUT
-
1 HDMI connector
PORTS
-
1 mini USB
MAX DATA RATE
-
10.2Gbps (3.4Gbps per data channel)
CONTROLS
-
8 DIP–switches
STANDARDS
-
HDMI with Deep Color, x.v.Color™ and 3D
-
HDCP—works with sources that support HDCP repeater mode
INDICATOR LEDS
-
HDMI In, HDMI Out, Power
POWER REQUIREMENTS
-
5V DC, 315mA
OPERATING TEMPERATURE
-
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-
–40° to +70°C (–40° to 158°F)
HUMIDITY
-
10% to 90%, RHL non–condensing
COOLING
-
Convection
ENCLOSURE TYPE
-
Aluminum
RACK MOUNT
-
With optional adapter
FURNITURE MOUNT
-
With included rubber feet
VIBRATION
-
ISTA 1A in carton (International Safe Transit Association)
COMPLIANCE STANDARDS
-
CE
ENVIRONMENTAL REGULATORY COMPLIANCE
-
Complies with appropriate requirements of RoHs and WEEE
INCLUDED ACCESSORIES
-
Power supply, bracket kit
