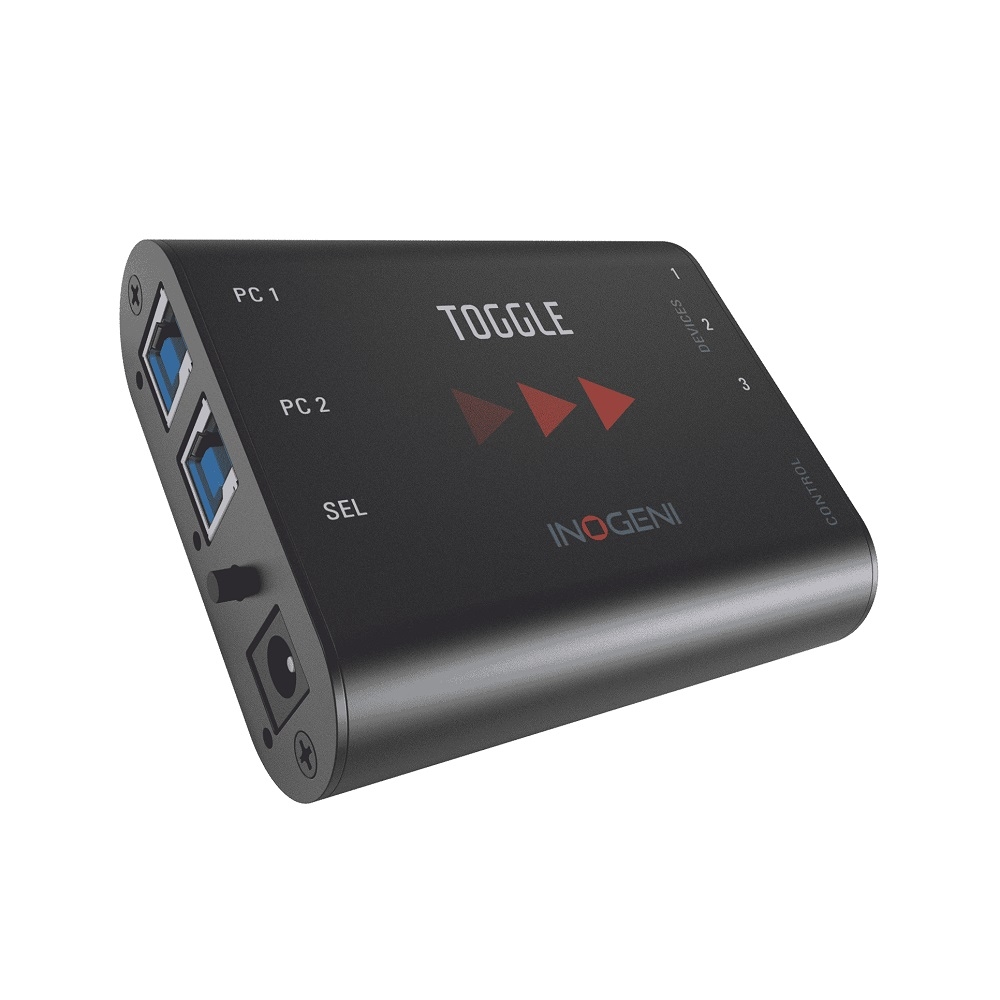

Inogeni TOGGLE BYOD USB 3.0 devices to 2 PC switcher
Mô tả ngắn
INOGENI’s TOGGLE USB 3.0 PRO AV switcher allows anyone in a conference room to access high-quality USB devices (cameras, microphones) in mere seconds.
Hotline: 0918 642 886
The TOGGLE USB 3.0 professional switcher can connect to three USB 3.0 devices and switch them between two hosts. It will automatically switch to a laptop when it is connected, and revert back to the conference room’s computer when disconnected. It can also be controlled remotely by RS-232 or GPI.
Features
The TOGGLE USB 3.0 switcher offers an array of features for a smooth and seamless BYOD or BYOM experience:
- Three USB 3.0 device ports
- Automatically switch between two USB 3.0 hosts
- Compatible with USB 2.0
- Automatic, manual or remote control
- RS-232 control
- GPI control
- Rugged full-metal enclosure
- External power supply can provide power to USB 3.0 devices
- Two USB 3.0 cables included
- Device configuration via the INOGENI Control App
- Firmware upgrade available via the INOGENI Control App
- Compatible with Barco ClickShare Conference
Video input
USB device ports Connector & Video Resolutions: 3 x Type-A USB 3.0/2.0 compatible
USB host ports Connector & Video Resolutions: 2 x Type-B USB 3.0/2.0 compatible
Control
Software: Automatic, manual or remote control. Current configuration is saved onboard.
Device control: RS-232 control, GPI control
Compatibility
Serial interface: Baud rate: 9600 bps For control purpose. See Serial communication protocol section for more details.
Push-button: Physical switch to select host.
GPIN: Contact-closure control. Controlled by open-drain IO (short to ground) or driven IO. Supported voltage range: 0V to +12V max. Voltage threshold is 2.3V.
Device current limit: 1.8A shared current limit for all 3 x USB device ports. You can monitor current consumption through RS-232 and our Control App.
Software
Upgrade: Field upgradable through our INOGENI Control App.
Physical details
Dimensions (W x L x H): 7.0cm x 8.3cm x 2.3cm 2.75” x 3.25” x 0.9”
Power supply: 12V (100-240 VAC 50/60Hz to 12V/1.2A DC)
Weight: 113g (0.25 lb)
Package content: 2 x 3 ft USB 3.0 cables (Type-A to Type-B), 1 x RS-232 terminal block adapter, 1 x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC, International adapters included in the box (AUS, EUR, UK and US)
Operating temperature: 0° to 45° C, 32° to 113° F
Storage temperature: -40° to 105° C, -40° to 221° F
Relative humidity 0% to 90% non-condensing
