Ashton Bentley TX2 Table Hub & DX2 Room Hub Meeting Room AV Kit
Mô tả ngắn
Ashton Bentley TX2 Table Hub & DX2 Room Hub Meeting Room AV Kit
A simple low cost two-box solution providing the complete audio-visual infrastructure for meeting rooms.
Designed to partner with the latest Video Conferencing solutions, the boxes replace the traditional rack of AV equipment.
Providing USB-C and HDMI connectivity, signal routing and control.

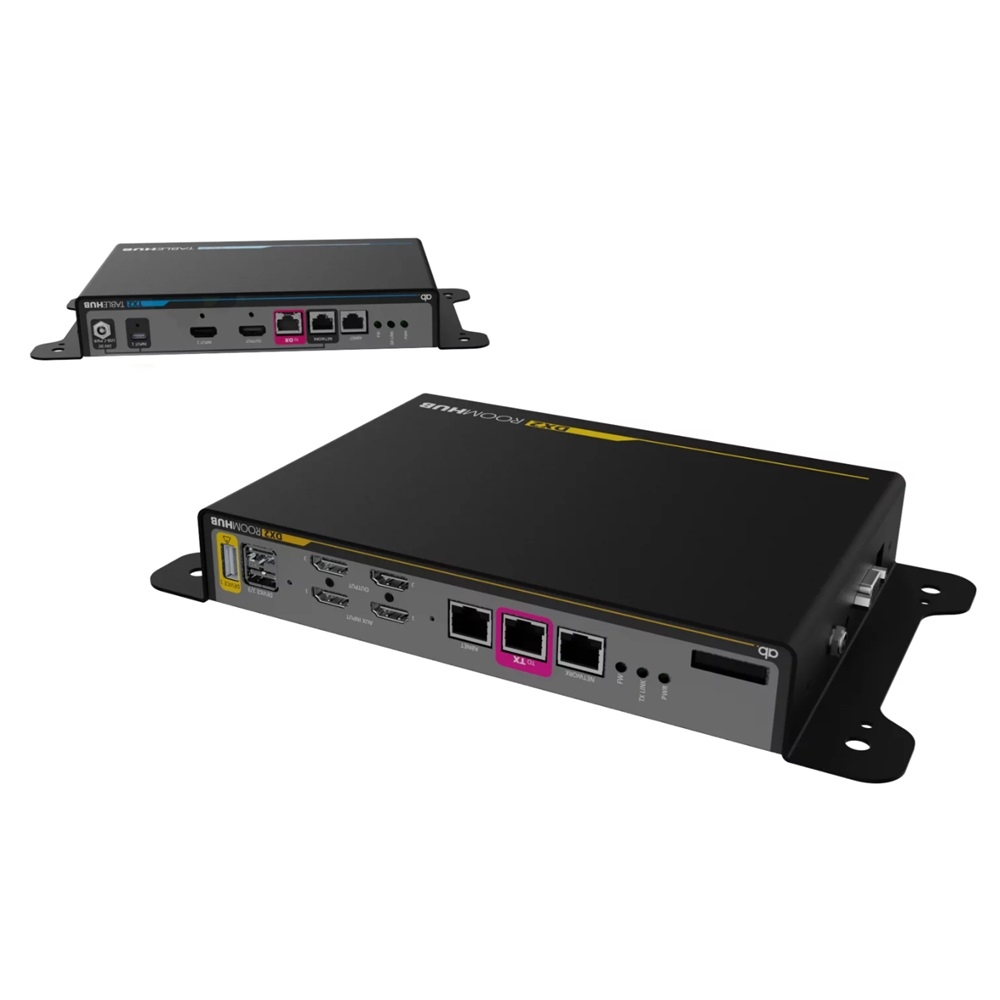

A complete meeting room solution in two boxes
Hotline: 0918 642 886
Ashton Bentley TX2 Table Hub & DX2 Room Hub Meeting Room AV Kit
The TX2 Table Hub can be installed under a table, in a lectern or wherever connection to laptops is required.
The DX2 Room Hub can be located near the display or where the Video Bar or VC equipment is located.
The two boxes are linked with a single Cat6a/Cat7 cable, which can be up to 35m.
Simple to install, with minimal cabling.

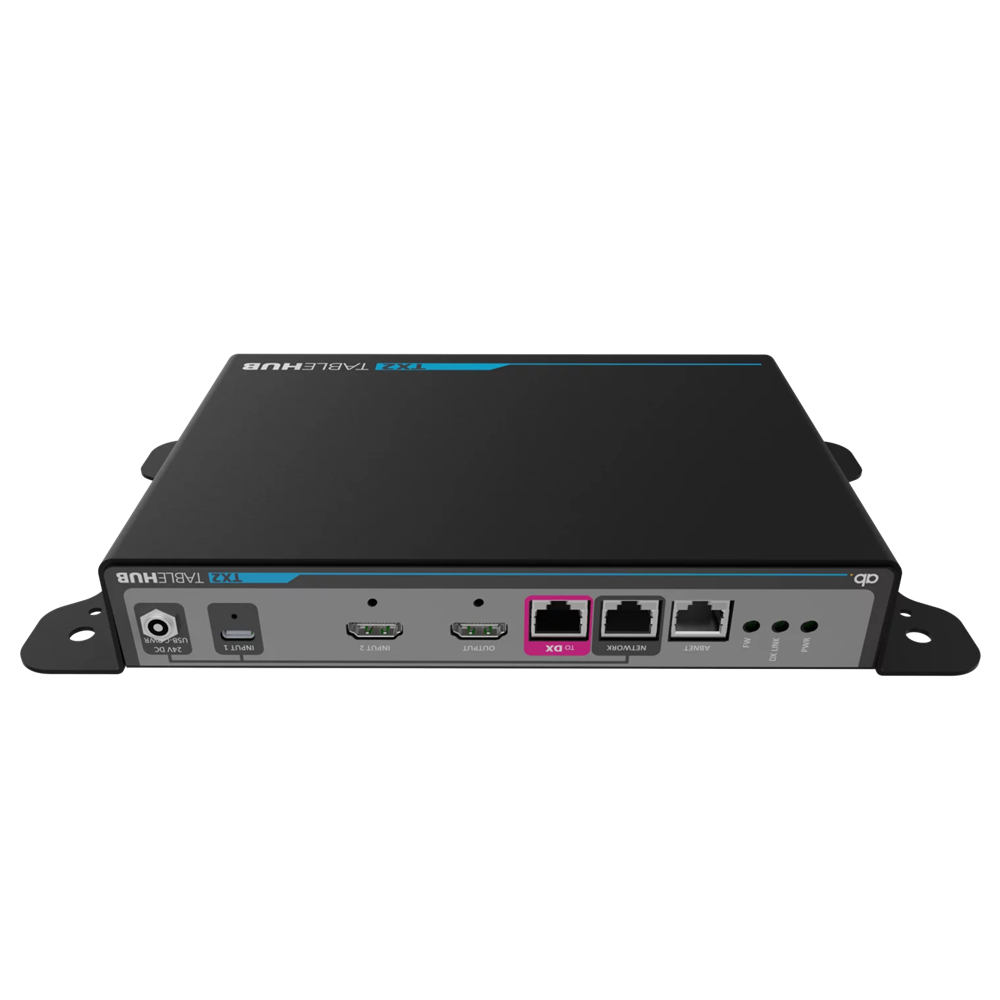

TX2 Table Hub.
USB-C & HDMI Laptop input connectivity at the table.
USB-C laptop 100W charging.
Extend inputs from table to display/VC
• Fully featured USB-C and HDMI connectivity with input signal sensing
• 4K 60Hz 4:4:4 uncompressed video routing & transmission
• Independent EDID control of each input
• HDCP support or blocking
• Independently scalable HDMI output port for local monitor or content ingest
• Network port through to USB-C device
• USB 2.0 with up to 350 Mbit/s data rate
• ABNET bus connection for AB Tablebox Touch Panel
• Powered from DX2 via Cat6A/Cat7 link cable
• Optional USB-C laptop charging (100W)

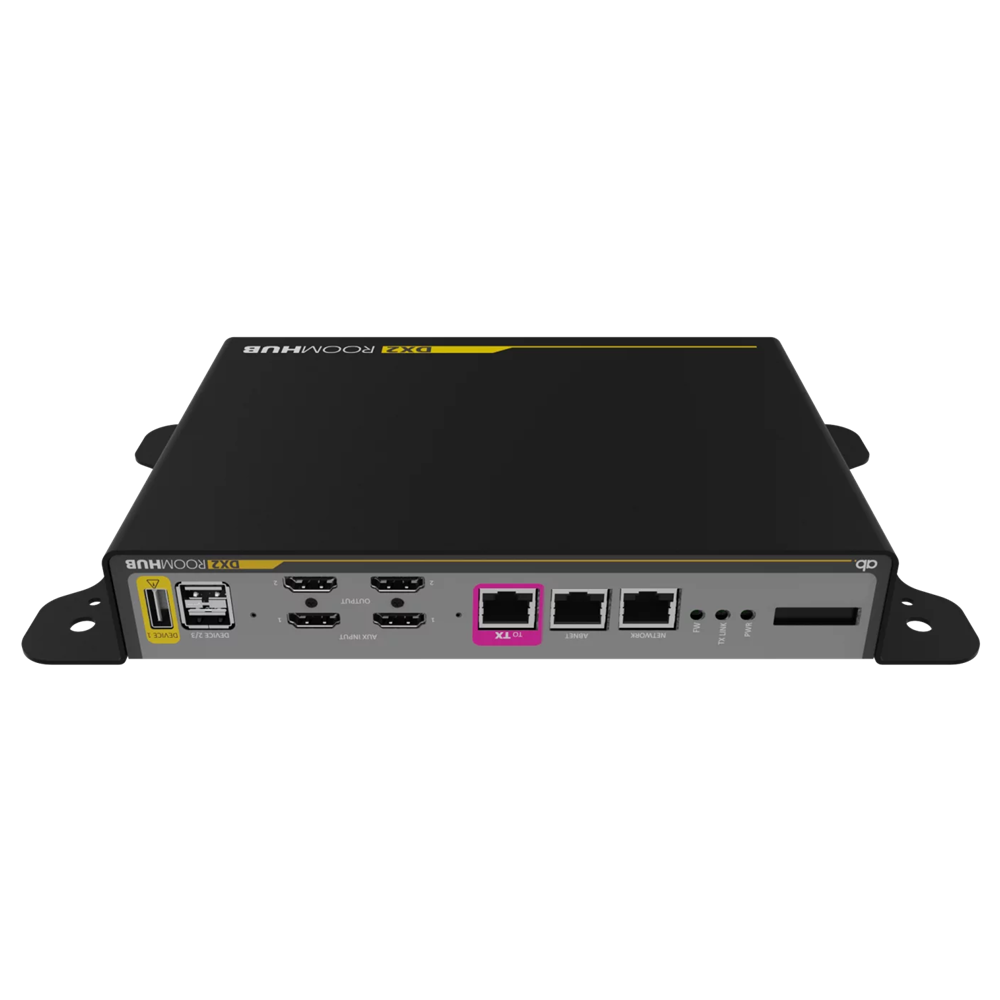

DX2 Room Hub.
Room AV system: signal routing & management, VC integration, display control and monitoring.
Supports either Bring Your Own Device (BYOD) mode, VC engine, or both.
On-board processor monitors all functionality and connectivity with data available for 3rd party management platforms to simplify maintenance and support.
• 4K 60Hz 4:4:4 uncompressed video routing & transmission
• Cat6a/Cat7 link to TX2 (Video/Audio/USB/Control)
• Configuration/control via built-in Webserver GUI
• 2 Auxiliary HDMI Inputs with signal sensing
• 2 independently scalable HDMI output ports
• Independent EDID control of each input
• HDCP selectable for each input
• 3 USB device ports, 2 with configurable power control
• ABNET for connection of AB peripheral devices
• Programmable CEC & RS232 display control
• Programmable Cisco codec control port
• Programmable RS232 3rd party control system port
• OLED status display

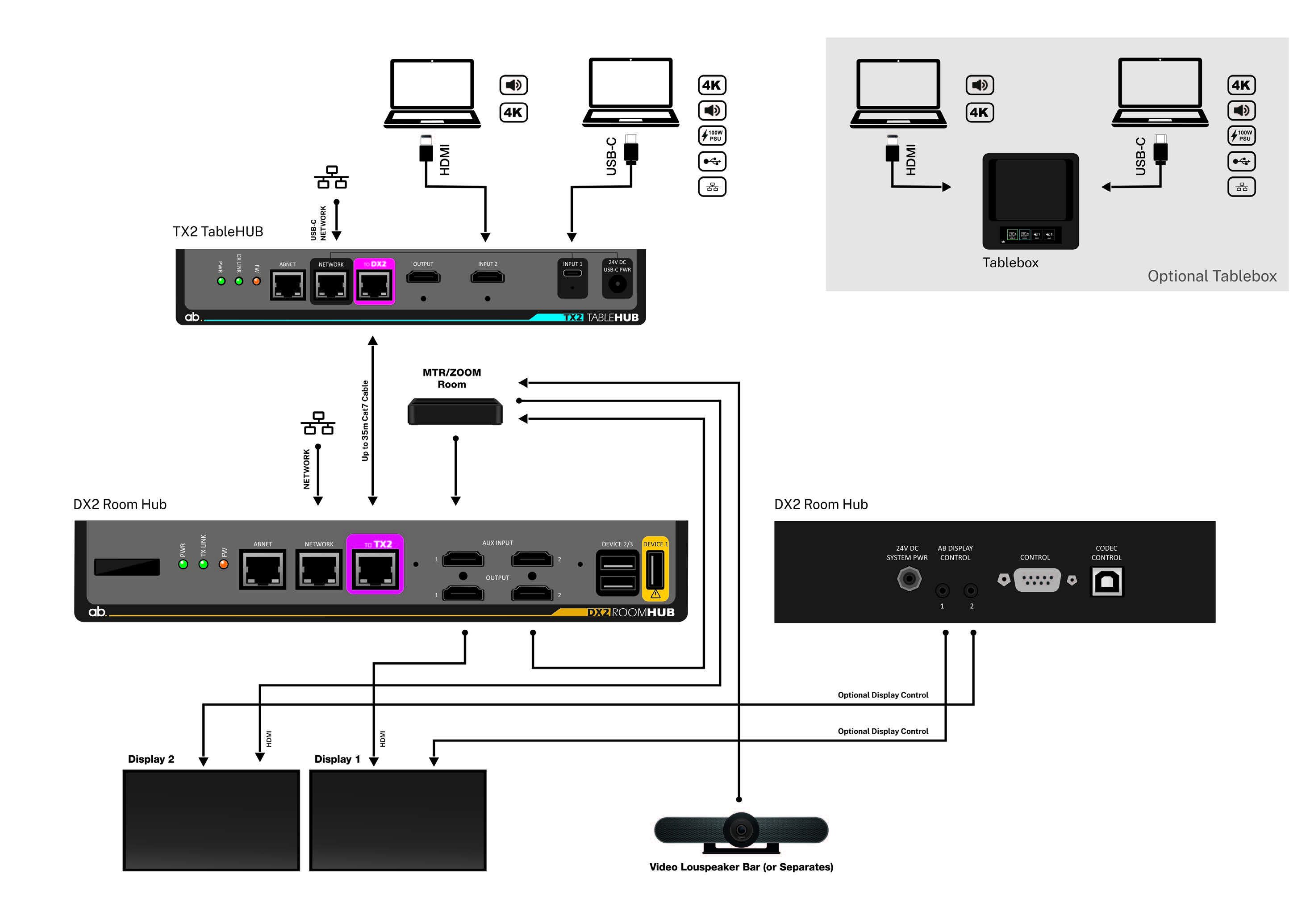

Application Example - VC Dual Display System – MTR/Separates
TX2 Table Hub – Technical.
Video Matrix
• Maximum Pixel Clock Frequency Range: 600 MHz
• Video Resolution: up to 4K2K@60 4:4:4 8 bit
• Compliant to HDMI 1.4 and HDMI 2.0 specifications
• Supports HDCP 1.4/2.2 (can be disabled if needed)
• Output to DX2 via single Cat6a/Cat7 cable
Video Inputs
• 1 x HDMI
• 1 x USB-C
• Inputs have integrated equaliser for improved signal integrity
• Signal auto sensing on all inputs
• HDCP can be disabled, to remove HDCP issues with VC codecs
• EDID can be selected from presets or copied from connected display via the built-in System Configurator setting page.
Video Output
• 1 x HDMI
• Output routing is configurable in System Configurator to be either HDMI or USB-C video.
• Output switching can be automatic (on connecting a source) or manual via the Tablebox touch panel
HDMI:
• Up to 4K @ 60 Hz 4:4:4 8 bit uncompressed HDMI 2.0 video/audio
• Supports HDCP 2.2 (Can be disabled if needed)
• 16 Gb/s video data output to DX2
USB-C:
• Up to 4K @ 60 Hz 4:4:4 8 bit uncompressed HDMI 2.0 video/audio
• USB Power delivery 2.0 (Device charging up to 20v @5 A (100 W)) – Requires optional USB-C Charging Power Supply (Part No. 900-00585) USB 2.0 with up to 350 Mbit/s data rate
• Integral USB-C to 10/100/1000BaseT Ethernet port
Audio
• HDMI embedded audio
Control
• ABNET™ expansion bus for Tablebox Touch Panel’
Power
• Powered by POC from DX2 unit
• USB-C power provided by local 24v 5A PSU - Requires optional USB-C Charging Power Supply (Part No. 900-00585)
Environmental
• Operating Temperature Range 0 – 45 degrees C
• Operating Humidity 10% to 90% non condensing
DX2 Room Hub - Technical Overview.
Video Matrix
• Maximum Pixel Clock Frequency Range: 600 MHz
• Video Resolution: up to 4K2K@60 4:4:4 8 bit
• Compliant to HDMI 1.4 and HDMI 2.0 specifications
• Supports HDCP 1.4/2.2 (can be disabled if needed)
• Input from TX2 via single Cat6a/Cat7 cable
Video Inputs
• 2 x AUX HDMI
• Inputs have integrated equaliser for improved signal integrity
• Signal auto sensing on all inputs
• HDCP can be disabled, to remove HDCP issues with VC codecs
• EDID can be selected from presets or copied from connected display via the built-in System Configurator setting page.
Video Output
• 2 x HDMI
• Output routing is configurable in System Configurator to be either TX2 signals or local signals
• Output switching can be automatic (on connecting a source) or manual via the Tablebox touch panel
HDMI:
• Up to 4K @ 60 Hz 4:4:4 8 bit uncompressed HDMI 2.0 video/audio
• Supports HDCP 2.2 (Can be disabled if needed)
• 16 Gb/s video data input from TX2
USB:
• USB 2.0 passthrough from USB-C host on TX2™
• 2 USB device ports with power switching
• 1 USB device port without power switching Ethernet
• Integral 100BaseT Ethernet switch with interfaces for:
• System Configurator
• Remote management
• Telnet
• Codec control Audio
• HDMI embedded audio Control
• ABNET port for AB peripherals’
Power
• Powered by an external locking 24v (64.8W) power supply (supplied)
• Supplies POC to power TX2 unit (An optional USB-C Charging Power Supply (Part No. 900-00585 is needed for USB power delivery on the TX2)
Environmental
• Operating Temperature Range 0 – 45 degrees C
• Operating Humidity 10% to 90% non condensing
