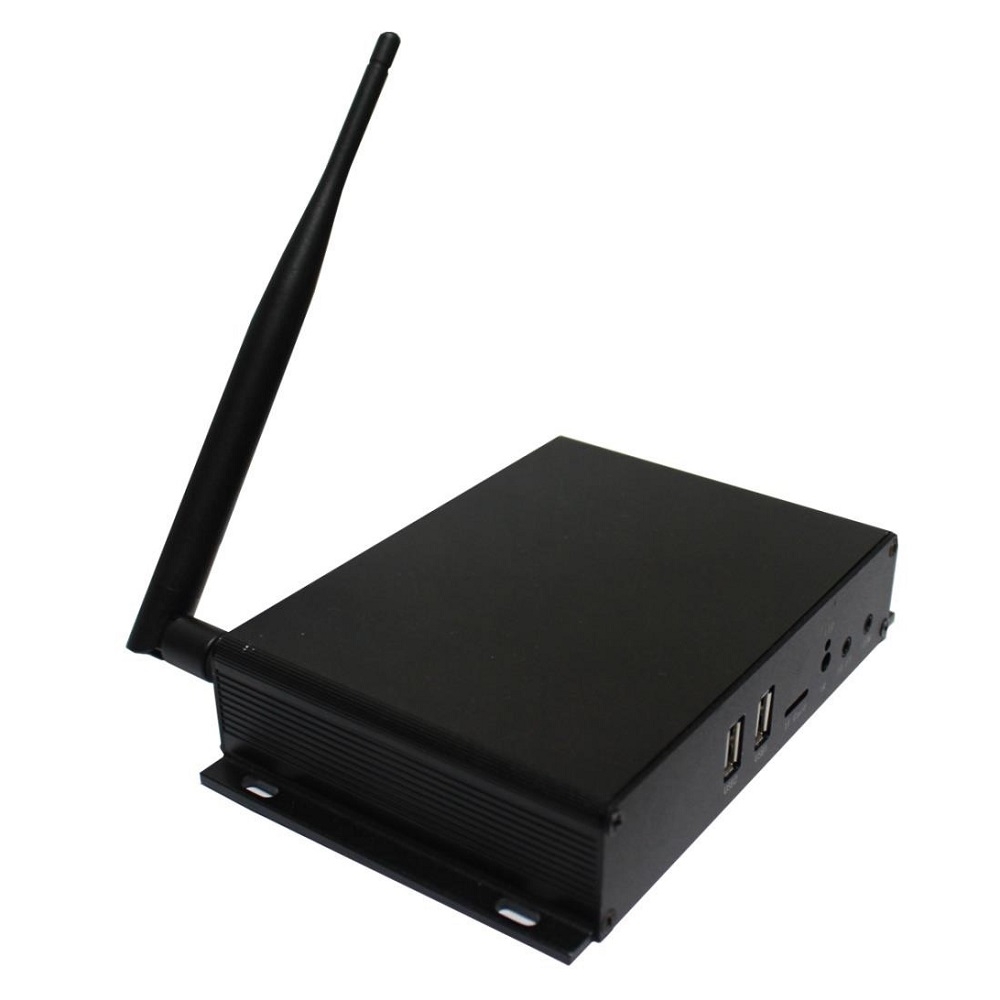

Touch Digital Signage Player DigiJupiter DJP-E10

Hardware Configuration

Board

Rockchip RK3188 + ARM Quad Cortex A9 1.8 GHz CPU + ARM Quad

Mali-400 MP GPU + HYNIX/SAMSUNG DDR3 1Gbyte (2Gbyte for option) + HYNIX/SAMSUNG NAND FLASH 8GB

Resolution

1080P Full HD

Features

OS

Android 4.2.2

Contents

Video/Image/Text/logo/Date/Time/Weekday/Weather split-screen displayed； Support background image

Playback

1) Contents are obtained via network and stored in local disk for playback on a loop, at a specified time or idle hours, or as instant break-ins.

2) Contents are imported from a USB disk.

3) Play contents stored in a USB disk.

Content Management

1) CDMS (B/S architecture) - customized templates, scheduled publish, scheduled playback, bi-directional MD5 encryption, Multi-level audits, grouped players, real-time monitoring, remote control, timed on/off, timed download, traffic control, rights control, log statistics

2) ADPE/EzPoste (C/S architecture) – program compile, schedule arrangement, export to a USB disk, bi-directional encryption, timed on/off

NOTE: The player control software is required for these features.

Media Formats

Media Formats

Support mainstream media formats, including MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv, MP3, JPG, JPEG, BMP, PNG, GIF

Interfaces

Power Supply

×1

Video Outputs

VGA×1 HDMI×1 AV x1

LAN

×1，10/100M Ethernet

Wifi

x1

USB2.0

USB OTG×1（can be used as HOST） USB HOST×2 (one of which is

optional)

IR

×1

TF Card Slot

×1

Optional

RS232 x1 SPI/UART x1（Software configured） 3.5mm optional IR

extension receiver x1

Other Features

RTC

Real Time Clock for time synchronization

Watch Dog

WDT circuit included for auto recovery from failure

Electrical Parameter

Input Power

5V---2A DC

Dimensions

Dimensions

L155.5 mm×W34 mm×H100mm
