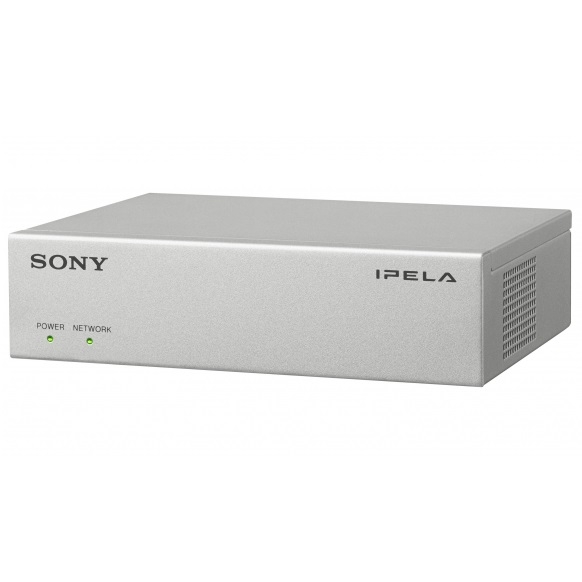

Sony HD Multipoint Control Unit (MCU) System PCS-MCS1

SONY PCS-MCS1

Communication Protocol Standards

H.261*2, H.263, H.263+, H.263++, H.264, H.264 High profile, MPEG-4 SP@L3

NETWORK

Protocols

TCP/IP, UDP/IP, DHCP, DNS, HTTP, TELNET, SSH, SNMP, NTP, ARP, RTP/RTCP

QoS (Quality of Service)

Adaptive FEC (Forward Error Correction), Real-time ARQ (Auto Repeat reQuest), ARC (Adaptive Rate Control)

Others network features

NAT, IP Precedence/DiffServe, UDP Shaping, TCP/UDP Port Setting, Auto Gatekeeper Discovery, Packet Reordering, URI Dialing

VIDEO STANDARD

Resolution (4:3)

QCIF (176 x 144), CIF (352 x 288), 4CIF (704 x 576)

Resolution (16:9)

wCIF/w288p (512 x 288), w432p (768 x 432), w4CIF (1024 x 576), 720p (1280 x 720), 1080i (1920 x 1080)

Maximum Frame Rate

H.261 QCIF 30 fps, CIF 30 fps; H.263 QCIF 30 fps, CIF 30 fps, 4CIF 30 fps; H.264 QCIF 30 fps, CIF 30 fps, 4CIF 30 fps, wCIF 30 fps, w432p 30 fps, w4CIF 30 fps, 720p 60 fps, 1080p 60 fps

Bit Rate

64 kbps to 16,000 kbps

Screen Layout

Full Screen, PinP, PandP, SideBySide, PandPandP

Other Features

Stereo echo-cancelling (ON/OFF), Auto Gain Control, Noise Reduction

AUDIO STANDARD

Bandwidth and Coding (MPEG-4 AAC Stereo)

22 kHz at 192 kbps (IP only)

Bandwidth and Coding (MPEG-4 AAC Mono)

14 kHz at 48 kbps, 64 kbps, 96 kbps

Bandwidth and Coding (MPEG-4 AAC Mono)

22 kHz at 64 kbps, 96 kbps (IP only)

Bandwidth and Coding (G.711)

3.4 kHz at 56 kbps, 64 kbps

Bandwidth and Coding (G.722)

7.0 kHz at 48 kbps, 56 kbps, 64 kbps

Bandwidth and Coding (G.728)

3.4 kHz at 16 kbps

Multipoint Capability

Up to 9 sites (H.323) with optional software PCSA-MCG109. (6 sites with H.320), 10 to 16 sites (H.323) requires two PCS-XG100S units with optional software PCSA-MCG109 using cascaded connection. (10 sites with H.320)

Data Sharing

PC images up to 1080p resolution is supported.Video annotation function is available.

Lip Synchronization

AUTO/OFF

Streaming/Recording Feature

Video: 512 kbps to 1 Mbps (2-step), Audio: 64 kbps

INTERFACE

Video input

External video inputs (HDMI x 1, DVI-I x 2)

Video output

HDMI x 2, DVI-I x 1

Control Input

RS-232C x 1

Audio input

External analog microphone input Mini-jack (Plug in power) x 2 (L/R) Audio Input (MIC/AUX) x 1 (RCA pin, stereo)

Audio output

Headphone Output (Mini, Stereo) x1, REC Output (Pin, Stereo) x1

Network Port

10BASE-T/100BASE-TX x1, ISDN Unit Interface x1

Control

RS-232C

Maintenance Interface

RS-232C x 1

Others

USB x 2 (Pen Tablet, USB Memory)

STANDARDS

Communication Protocol Standards

ITU-T H.320, H.323, IETF SIP

ITU-T (exclude audio/video standards)

H.231, H.241 H.242, H.243, H.245, H.350, H.460.18, H.460.19

IETF

RFC2190, RFC3016, RFC3047, RFC3261, RFC3264, RFC3550, RFC3984, RFC4573, RFC4587, RFC4629, RFC4856, RFC4628, RFC5168

Encryption

H.233, H.234, H.235 ver.3

Far End Camera Control

H.224, H.281

Frame Format

H.221, BONDING, H.225.0

Dual Stream

H.239 (video and presentation data)

GENERAL

Operating temperature

5 to 35 °C (41 to 95 °F)

Operating humidity

20 to 80%

Storage temperature

-20 to 60 °C (-4 to 140 °F)

Storage humidity

20 to 80%

Power requirements

DC 19.5 V (AC Adapter: AC 100 to 240 V, 50/60 Hz)

Power consumption

58.5W (23.4W, Standby)

Dimensions (W x H x D)

Approx. 370 x 60 x 244 mm (excluding protrusions), Approx. 14 5/8 x 2 3/8 x 9 5/8 inches (excluding protrusions)

Mass

Approx. 2.3 kg
