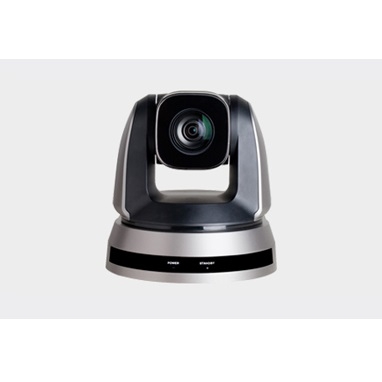

KEDACOM HD200E High Definition Video Conferencing Camera
Mô tả ngắn
Equipped with a 1/2.8 HD CMOS sensor, the HD200 can provide outstanding picture quality and 1920X1080high resolution images
Hotline: 0918 642 886
Superb Picture Quality
-
Equipped with a 1/2.8 HD CMOS sensor, the HD200E can provide outstanding picture quality and 1920X1080high resolution images.
High Signal and Noise Ratio
-
HD200E can provide more clear pictures in low illumination environment because of its high S/N ratio.
240X Room Ratio
-
(20X Optical + 12X Digital)
-
The fast and stable auto focus zoom lens has an impressive 240x zoom ratio.
Stable and Smooth Videos
-
With the original electronic anti-shake technology, the HD200E makes the moving picture smoother.
Multi-Format Video Outputs
-
The HD200E supports almost all HD video formats from SD NTSC/PAL to 1080P@60fps.
High-Quality Transmission
-
With the 3G-SDI, the HD200E can transmit the original HD images for a long distance without A/D D/A conversion; it also support DVI-I, which makes it works with almost all types of codecs that are equipped with HDMI or YPbPr interface since it’s DVI-I is compatible with HDMI and YPbPr.
Daisy-Chaining Control
-
Up to 7 cameras can be controlled by daisy-chain line with VISCA protocol.
Position Presets
-
The HD200E can preset values for pan/tilt/zoom, focus position, exposure mode, and white balance mode and can even retain these settings when the camera is shut off.
|
Image Sensor |
1/2.8 HD CMOS |
|
Horizontal View Angle |
4.8°~60° |
|
Tilt |
-30°-90° |
|
Pan |
-170°-+170° |
|
Effective Pixels |
Approximate 2 megapixels |
|
Electronic Anti-Shake |
The original electronic anti-shake technology can make the moving pictures/images smoother. |
|
Video Output |
HD: 3G-SDI |
|
Video Signals |
1080p@60fps |
|
Minimum Illumination |
5lux |
|
Focus System |
Auto, Manual |
|
Exposure Control |
Auto exposure |
|
Shutter Speed |
1/1~1/10000s |
|
White Balance |
Auto |
|
Control Ports |
RS-232 (VISCA), RS422 (VISCA) |
|
Lens |
20X optical |
|
S/N Ratio |
>50dB |
|
Image Flip |
Ceiling installation supported |
|
Color |
Dark grey |
|
Electricity |
Power supply: DC 12V (10.8~13.2V)@1.6A |
|
Operating Environment |
Operating temperature: -0°C-45°C |
|
Physical Characteristics |
Dimensions: 174 × 186 × 183 mm (L x W x H) |
