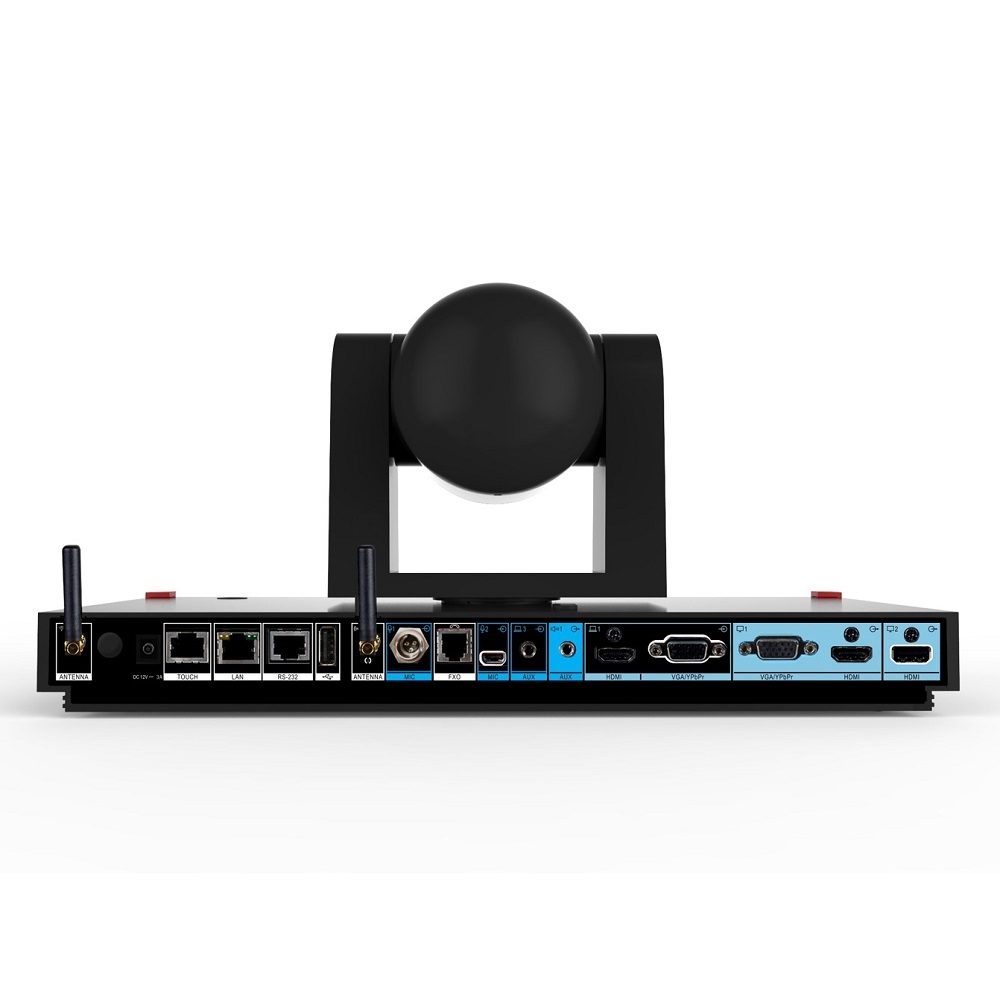

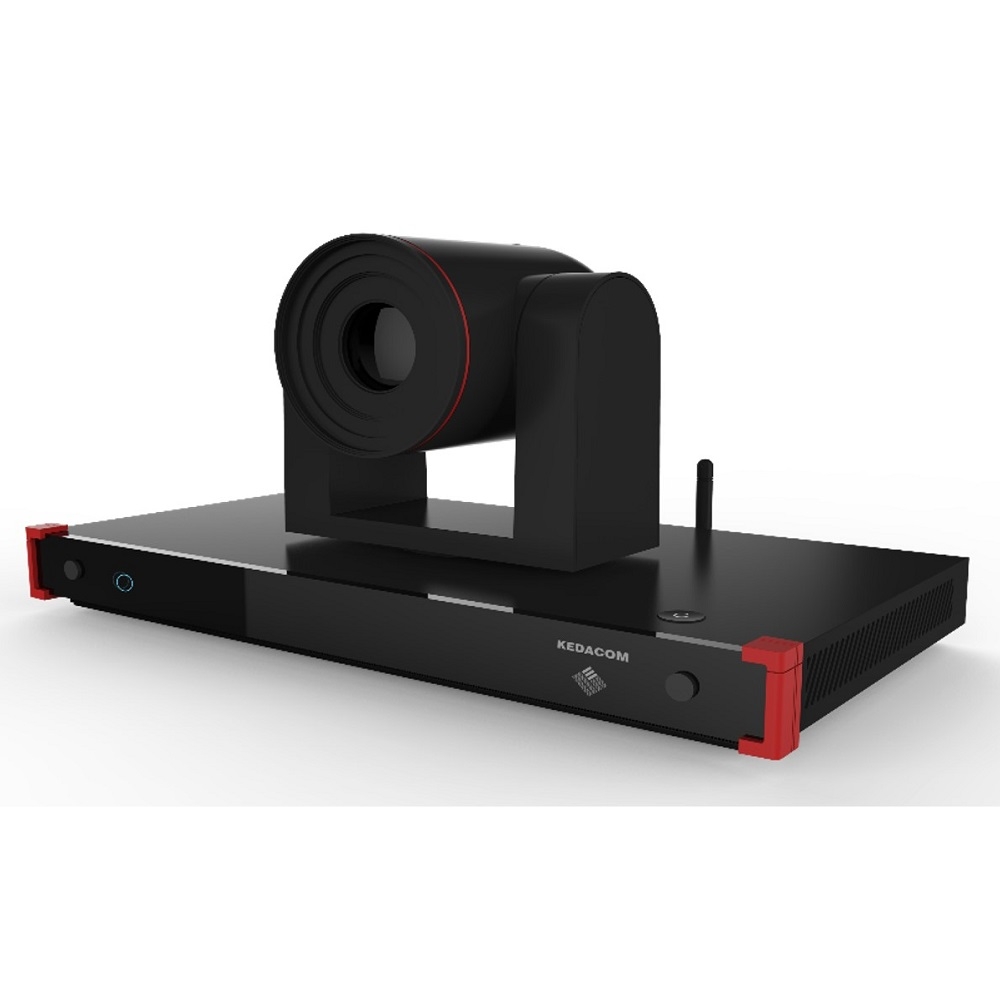

KEDACOM SKY 310 All-In-One Video Conferencing Endpoint
KEDACOM SKY 310 All-In-One Video Conferencing Endpoint

KEDACOM SKY 310 All-In-One Video Conferencing Endpoint

Mô tả ngắn

SKY 310 All-In-One Video Conferencing Endpoint
Integrated codec, PTZ HD camera and mic
USB configuration, easy to install, use and maintain
12x / 5x optical zoom, 1080p HD video
Supports H.265 protocol, consumes less bandwidth, 384Kbps to achieve 1080p resolution encoding and decoding

liên hệ mua hàng
Hotline: 0918 642 886

KEDACOM SKY 310 All-In-One Video Conferencing Endpoint



All-In-One design, Plug and Play

Integrated codec, PTZ HD camera and mic

USB configuration, easy to install, use and maintain

Support TV / wall / upside-down mount

Optional wireless casting transmitter, one press to cast the PC content on display or to remote conferencing

ZigBee remote control, 360° control



Professional audio and video processing, High-end audio-visual experience

12x / 5x optical zoom, 1080p HD video

Excellent ISP algorithm, optimize the video effect especially under low illumination conditions

Built-in mic, 6m audio pickup, AEC / ANS / AGC process, wideband audio protocol



Excellent network adaptability and security mechanism

Supports H.265 protocol, consumes less bandwidth, 384Kbps to achieve 1080p resolution encoding and decoding

Supports Intelligent Packet Loss Recovery, dynamic rate adjustment, automatic QoS setting, forward error correction and other network optimization mechanisms, which can fully optimize the video communication effect in the congestion network environment

Standard H.460 for NAT and firewall traversal

Multiple encryption mechanism: H.235 conference encryption, 256 bit AES encryption, TLS and SRTP protocol, User authentication and role-based authorization, etc.



Open, converged, High interoperability

Standard H.323 / SIP, interoperable with standard endpoints and infrastructures from third-party mainstream vendors

Provide API, implementing flexible integration with third-party platforms


SKY 310

Sub Models

1080P30-12x-W

1080P30-12x

1080P30-5x-W

1080P30-5x

System Standards

H.323, SIP
H.225, H.235, H239, H.245, H.281, H.460

Video Standards

H.264, H.264 High Profile, H.265

Audio Standards

G.711, G.719, G.722, G.722.1 Annex C / Polycom Siren14TM, G.728, G.729, MPEG4-AAC (LC / LD), Opus

Network Protocols

TCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP, PPPoE, 802.11a/b/g/n/ac

TCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP, PPPoE

TCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP, PPPoE, 802.11a/b/g/n/ac

TCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP, PPPoE

IP Protocols

IPv4 and IPv6 dual stack

Conference Bitrate

64Kbps ~ 8Mbps

Video Resolution

Video:
1080p (1920 x 1080), 720p (1280 x 720), W4CIF (1024 x 576), 4CIF (704 x 576), WCIF (512 x 288), CIF (352 x 288)
Content:
1080p (1920 x 1080), 720p (1280 x 720), UXGA  (1600 x 1200), WSXGA+ (1680 x 1050), WSXGA (1440 x 900), SXGA (1280 x 1024), WXGA (1280 x 800), XGA (1024 x 768)

Encode Capacity

1080p30 + 1080p30

Decode Capacity

1080p60 + 1080p60

Built-in Camera

Optical zoom: 12x
Sensor: 1 / 2.8" CMOS, 2 MP
Horizontal view Angle: 72.5°
Pan range: ±170°
Tilt range: -90° ~ +50°, -90°  standby (Exclusive design)
Adjustable camera parameter
Automatic White Balance (AWB), Automatic Exposure (AE), Automatic Focus (AF)

Optical zoom: 5x
Sensor: 1 / 2.8" CMOS, 2 MP
Horizontal view Angle: 72.5°
Pan range: ±170°
Tilt range: -90° ~ +50°, -90°  standby (Exclusive design)
Adjustable camera parameter
Automatic White Balance (AWB), Automatic Exposure (AE), Automatic Focus (AF)

Video Features

Single screen dual / triple-display
Adjustable video parameter
VGA  loopback when power off
Supports camera preset snapshot and preview

Audio Features

Sampling frequency: 48 kHz
Acoustic Echo Cancellation (AEC)
Acoustic Noise Suppression (ANS)
Automatic Gain Control (AGC)
Automatic lip synchronization
Mute and dumb

Dual-stream

H.239 / BFCP
Adjustable bandwidth ratio
Wireless content sharing by SkyShare software or NexPresence transmitter

Network Features

Embedded proxy for NAT / firewall transversal
Intelligent Packet Loss Recovery (IPLR)
Forward Error Correction (FEC)
DiffServ, IP Precedence (Quality of service [QOS])
IP conflict detection
Automatic PPPoE redial
Dynamic rate adjustment

OSD Caption / Logo / Banner

Configurable OSD caption / logo / banner
Local images and custom text can be set as OSD logo / banner
OSD caption can be sent as short messages to endpoints or multipoint control units
OSD caption can be scrolled
Configurable OSD banner background color, font sizes and fonts

Security Features

Embedded OS
H.235 conference encryption
256 bit AES encryption
TLS and SRTP protocol
Conference password authentication
User authentication and role-based authorization
Advanced setting authentication
Gateway password-protected
HTTPS
Physical privacy protection, camera turns -90° while standby (Exclusive design)

Management Methods

Remote control
Web interface
OLED display screen on the device

Maintenance Functions

Event logs can be managed
Factory settings restoration
Loop / image / audio tests
Real-time video / audio bitrate display
Address book and configuration file importing / exporting

Conference Functions

Point-to-point / multiple conferences
Join-in conference / administrator / speaker / chime-in request
Calling by E.164 ID, alias and IP addresses

Video Interfaces

Input: 1 x Built-in camera
1 x VGA, 1 x HDMI (dual stream, choose 1 from 2)
Output: 1 x VGAr, 1 x HDMI  (same output)
1 x HDMIl

Audio Interfaces

Input: Built-in mic
1 x mini XLR, 1 x Digital mic, 1 x 3.5mm, 1 x wireless mic (-W model)
1 x HDMI support audio
Output: 1 x 3.5mm, 2 x HDMI support audio

Control Interfaces

1 x RS232
IR / ZigBee remote control

Network Interfaces

1 x 10 / 100 / 1000M Ethernet, RJ45 interface
Built-in WIFI module

1 x 10 / 100 / 1000M Ethernet, RJ45 interface

1 x 10 / 100 / 1000M Ethernet, RJ45 interface
Built-in WIFI module

1 x 10 / 100 / 1000M Ethernet, RJ45 interface

Other Interfaces

1 x USB 2.0 (USB configuration, USB recording)
1 x FXO
1 x TOUCH

Environmental

Operating temperature: 0°C ~ 45°C / 32℉ ~ 113℉
Operating humidity: 10% ~ 90%
Atmospheric pressure: 70 ~ 106 kPa

Electrical

Power: DC 12V
Power consumption: Max. 48W

Mechanical

Net weight: 3.87kg / 8.53lb
Package weight: 8.5kg / 18.74lb
Endpoint dimensions: 195 x 375 x 205mm / 7.68" x 14.76" x 8.07"
Package dimensions: 350 x 515 x 365mm / 13.78" x 20.28" x 14.37"
Download
