Camera Telycam Drive+ 4KN
Mô tả ngắn
4K Ultra HD resolution
35x optical zoom
NDI ®|HX/ 3G-SDI/HDMI/USB3.0 Available
Embed the Latest NDI ®|HX 5.5 SDK
RTMP/RTSP supported
SRT supported
Program and Preview Tally
Built in professional level audio in for line in input.
Power over Ethernet
Hotline: 0918 642 886

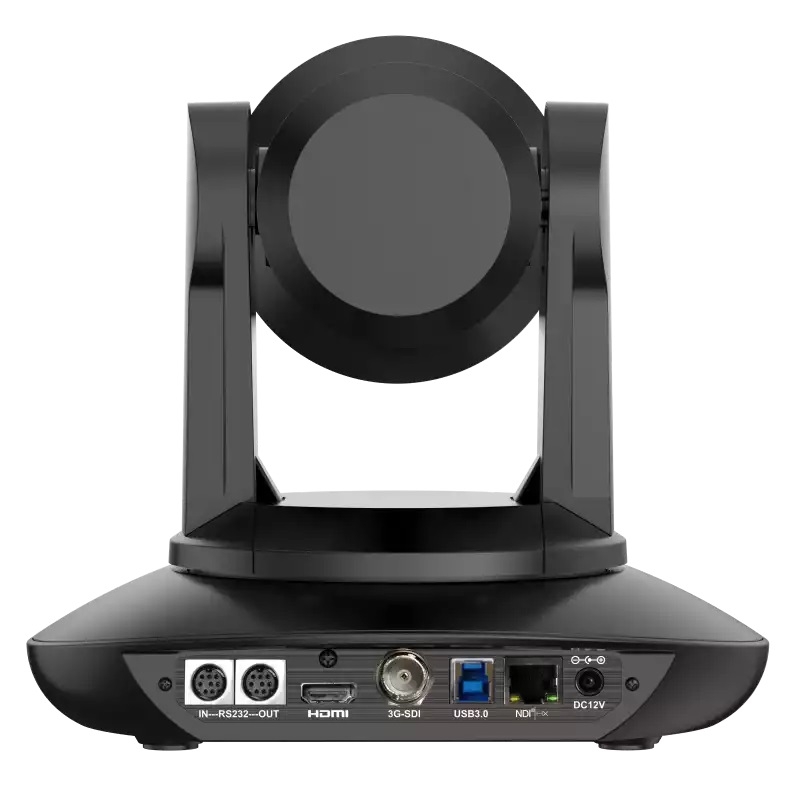

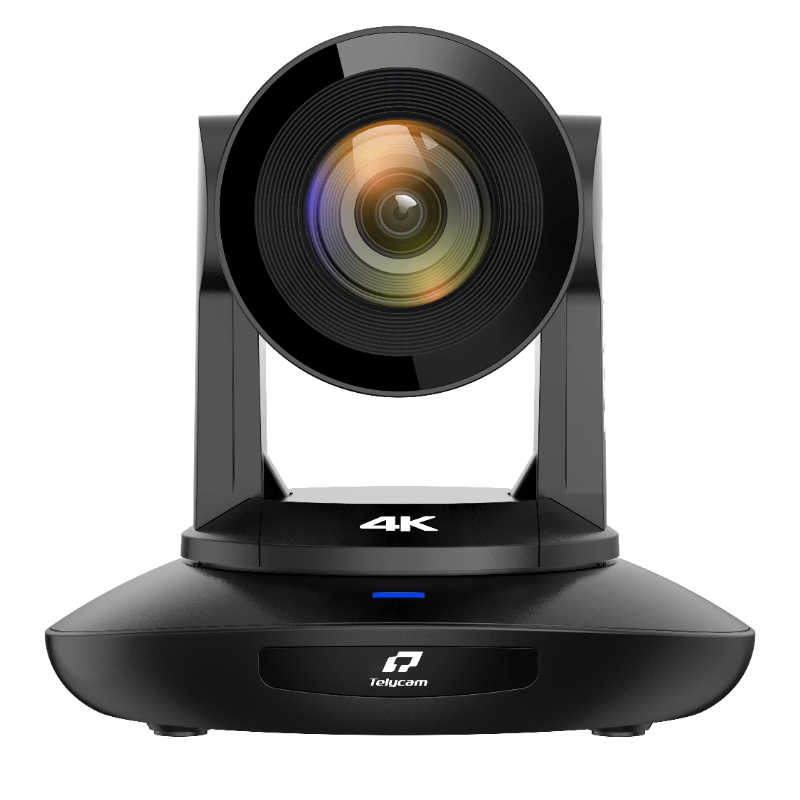

Camera Telycam Drive+ 4KN TLC-700-IP-35-4K(NDI)
4K&HD resolution
Drive+4KN 35X features a state-of-the-art image processor, 1/1.7-inch 12-megapixel sensor, and outputs an ultra-high-definition video resolution of 3840*2160 p30 to display clear, sharp, and lifelike images to users, even in low-light working environments.
35x optical zoom
It shoots with a 4K 35x optical zoom lens with a 60-degree field of view, and a proprietary focusing algorithm enable fast and precise focus performance when zooming or moving, to capture every detail of the scene.
3G-SDI/HDMI/USB3.0 Available
In addition to NDI ®|HX, 3G-SDI, HDMI and USB3.0 output image simultaneously as well. 3G-SDI and HDMI are for conventional video production workflow, and USB output can be used as a high-end webcam.
Smooth and Quiet PTZ Movement
Perform real-time pan, tilt, and zoom camera movements with motor-driven PTZ camera control and configurable preset positions. Focus, white Balance, exposure, iris can be adjusted automatically or manually. 128 presets supported; Exposure parameter and white balance parameter can be saved in presets (in manual mode).
Embed the Latest NDI ®|HX SDK
Newtek’s NDI® creates a plug-and-play environment for various products and platforms in live streaming, making it possible to produce abundant and diverse live content.
|
Camera |
Drive+ 4KN 35X |
|
Part NO. |
TLC-700-IP-35-4K(NDI) |
|
Sensor |
1/1.7 inch, 12MP UHD CMOS Sensor |
|
Zoom |
35X optical zoom |
|
Lens |
f = 5.8mm ~ 203 mm, F1.5 ~ F4.8 |
|
Horizontal View Angle |
60°(Wide) ~ 2.02°(Tele) |
|
Vertical viewing angle |
45.32° ~ 1.51° |
|
Diagonal viewing angle |
70.0° ~ 2.51° |
|
Minimum Working Distance |
1.5m |
|
S/N Ratio |
≥50dB |
|
Video Format |
HDMI： 3840*2160P30/25; 1920*1080P60/50/30/25/59.94/29.97/24; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97 |
|
NDI®|HX： 3840*2160@15~30; 1920*1080@15~60; 1280*720@15~60; 1024*576@15~60; 640*360@15~30(low bandwidth mode) |
|
|
3G-SDI： 1920*1080P60/50/30/25/59.94/29.97/24; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97 |
|
|
USB 3.0： 1920*1080P60/50/30/25(USB3.0); 1280*720P60/50/30(USB3.0) 1280*720P25(USB3.0&USB2.0); 1024*576P30(USB3.0&USB2.0); 960*540P30(USB2.0); 640*360P30(USB2.0); 512*288P30(USB2.0) |
|
|
Image Parameters |
|
|
Noise Reduction |
2D&3D |
|
Minimum lux |
0.5Lux (50 IRE Max AGC,1/30, F1.8) |
|
White Balance |
Auto/Manual/Auto tracking/Push/Indoor/Outdoor/Color Temperature |
|
Exposure |
Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority |
|
Anti-Flicker |
OFF,50Hz,60Hz |
|
Image Flip |
Support |
|
Mirroring |
Support |
|
Focus |
Auto/Manual |
|
Iris |
Auto/Manual |
|
Electronic shutter |
Auto/Manual |
|
Gamma |
Support |
|
WDR/BLC |
Support |
|
IP Streaming |
|
|
Video Encoding |
H.264/H.265 |
|
Bitrate Control |
Variable bitrate(VBR), Constant bitrate(CBR) |
|
Bitrate Range |
1024Kbps~61440Kbps |
|
Network Port Speed |
1000M |
|
Protocol |
NDI®|HX,SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP, TCP, UDP, VISCA, PELCO P/D |
|
Pan/Tilt Movement |
|
|
Preset |
Remote controller: 10; Serial port: 128; Accuracy：0.1° |
|
Pan Rotation Angle |
-170° ~+170° |
|
Tilt Rotation Angle |
-30° ~+90° |
|
Pan Rotation Speed |
0.1°~ 120°/s |
|
Tilt Rotation Speed |
0.1°~ 80°/s |
|
I/O Interface |
|
|
Control Port |
RS232, RS485, NDI®|HX, USB3.0 (UVC1.5), USB2.0 (UVC1.1) |
|
Video Port |
NDI®|HX, HDMI, 3G-SDI, USB Type-C |
|
Audio Port |
Dual 3.5mm line in |
|
Tally |
Support |
|
POE+ |
Support |
|
Daisy Chain |
Support |
|
General |
|
|
Input Voltage |
DC12V, POE+(IEEE802.3at) |
|
Power Consumption |
PoE+: IEEE802.3at (Pmax=10W); DC: 12V 2A (Pmax=10W) |
|
Operating Temperature |
-10℃~ 50℃ |
|
Operating Humidity |
≤80% |
|
Color |
Black/White |
|
Dimension（L×W×H） |
220mm×190mm×205.8mm |
|
Net Weight |
1.75kg |
