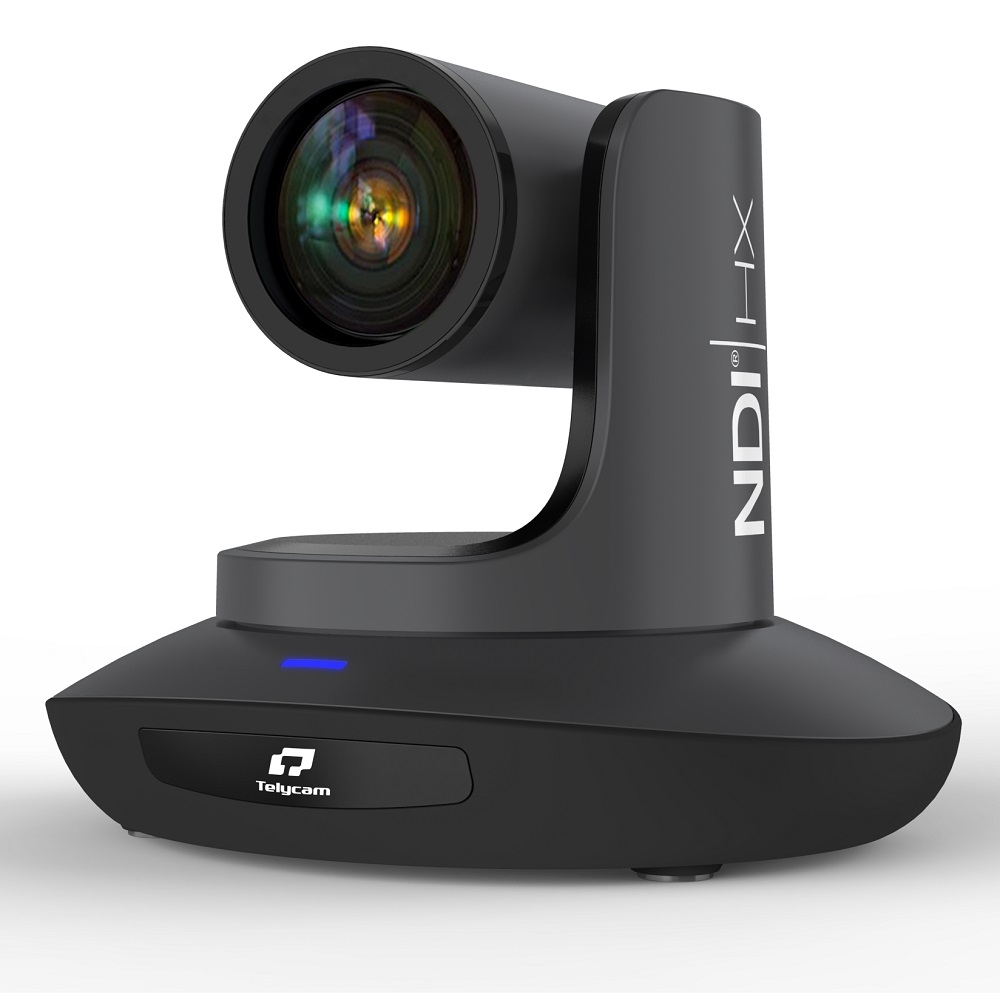

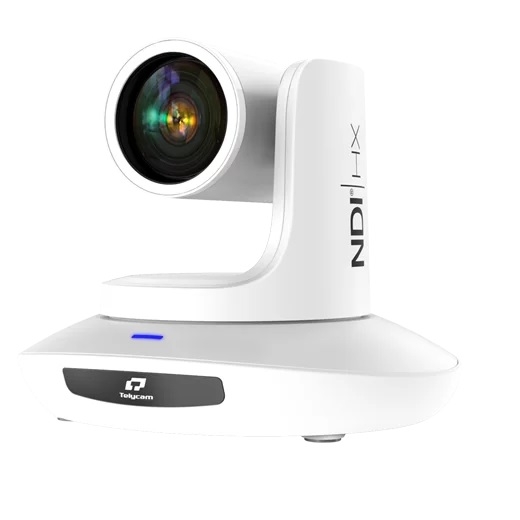

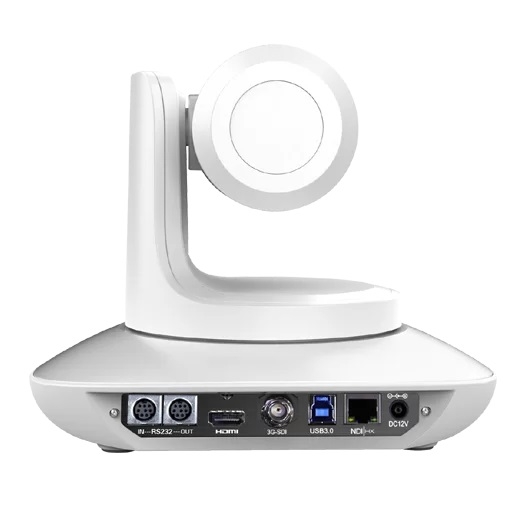

Camera Telycam TLC-300-IP-12-4K NDI
Mô tả ngắn
A professional and affordable 12x 4K Ultra HD PTZ video camera, with NDI, 3G-SDI, HDMI and USB3.0 output interface, used the advanced ISP, 1/2.5 inch 8MP sensor, and 12x optical zoom lens with 72.5 degree field of view, to provide 3840x2160p30 Ultra HD and crisp video with full details.
Hotline: 0918 642 886
Camera Telycam TLC-300-IP-12-4K NDI
TLC-300-IP-12-4K(NDI) is integrated with the latest NDI|HX SDK, 12X 4K HD PTZ video camera, it is equipped with the most advanced image processing solution, 1/2.5 inch 8.5MP sensor, truly 4K lens, to output 4K sharp image.
It has a smooth PTZ mechanical design, to make accurate pan, tilt, zoom movement.
NDI, HDMI, SDI, and USB3.0 simultaneously output 4K and HD resolution, ideal for professional live streaming applications.
|
ModelNumber |
TLC-300-IP-12-4K(NDI) |
|||
|
Sensor |
1/2.5inch8MPCMOSsensor |
|||
|
VideoFormat |
HDMI |
NDI|HX |
SDI |
USB3.0 |
|
3840*2160p30/25, 1920*1080p60/59.94/50/30/29.97/25/24 1920*1080i60/59.94/50, 1280*720p60/59.94/50/30/29.97/25 |
Mainstream 1920*1080@30-15 3840*2160@30-15 Substream: 1280*720@30-15 1024*576@30-15 640*360@30-15 |
1920*1080p60/59.94/50/30/29.97/25/24, 1920*1080i60/59.94/50, 1280*720p60/59.94/50/30/29.97/25 |
USB3.0： 1920*1080p60/50/30/25,1280*720p60/50/30/25, 1024*576p30 USB2.0: 1024*576p30,960*540p30,640*360p30, 512*288p30 |
|
|
Zoom |
12 x optica lzoom |
|||
|
FOV |
6.3°（Near）~72.5°（Far） |
|||
|
IrisNo. |
Wide：1.84Tele：2.81 |
|||
|
MinFocusDistance |
Wide：0.3mTele：1m |
|||
|
NoiseReduction |
2D&3D |
|||
|
S/N |
>50dB |
|||
|
FocalLength |
f＝3.92(Near)～47.32mm(Far) |
|||
|
MinLUX |
0.1LUX |
|||
|
WhiteBalance |
Auto/Manual/Indoor/Outdoor/ATW/ONEPUSH/Sodium/Fluorescent |
|||
|
Focus |
Auto/Manual |
|||
|
Iris |
Auto/Manual |
|||
|
ShutterSpeed |
Auto/Manual |
|||
|
BacklightCompensation |
Auto/Manual |
|||
|
ImageFlip |
Supported |
|||
|
VideoFreeze |
Optional |
|||
|
PanRotationAngel |
Pan:-170°~+170°;Tilt:-30°~+90° |
|||
|
PanRotationSpeed |
Pan:0°~120°/s;Tilt:0°~80°/s |
|||
|
Preset |
128 |
|||
|
ControlPort |
NDI|HX/RS232/RS485/USB3.0 |
|||
|
VideoPort |
NDI|HX,3G-SDI,HDMI,USB3.0 |
|||
|
POE |
Supported,POE+(IEEE802.3at) |
|||
|
Voltage |
DC12V |
|||
|
VideoEncodingStandard |
H.264/H.265 |
|||
|
NetworkSpeed |
1000M |
|||
|
BitRateControl |
VariableBitRate,ConstantBitRate |
|||
|
VideoBitRate |
1024Kbps~51200Kbps |
|||
|
FrameRate |
50HZ:15fps~30fps60HZ:15fps~30fps（3840*2160max30fps） |
|||
|
Protocol |
NDI,TCP/IP,HTTP,RTSP,RTMP,ONVIF,DHCP,VISCAoverIP(UDP&TCP),HTML5 |
|||
|
Dimension（WxHxW） |
220mm×173mm×117mm |
|||
|
NetWight |
1.25KG（2.8Pound） |
|||
Note: When HDMI outputs 4K, NDI outputs 4K, and 3G-SDI&USB3.0 have no image. If you need SDI and USB3.0 output image, the HDMI needs to output 1080p or lower than 1080p resolution.
Sản phẩm liên quan
Camera Telycam Explore 500 4/3" Sensor 4K PTZ Camera for Premium Broadcast Production
Sensor: Sony 4/3” inch 9MP UHD CMOS sensor
Bulit-in ND Filter: Variable ND (1.6%, 6.3%, 25%, 100%)
Zoom: 20x optical zoom
Lens: f = 9.79 ~ 186.5mm, F2.8 ~ F4.5
Horizontal View Angle: 71° (Wide) ~ 4.05° (Tele)
Camera Telycam Explore 300 4/3" Sensor 4K PTZ Camera for Professional Broadcast AV
Sony 4/3” inch 9MP UHD CMOS sensor
20X Optical Zoom
Lens: f=9.79~186.5mm, F2.8~F4.5
Horizontal View Angle: 71°(Wide)~4.05°(Tele)
Telycam Explore 100 1/1.8" Sensor 4K PTZ Camera for Entry-Level Broadcast
Sensor: 1/1.8-inch, 9MP UHD CMOS sensor
30X optical zoom
Lens: f=6.91~214.64mm, F1.35~F4.6
Horizontal View Angle: 63°(Wide)~2.1°(Tele)
Telycam Explore XE 1-Inch Sensor PTZ Camera for Broadcast AV
Part NO. TLC-900-IP-20-4K(NDI)-AB-XE
1 inch, 9MP UHD CMOS sensor
20X Optical Zoom
Lens: f=9.79~186.5mm, F2.8~F4.5
Horizontal View Angle: 71°(Wide)~4.05°(Tele)
S/N Ratio: ≥50dB
