Camera Telycam TLC-800-U3-4K
Mô tả ngắn
1/2.5” 8.5MP CMOS sensor, fixed 4K lens, 120-degree FOV
Max resolution 2160p60 (MJPG/H.264/H.265), 4x electronic zoom
360° Omni-directional, Pickup range is up to 5 meters
Full duplex communication
Microphone: 4pcs Omni-directional microphone
Speaker: 4Ω/8W 100-24KHz 2-inch anti-magnetic horn
Hotline: 0918 642 886

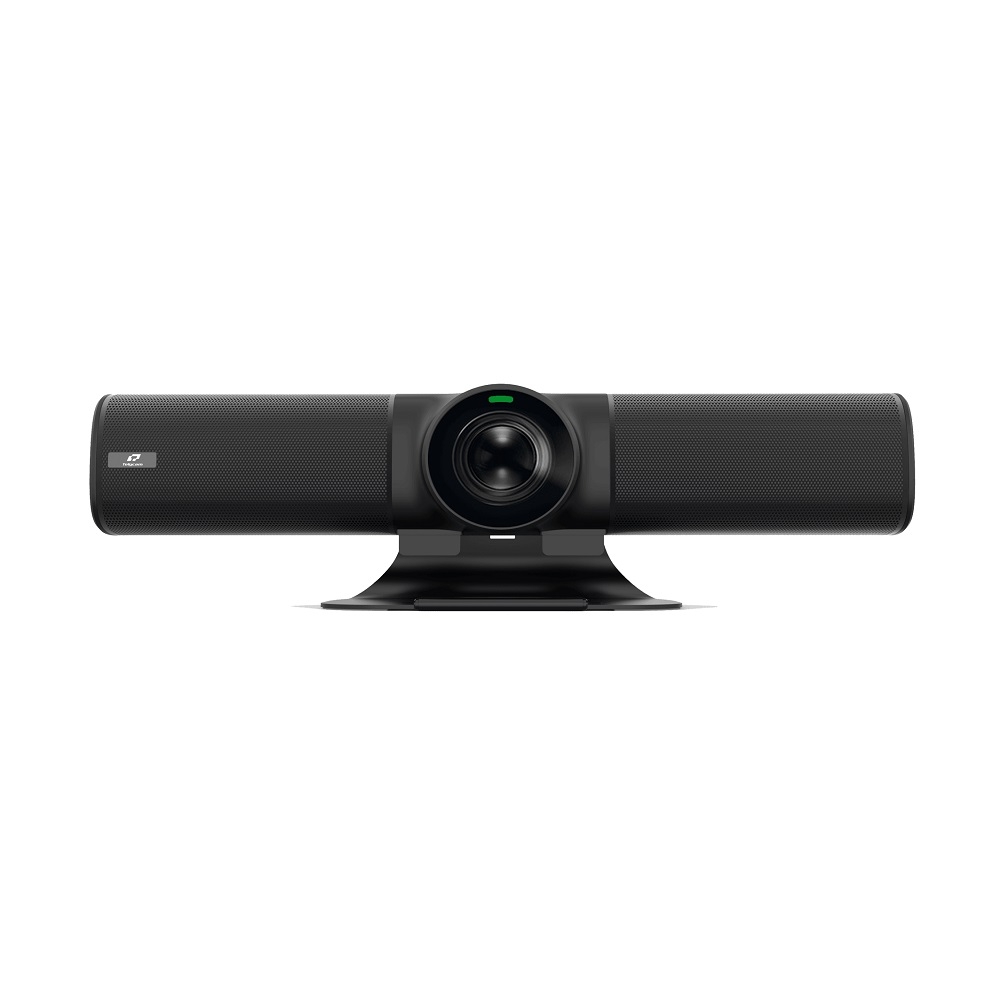

TLC-800-U3-4K 4K UHD All-in-One Video Conferencing Camera
Telycam TLC-800-U3-5-4K is a professional 4K UHD video conferencing ePTZ camera with soundbar, it is integrated sharp video and crystal-clear audio, to enable real all-in-one and plug-and-play video conferencing, bring users truly simple and friendly experience. Specially designed for small space and huddle room.
VIDEO PART
-
Adopted advanced high definition DSP, 1/2.5” 8.5MP CMOS sensor and high quality fixed 4K lens with 120-degree FOV, to provide sharp and crystal clear image.
-
4x electronic zoom adjustable.
-
An ultra-wide, big depth of field fixed lens is used.
-
Max resolution 2160p60 (MJPG/H.264/H.265) is supported.
-
Support Auto frame: Auto-frame participants at meeting start or enter, leave, or change positions; Auto-frame can be closed via a remote controller.
-
Matched with RF remote control to set video and audio.
-
Support Chinese and English OSD menu.
AUDIO PART
-
Uses Microphone Array Algorithms
-
16K pickup and 24K playback, to make voice crystal clear, sounding like a face-to-face meeting.
-
360° Omni-directional
-
Pickup range is up to 5 meters
-
Full duplex communication
-
384ms acoustic echo cancellation
-
Background noise suppression
-
Auto-level loud and soft voices
-
The peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion

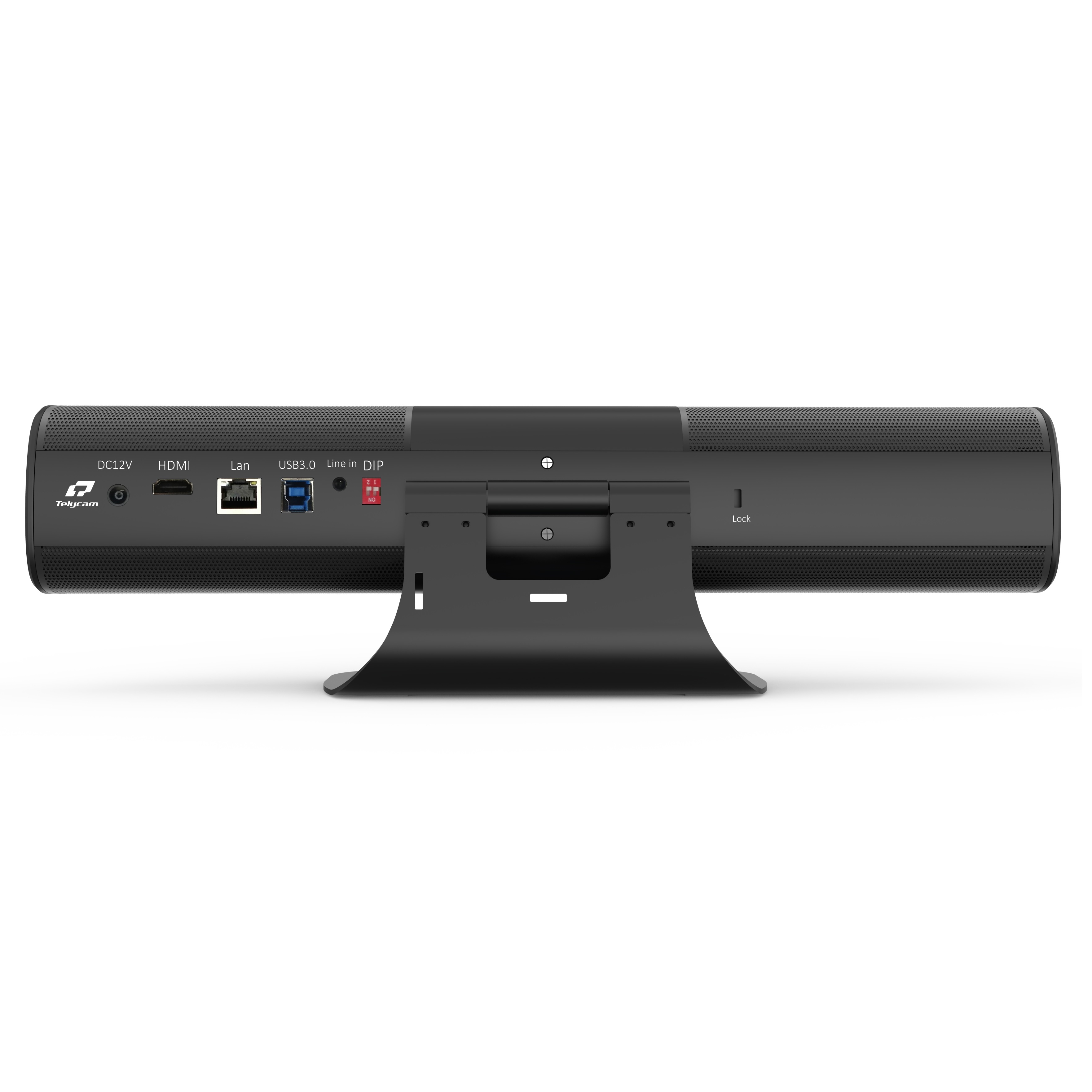

I/O INTERFACE
-
USB3.0 port compatible with USB2.0 output, and USB2.0 supports ultra-low video resolution for different applications.
-
With multiple video interfaces: USB3.0/USB2.0, IP, and HDMI.
-
Support HTML5 WEB protocol, enable streaming in the main modern browser: IE, Chrome, Firefox, Safari, Opera.
-
Support standard Sony VISCA over IP, to control the camera via IP remotely.
-
Support NewTek NDI V4.0 video transmission protocol, video transmission latency is very low, the video effect is more smooth than ordinary video stream, the maximum support for 20480K data stream, video details almost no loss.
-
Support standard UVC1.0~1.5 protocol, working with any of your favorite video conferencing software. API is supported.
Video
Sensor: 1/2.5”CMOS sensor
Effective Pixel: 8.5M effective pixels 16:9
Scan: Progressive
LENS: f=2.22mm±5%
Iris: F=2.4±5%
FOV: 120°
Focus Mode: Fixed
White Balance: ATW/Auto/Manual/Outdoor/Indoor/ Sodium / Fluorescent/OnePush
Iris: Auto/Manual/Brightness Priority/Shutter Priority
Anti-Flicker: OFF/50Hz/60Hz
Noise Reduction: 2D & 3D
Wide Dynamic: Support
Backlight compensation: Support
Color Enhancement: Support
Edge Enhancement: Support
Image Flip: Support
Image Mirroring: Support
Electronic Pan/Tilt: Support
Auto Frame: Support
Remote Controller: 2.4G remote controller to set OSD menu, audio, mute, video
USB Port: USB3.0 Type B/USB2.0
Protocol: UVC1.0~1.5
Video Format: MJPG/H.264/H.265:
Resolution:
MJPG/H.264/H.265: 3840x2160, 2592x1944, 2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1280x960, 1024x768, 800x600, 720x576, 704x576, 640x480, 640x360, 352x288, 320x240, 320x180
YUV：1920x1080, 1600x1200, 1280x1024, 1280x720, 1280x960, 1024x768, 800x600, 720x576, 704x576, 640x480, 640x360, 352x288, 320x240, 320x180
Frame: 60FPS/50FPS/30FPS/25FPS/20FPS/15FPS/10FPS/5FPS (YUV does not support 1080p60/50)
Supported System: Win7, Win10, MAC OS 10.7 and above, Android, Linux
HDMI Port: HDMI2.0
Resolution: 3840x2160P30/P25, 1920x1080P60/P50/P30/P25, 1920x1080i60/i50 1280x720P60/P50/P30/P25
IP port: RJ45:10M/100M/1000M Base-T
Video Encode: H.264/H.265
Video Stream: Main Stream, Sub Stream
Main Stream: 3840x2160@1~60, 1920x1080@1~60, 1280x720@1~60, 1024x576@1~60
Sub Stream: 1280x720@1~60, 1024x576@1~60, 720x576@1~60, 720x480@1~60, 320x240@1~60
Video Bitrate: 1024Kbps~20480Kbps
Support Protocol: TCP/IP, HTTP, RTSP, DHCP, RTMP, ONVIF(V2.4), VISCA over IP(TCP&UDP), HTML5, VISCA
Bitrate Control: Variable Bit Rate, Constant Bit Rate
Frame: 50Hz: 1fps ~ 60fps, 60Hz: 1fps ~ 60fps
Line In Audio Compressed: AAC, LPCM
Line in Sampling Rate: 11050, 22050, 44100
Line in Audio Bitrate: 32Kbps, 48Kbps, 64Kbps, 96Kbps, 128Kbps
Audio
Audio Input/ Output: Built-in Omni-directional microphone array
Protocol: UAC
Microphone: 4pcs Omni-directional microphone
Speaker: 4Ω/8W 100-24KHz 2 inch anti-magnetic horn
Pickup bandwidth: 100-16KHz
Sampling frequency: 32KHz(Ascending), 48KHz(Descending)
Sensitivity: -38dB~94dB SPL@1KHz
S/N ratio: 65dB 94dB SPL@1KHz
Audio Feature: Auto acoustic echo cancellation, Auto gain, Auto background noise suppression, Full-duplex, 360°Omni-directional pickup, Array Microphone algorithms
Pickup range: 3~5meters, ideal within 3 meters
Others
Power Consumption: 12V/500Ma, power adapter
PoE: Supported
Dimension: φ70.5×φ70.5×370.7mm
Working Temperature: 0°~40°C
Storage Temperature: -40°~70°C
