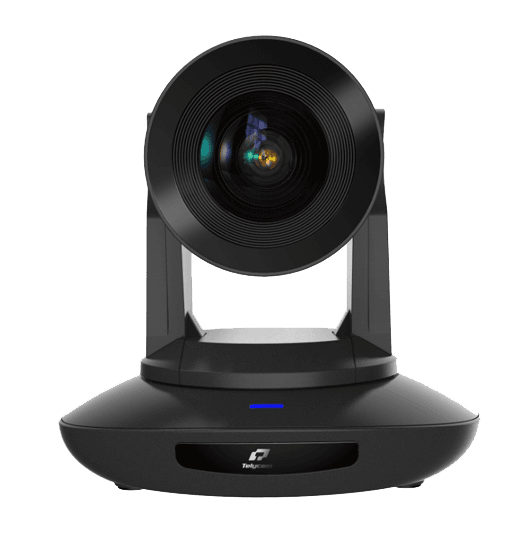

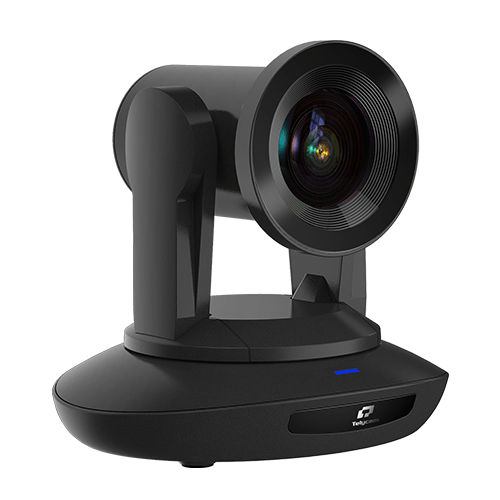

Camera Telycam TLC-700-IP-35-4K
Mô tả ngắn
Zoom: 35x
View Angle: 60 degree
Video Interface: 3G-SDI, HDMI, IP, USB3.0
Video Resolution: 4K30
Color: black, white
Hotline: 0918 642 886
TLC-700-IP-35-4K is a professional grade 35X 4K HD video camera, it is equipped with the most advanced image processing solution, 1/1.7 inch 12MP sensor, truly 4K lens, to output 4K sharp image.
It has a smooth PTZ mechanical design, to make accurate pan, tilt, zoom movement.
IP, HDMI, SDI, and USB3.0 simultaneously output 4K and HD resolution, ideal for live streaming applications.
Key Features
- Deliver 3840x2160 p30 Ultra HD video resolution; WDR, 3D Noise Reduction feature;
- 4K wide-angle optical lens: 35x optical zoom and 2x digital zoom, with 60-degree field of view;
- IP, HDMI, 3G-SDI, USB outputs, fit for different application 4K video over HDMI and IP, support both H.264, H.265 encoding;
- Support POE: one single CAT5/6 to get video, control and power supply;
- Smooth PTZ mechanical design, accurate and fast pan tilt zoom movement; 128 presets;
- Standard VISCA, IP VISCA, PELCO-P, PELCO-D control protocol; IP VISCA over both TCP and UDP; ONVIF
|
Model Number |
TLC-700-IP-35-4K |
|||
|
Sensor |
1/1.7 inch, 12 megapixel high quality CMOS sensor |
|||
|
Video Format |
HDMI 1920*1080p60/59.94/50/ 30/29.97/25/24, 1920*1080i60/59.94/50, 1280*720p60/59.94/50/ 30/29.97/25 |
IP 1920*1080@30-15 3840*2160@30-15 Substream: 1280*720@30-15 1024*576@30-15 640*360@30-15 |
SDI 1920*1080p60/59.94/50/30/29.97/25/24, 1920*1080i60/59.94/50, 1280*720p60/59.94/50/29.97/30/25 |
USB3.0： 1920*1080p60/50/30/25,1280*720p60/50/30/25, 1024*576p30 USB2.0： 1024*576p30,960*540p30, 640*360p30,512*288p30 |
|
Zoom |
35xopticalzoom+2xdigitalzoom |
|||
|
FOV |
2.02°(near)~60°(far) |
|||
|
Min. Focus Distance |
Wide:0.3mTele:1.5m |
|||
|
Preset |
10 via remote controller;128via serial port; preset precision:0.1° |
|||
|
Rotation Angle |
Pan: -170°~+170°; Tilt: -30°~+90° |
|||
|
Rotation Speed |
Pan: -0°~120°/s; Tilt: 0°~80°/s |
|||
|
Control Port |
RS232/RS485/RJ45/USB3.0 |
|||
|

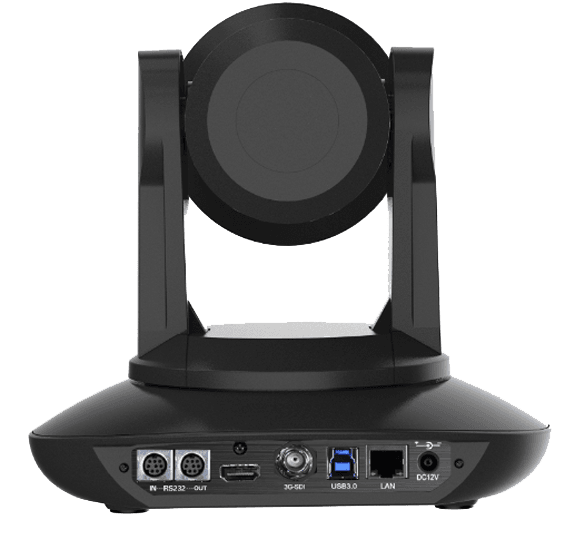

Video Port |
HDMI/RJ45/SDI/USB3.0/USB2.0 |
|||
|
Noise Reduction |
2D&3D |
|||
|
SNR |
>50dB |
|||
|
Focal Length |
f＝5.8(near)～203mm(far) |
|||
|
Minimum LUX |
0.1LUX |
|||
|
White Balance |
Auto/Manual/AutoTracking/OnePush/Indoor/Outdoor/Sodium/Fluorescent |
|||
|
Anti Flicker |
50Hz/60Hz/OFF |
|||
|
D/N Mode |
Supported |
|||
|
Gamma |
Supported |
|||
|
Mirror Image |
Supported |
|||
|
Pan/Tilt Flip |
Supported |
|||
|
Iris |
Auto/Manual |
|||
|
Electric Shutter |
Auto/Manual |
|||
|
BLC |
Auto/Manual |
|||
|
Focus |
Auto/Manual |
|||
|
Video Encoding |
H.264/H.265 |
|||
|
Network Speed |
1000M |
|||
|
BitRate Control |
Variable BitRate, Constant BitRate |
|||
|
Video BitRate |
1024Kbps~51200Kbps |
|||
|
Frames |
50HZ:15fps~50fps60HZ:15fps~60fps（3840x2160max.30fps） |
|||
|
IP Protocol |
TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, VISCA over IP(TCP&UDP), HTML5 |
|||
|
POE |
Supported, POE+(IEEE802.3at) |
|||
|
Input Voltage |
DC12V,2A |
|||
|
Dimension |
220mm×173mm×190mm |
|||
|
Net Weight |
1.25KGS（2.8LBS） |
|||
