1080p60 FHD resolution
20x optical zoom
IP/3G-SDI/HDMI/USB3.0 Available
SRT supported
Power over Ethernet

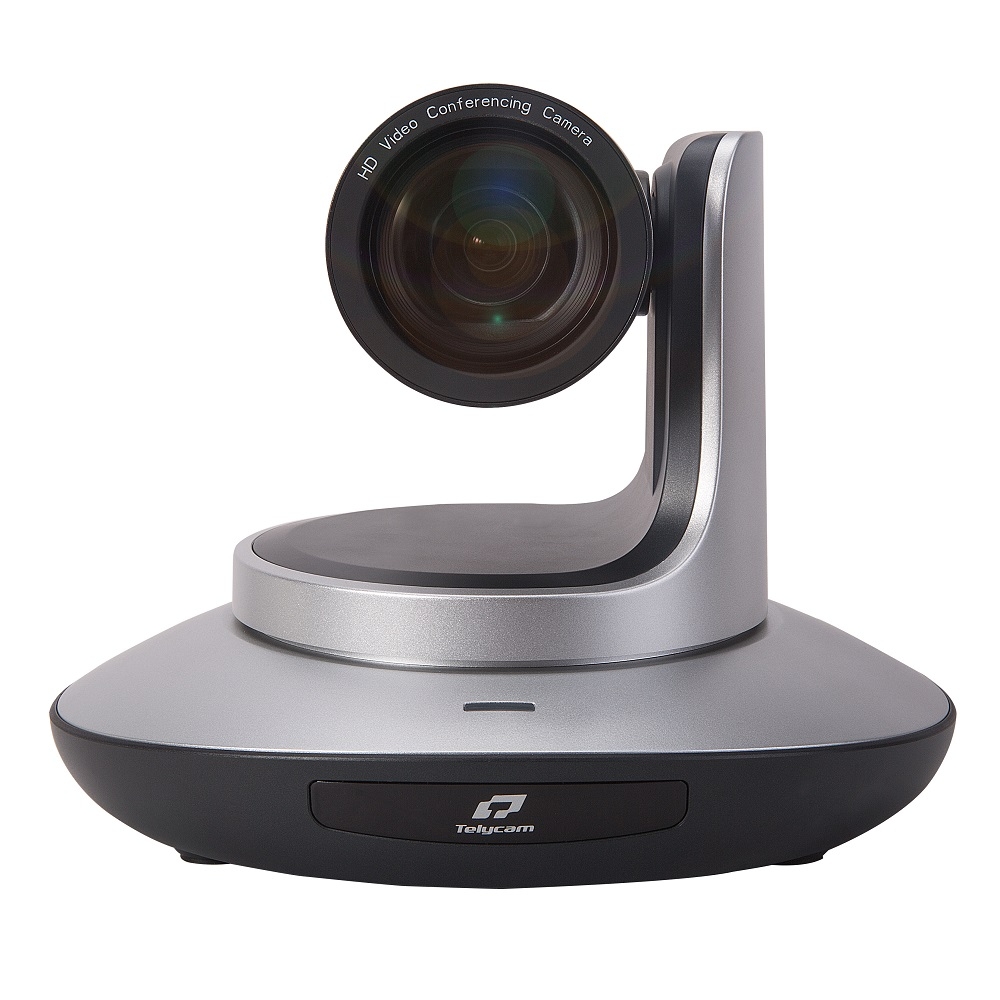

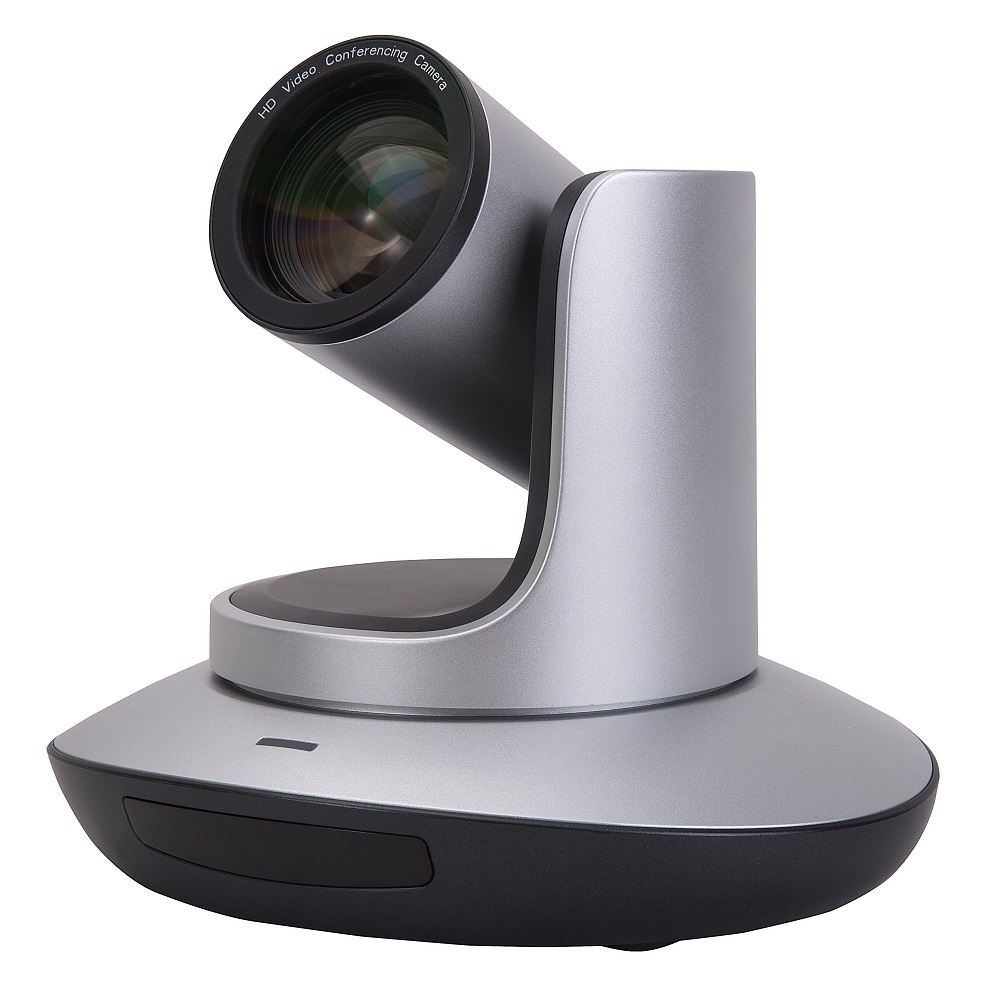

TLC-300-IP-20 is equipped with an industry-level image processing solution, an advanced 2.4MP sensor, and a 20x optical zoom lens, to deliver sharp and high definition video.
With IP, HDMI, 3G-SDI, and USB3.0 video output connectivity, it can be used in various applications to produce and stream video, for a studio room, classroom, meeting room, church, etc.
Creating video content has never been easier!
Highlights:
1080p60 FHD resolution
20x optical zoom
IP/3G-SDI/HDMI/USB3.0 Available
SRT supported
Power over Ethernet
Technical Specifications:
Item Number |
TLC-300-IP-20 |
|
Zoom |
20x optical zoom |
|
Lens |
f =4.9~98mm, F=1.5- 3.0, View Angle: 60°(Far)-3.2°(Near) |
|
Video Format |
Ethernet |
1920*1080@3~60; 1280*720@3~60; 1024*576@3~60,640*360@3~60 (low bandwidth mode) |
HDMI |
1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97 |
|
SDI |
1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97 |
|
USB |
1920*1080P60/50/30/25(USB3.0); 1280*720P60/50/30(USB3.0); |
|
|
1280*720P25(USB3.0&USB2.0); 1024*576P30(USB3.0&USB2.0); 960*540P30(USB2.0); 640*360P30(USB2.0); 512*288P30(USB2.0) |
|
Video Interface |
Ethernet, HDMI, 3G-SDI, USB3.0 |
|
Sensor |
1/2.8”2.4MP CMOS sensor |
|
Rotation Angle |
Pan: -170° ~ +170°; Tilt: -30° ~ +90° |
|
Rotation Speed |
Pan: 0°~120°/s; Tilt: 0°~80°/s |
|
Preset |
Remote controller: 10; RS232: 128; Accuracy: 0.1° |
|
Control Port |
RJ45, RS232, RS485, USB3.0(UVC1.5), USB2.0(UVC1.1) |
|
Network Speed |
1000M |
|
Video encode |
H.264/H.265 |
|
Bit Rate Control |
Variable Bit Rate, Constant Bit Rate |
|
Video Bit Rate |
1024Kbps~16384Kbps |
|
Supported Protocol |
HTTP, RTSP, RTMP, DHCP, 0NVIF, VISCA over IP, VISCA TCP, VISCA UDP |
|
POE+ |
Supported |
|
Daisy Chain |
Support RS232 serial daisy chain |
|
Minimum Lux |
0.1lux |
|
White Balance |
ATW/Manual/Auto/Indoor/Outdoor/One Push/Sodium/Fluorescent |
|
Exposure |
Auto/Manual/Shutter/Iris/Bright |
|
Focus/ Iris/ Electric Shutter |
Auto/Manual |
|
Gamma/ WDR/ BLC |
Supported |
|
2D/3D Noise Reduction |
Supported |
|
Anti-Flicker |
OFF/50Hz/60Hz |
|
Pan Tilt Flip |
Supported |
|
Input Voltage |
DC12V/POE+(IEEE802.3at) |
|
Color |
Black/White/Silver/Grey |
|
Dimension |
220mm×190mm×173mm |
|
Net Weight |
1.35kg |
|
4K60 UHD video resolution
30x optical zoom
HDMI2.0/3G-SDI/USB2.0 video interface
SRT supported
Power over Ethernet
Support digital zoom (2x at 1080P and 3x at 720P)
Support Phase Detection Auto Focus technology to enable focus at very short distance fast and accurate
Plug and play, and driver-free
Firmware upgrade via USB interface, easy and fast
Built-in high-quality microphone, to pick up the voice clearly
With silicone lens cover to protect your privacy.
Camera Telycam Meet+ 200 TLC-200M-U2-4K
4K Ultra high-definition image
120-degree FOV, 4x digital zoom
Auto Framing
Built-in beamforming microphone
Zoom certified
Camera Telycam TLC-300-U3-5-4K
4K sharp image
15x zoom with 85-degree view angel
USB3.0 plug and play
Working in various light conditions
