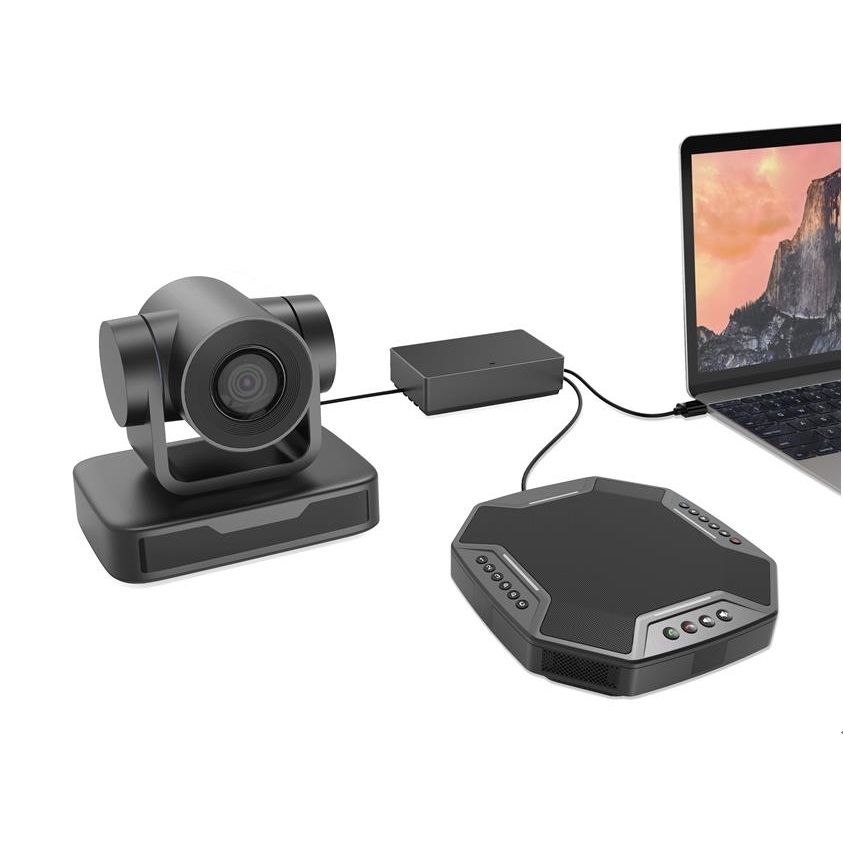

Video conferencing system kit VA210
Mô tả ngắn
1/2.9 inch high quality CMOS sensor. Resolution is up to 1920×1080
Multi-lens: 3x zoom lens and 10x zoom lens are available
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing
Support MJPG/H.264/H.265 video compression
Built-in 4 single-point microphones, composed of 360-degree omni-directional audio-pickup
Hotline: 0918 642 886
VA210 is a perfect conference solution that combines audio and video. It applies advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. The audio adopts the international advanced new-generation high-definition voice processing technology with clear and smooth sound quality and strong environmental adaptability. It can provide participants with smooth and natural audiovisual effects whenever and wherever, and provide a comfortable and immersive experience for teleconferencing and other applications.
FEATURES:
- 1/2.9 inch high quality CMOS sensor. Resolution is up to 1920×1080.
- Multi-lens: 3x zoom lens and 10x zoom lens are available.
- Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
- Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
- Adopting high accuracy step motor and motor driving controller to make extremely quiet and smooth rotation .
- Support MJPG/H.264/H.265 video compression.
- Support AEC(Acoustic Echo Cancellation, AGC(Automatic Gain Control),NC(Bidirectional noise compression), Automatic Direction finding Technology of Intelligent microphone(EMI), Zero damage compression in vocal full frequency domain.
- Built-in 4 single-point microphones, composed of 360-degree omni-directional audio-pickup, 6m sound-pickup diameter, external microphone is available, up to 10m sound-pickup diameter .
|
Spec/Model NO. |
VA210-V |
|
Sensor |
1/2.9 inch high quality HD CMOS sensor |
|
Effective Pixels |
2.07M, 16：9 |
|
Video Format |
1920×1080P@30 fps/25fps; 1280×720P@30fps/25fps; 1024×576P@30fps/25fps; 960×540P@30fps/25fps; 800×448P@30fps/25fps; 640×360P@30fps/25fps; 320×176P@30fps/25fps |
|
Optical zoom lens |
3X Optical zoom, f＝3.35～10.05mm / 10X Optical Zoom f＝4.34~41.66mm |
|
View angle |
30°（tele） 85°（wide） / 8.8°（Tele）68.8°（Wide） |
|
Aperture value |
F1.7 – F3.0 / F1.85 – F2.43 |
|
Digital Zoom |
10X |
|
Minimum Illumination |
0.5Lux(F1.8, AGC ON) |
|
DNR |
2D﹠3D DNR |
|
White Balance |
Auto / Manual/ One Push/ 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
|
Focus |
Auto/Manual/One Push |
|
Aperture/Electronic Shutter |
Auto/Manual |
|
BLC |
ON/OFF |
|
WDR |
OFF/ Dynamic level adjustment |
|
Video Adjustment |
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
|
SNR |
>55dB |
|
Rotation angle |
Pan: -170°～+170°, Tilt:-30°～+90° |
|
Control speed |
Pan: 0.1 ～60°/sec, Tilt:0.1～30°/sec |
|
Preset speed |
Pan: 60°/sec, Tilt: 30°/sec |
|
Dimensions |
156.8mm×112.6mm×139.1mm (L×W×H) |
|
Spec/Model NO. |
VA210-A |
|
Voice technical parameters |
Acoustic Echo cancellation（AEC）：>65dB Echo length cancellation：≥400ms Bidirectional noise compression（NC）：<25dB Automatic Direction finding Technology of Intelligent microphone（EMI） Automatic gain control（AGC） |
|
Audio Parameters |
Microphone frequency response：100Hz-22KHz Speaker frequency response：100Hz-22KHz Speaker volume: 95dB at the most Microphone sound-pickup diameter: 6 meters, 360 degrees full range |
|
Bluetooth |
Bluetooth devices available |
|
IR Reception |
Angle: 360° Distance: 10m IR Transparent transmission available |
|
Dimensions |
200mm×200mm×55.9mm(L×W×H) |
|
Spec/Model NO. |
VA210-H |
|
Interface |
Mini DIN6 ×2 Power interface×1 Power switch×1 Mini USB interface×1 |
|
Power supply |
EC3800 plug(DC12V) Adapter input AC110V-AC220V,output DC12V/1.5A |
|
Data line |
Mini DIN6 data line ×2 Length: 5m（10m/15m for options） |
|
USB cable |
USB2.0 cable (3m) |
|
Compatibility |
Support Windows, Andriod, iOS and Linux Drive-free automatic recognition of cameras, microphones and speakers Compatible with Zoom, Lynch, Vidyo, etc. |
|
Dimensions |
120mm×74mm×34.5mm(L×W×H) |
|
Accessories |
Power adapter, USB2.0 cable, remote controller, two connection cables, user manual |
