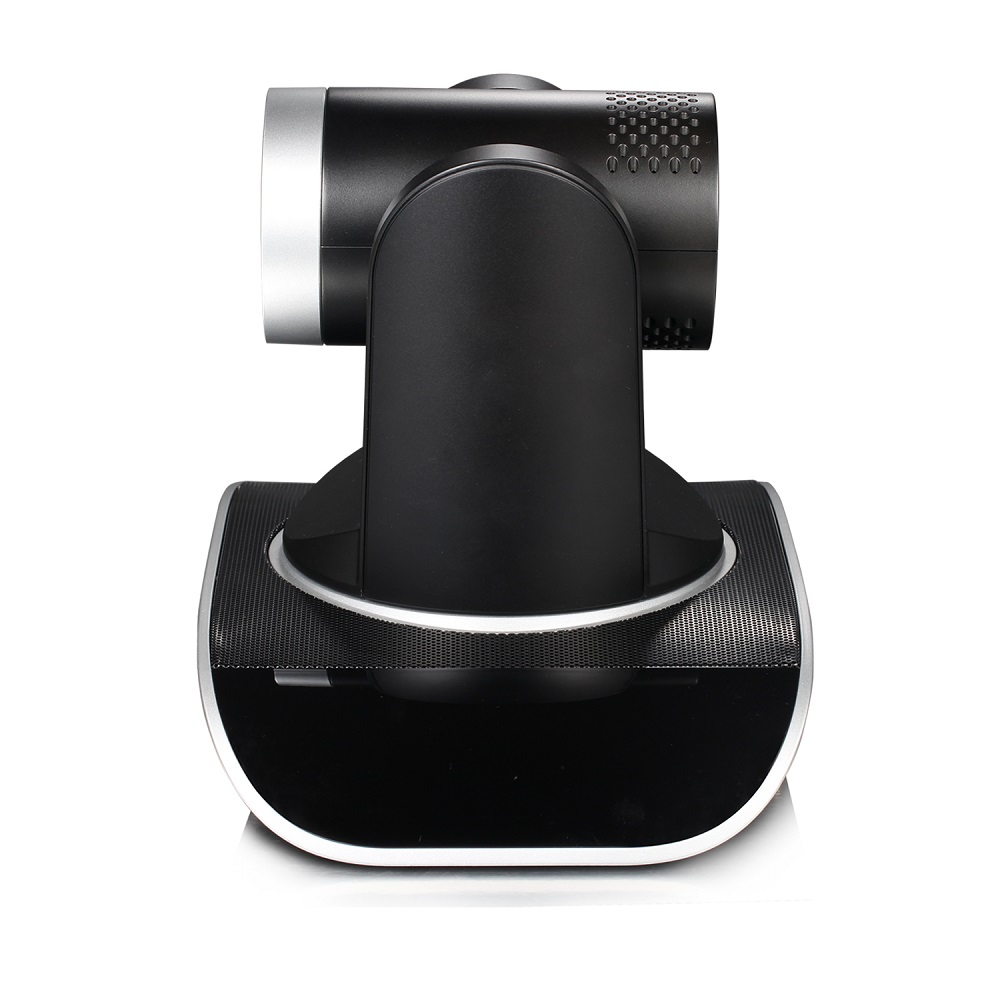

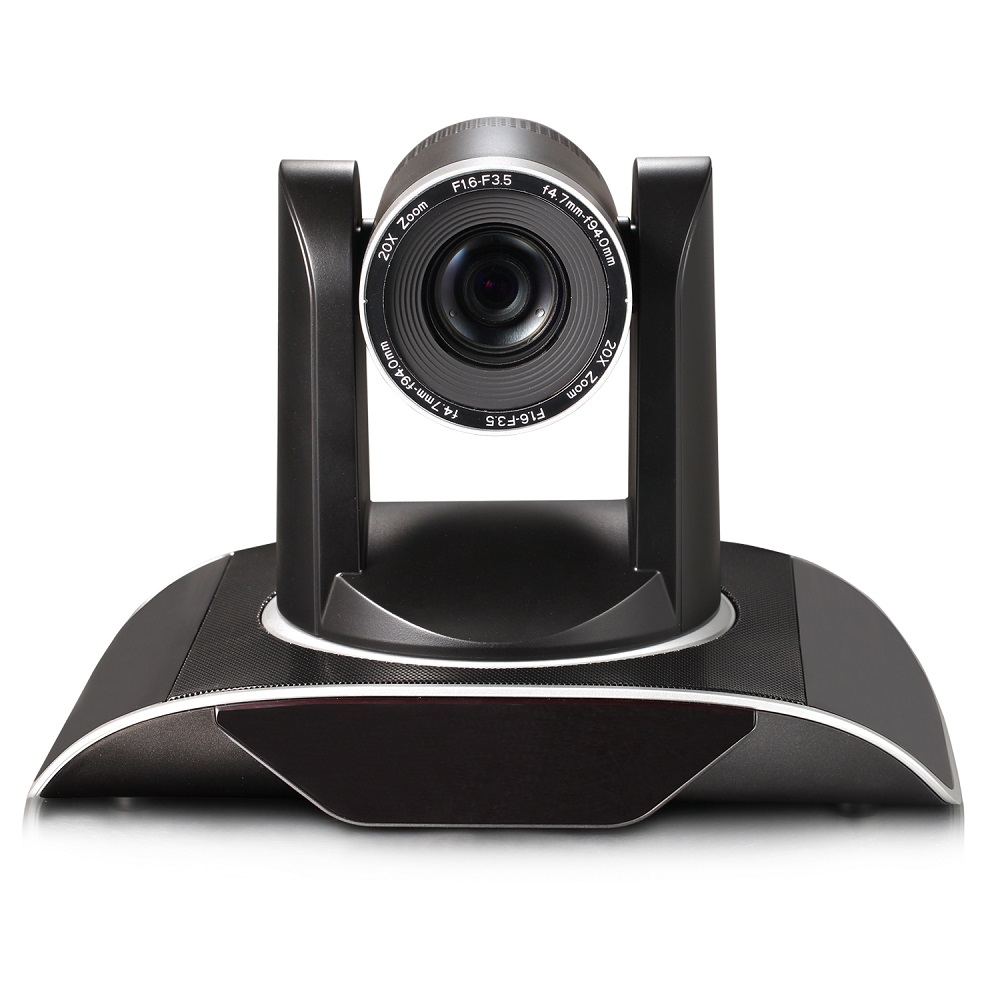

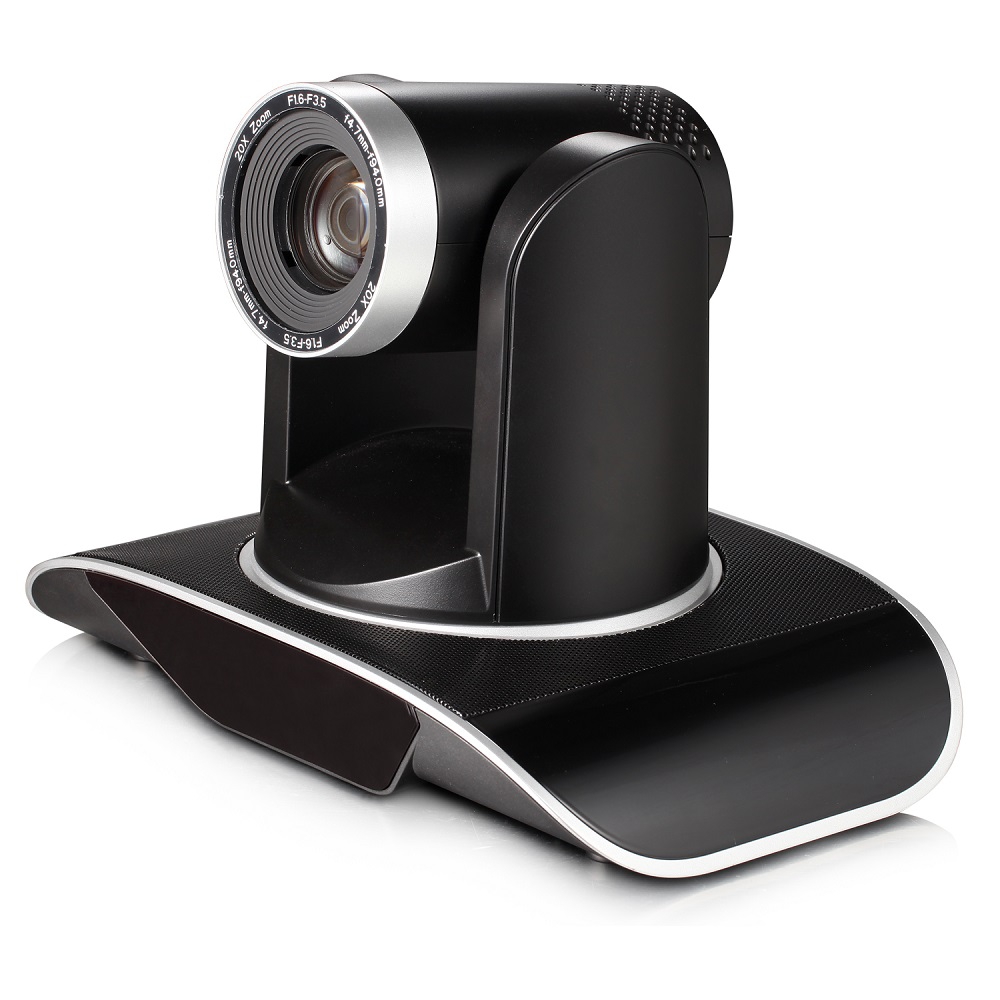

Camera Minrray UV950A-12-U3
Mô tả ngắn
Camera Minrray UV950A-12-U3:
FULL HD Conferencing Camera, 1080P/2MP
Lens: 12X optical Zoom

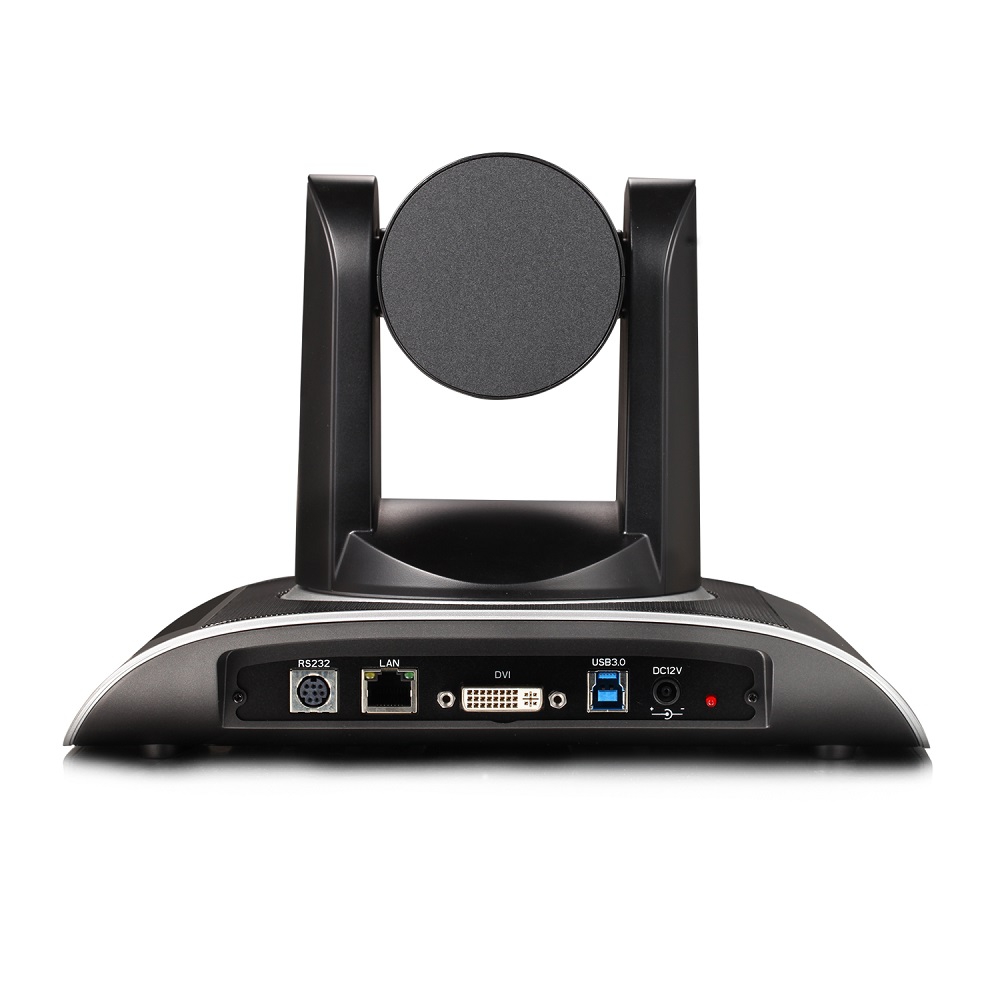

Interface: USB3.0, DVI(HDMI), LAN, RS232(IN), A-IN
Hotline: 0918 642 886
- Superb High-definition Image
UV950A employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
- Various Optical Zoom Lens
UV950A has 12X/20X/30X optical zoom lens for options. 12x zoom lens is with 72.5 ° wide view angle without distortion.
- Leading Auto Focus Technology
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
- Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video.Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
- Audio Input Interface (for future development)
Support 16000,32000,44100,48000 sampling frequency and AAC,MP3,PCM audio coding.
- Wide-range, Quiet and Quick Pan/Tilt Mechanism
By adopting step driving motor mechanism,UV950A camera works extremely quiet and moves smoothly.
- Multiple Audio/Video compression
Support H.264/H.265 video compression;AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.
- Multiple Network Protocol
Support ONVIF,RTSP,RTMP protocols and support RTMP push mode,easy to link streaming media server (Wowza,FMS)
- Wide Application
Tele-education,lecture capture,Webcasting, Videoconferencing,Tele-training,Tele-medicine, Interrogation and Emergency command systems.
- Low-power sleep function
Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode.
|
Model |
UV950A-12 |
UV950A-20 |
UV950A-30 |
|
|
Camera Parameter |
||||
|
Optical Zoom |
12X f＝3.9～46.1mm |
20X f＝55.7～110mm |
30X f＝4.3～129mm |
|
|
Sensor |
1/2.8 inch high quality HD CMOS sensor |
|||
|
Effective Pixels |
16: 9 2.07 megapixel |
|||
|
Video Format |
ST video format 1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97 U3.0 interface video format 1)USB3.0: 1920X1080P60/50/30/25;1280X720P60/50/30/25;960X540P30;640X360P30;640X480P30;352X288P30;960X540P30 2) USB3.0 compatible with USB2.0 :960X540P30; 640X360P30; 1280X720P10/15; 720X576P50; 720X480P60; 640X480P30; 352X288P30. |
|||
|
View Angle |
6.3°(tele)–72.5°(wide) |
3.3°(tele)–54.7°(wide) |
4.3°(tele)–54.7°(wide) |
|
|
AV |
F1.8 ～ F2.4 |
|||
|
Digital Zoom |
10X |
|||
|
Minimum Illumination |
0.5Lux (F1.8, AGC ON) |
|||
|
DNR |
2D & 3D DNR |
|||
|
White Balance |
Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K |
|||
|
Focus |
Auto/Manual |
|||
|
Aperture |
Auto/Manual |
|||
|
Electronic Shutter |
Auto/Manual |
|||
|
BLC |
ON/OFF |
|||
|
WDR |
OFF/ Dynamic level adjustment |
|||
|
Video Adjustment |
Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve |
|||
|
SNR |
>55dB |
|||
|
Input/Output Interface |
||||
|
Video Interfaces |
UV950A-12/20/30-ST Model:3G-SDI,DVI(HDMI),LAN,RS232(IN/OUT),RS485,A-IN UV950A-12/20/30-U3 Model:USB3.0,DVI(HDMI),LAN,RS232(IN) UV950A-12/20/30-U2U3 Model: USB3.0,USB2.0, HDMI, LAN, RS232(IN), A-IN |
|||
|
Image Code Stream |
Dual stream output |
|||
|
Video Compression Format |
H.264, H.265 |
|||
|
Control Signal Interface |
RS-232 Ring through RS232 output |
|||
|
Control Protocol |
VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps |
|||
|
Audio Input Interface |
Double track 3.5mm linear input; |
|||
|
Audio Compression Format |
AAC/MP3/PCM Audio compression |
|||
|
HD IP Interface |
100M IP port(100BASE-TX); 5G WiFi (optional), Support Visca protocol control through IP port. |
|||
|
Network Protocol |
RTSP/RTMP,ONVIF,GB/T28181 |
|||
|
Power Interface |
HEC3800 outlet (DC12V) |
|||
|
PTZ Parameter |
||||
|
Pan Rotation |
±170° |
|||
|
Tilt Rotation |
-30°～+90° |
|||
|
Pan Control Speed |
0.1 -100°/sec |
|||
|
Tilt Control Speed |
0.1-45°/sec |
|||
|
Preset Speed |
Pan: 100°/sec,Tilt: 45°/sec |
|||
|
Preset Number |
255 presets (10 presets by remote controller) |
|||
|
Other Parameter |
||||
|
Supply Adapter |
AC110V-AC220V to DC12V/1.5A |
|||
|
Input Voltage |
DC12V±10% |
|||
|
Input Current |
1A(Max) |
|||
|
Consumption |
12W (Max) |
|||
|
Store Temperature |
-10℃～+50℃ |
|||
|
Store Humidity |
20% – 95% |
|||
|
Working Temperature |
-10℃～+50℃ |
|||
|
Working Humidity |
20%–80% |
|||
|
Dimension |
258mmX172mmX168mm |
|||
|
Weight |
1.54KG |
|||
|
Remote Operation (IP) |
Remote Upgrade,Reboot and Reset |
|||
|
Accessory |
power supply,RS232 control cable,remoter,manual,warranty card,bracket(optional) |
|||
