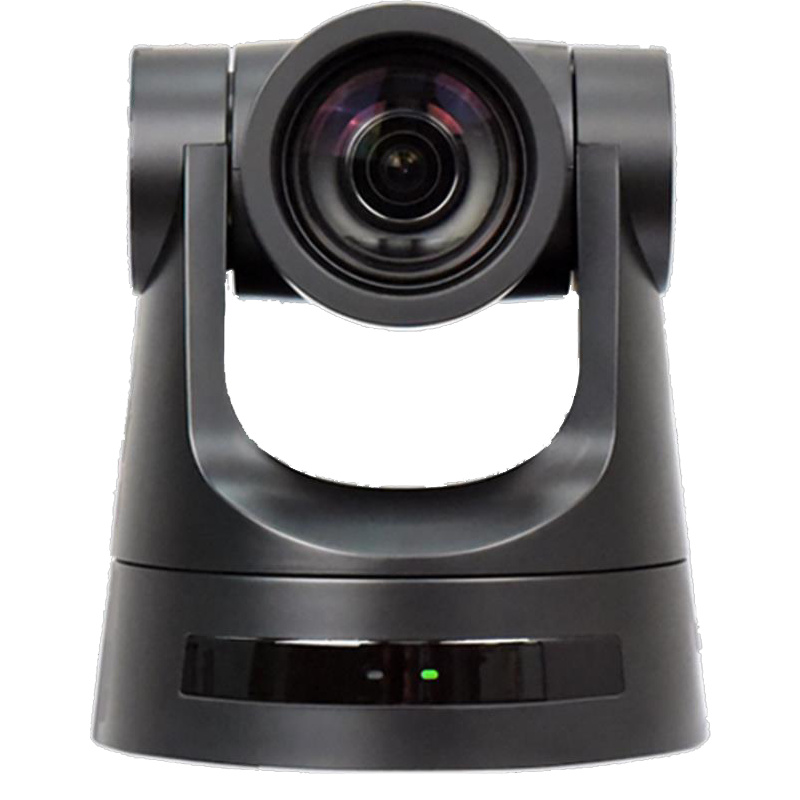

Camera Minrray UV580
Mô tả ngắn
Full HD PTZ Camera
Superb High-definition Image
12 X zoom lens is with 72.5 ° wide view angle without distortion
AI-powered Auto Tracking Technology
Hotline: 0918 642 886
Full HD PTZ Camera
The UV580 series camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.
Superb High-definition Image
Built-in face detection algorithm, automatically detect participants, and provide ideal framing.
Multiple Optical Zoom
12 X zoom lens is with 72.5 ° wide view angle without distortion.
AI-powered Auto Tracking Technology
Seamless tracking between different zones: After you preset different tracking zones, the camer will track and capture the target seamlessly between the presetting zones. Zone Tracking technology enables you to have a wide range of shooting angle with no dedicated operators required.
Real-time Tracking: Once there is a person being detected, the UV430-AI would automatically follow the movements, and zoom in/out to focus on the target. That is perfect for teaching recording, virtual meeting and any other streaming you want to deliver on your own.
Technical Specification:
|
Model |
UV580B1 |
UV580B2 |
UV580E3 |
UV580E2 |
|
1080P PTZ Camera |
||||
|
Optical Zoom |
12X |
20X |
12X |
20X |
|
Viewing Angle |
6.6°（N）70.3°（W） |
3.5°（N）60°（W） |
6.6°（N）70.3°（W） |
3.5°（N）60°（W） |
|
Iris Value |
F1.8 – F2.68 |
F1.8 – F2.9 |
F1.8 – F2.68 |
F1.8 – F2.9 |
|
Image Sensor |
1/2.8 Inch High Quality CMOS Sensor |
1/2.8 Inch High Quality CMOS Sensor |
1/2.8 Inch High Quality CMOS Sensor |
1/2.8 Inch High Quality CMOS Sensor |
|
Effective Pixel |
2.07M 16:9 |
2.07M 16:9 |
2.07M 16:9 |
2.07M 16:9 |
|
Video Signal |
HDMI/SDI |
HDMI/SDI |
||
|
1080P60、1080P50、1080P30、1080P25、720P60、720P50、1080P59.94、 |
1080P60/50/30/25/59.94/29.97、1080I60/50/59.94、720P60/50/59.94 |
|||
|
USB3.0 |
U2 |
|||
|
Main Stream：YUY2/NV12：1920×1080/1280×720/1024×576/800×600/800×448/ |
H264/H265/MJPEG：320x240/352x288/640x360/640x480/704x576/704x480/ |
|||
|
Sub Stream：YUY2/NV12：1280×720/1024×576/800×600/800×448/640×360/ |
||||
|
Digital Zoom |
10x |
|||
|
AI Function |
Real-time Tracking, Zone Tracking |
None |
||
|
Interface |
HDMI、SDI、LAN(POE)、USB3.0、A-IN、RS232-IN、 |
HDMI、SDI、LAN(POE)、USB2.0、A-IN、RS232-IN、 |
||
|
Accesory |
Power Adapter, RS232 Cable, USB3.0. Cable, Remote Control, User Manual |
Power Adapter, RS232 Cable, USB3.0. Cable, Remote Control, User Manual |
||
