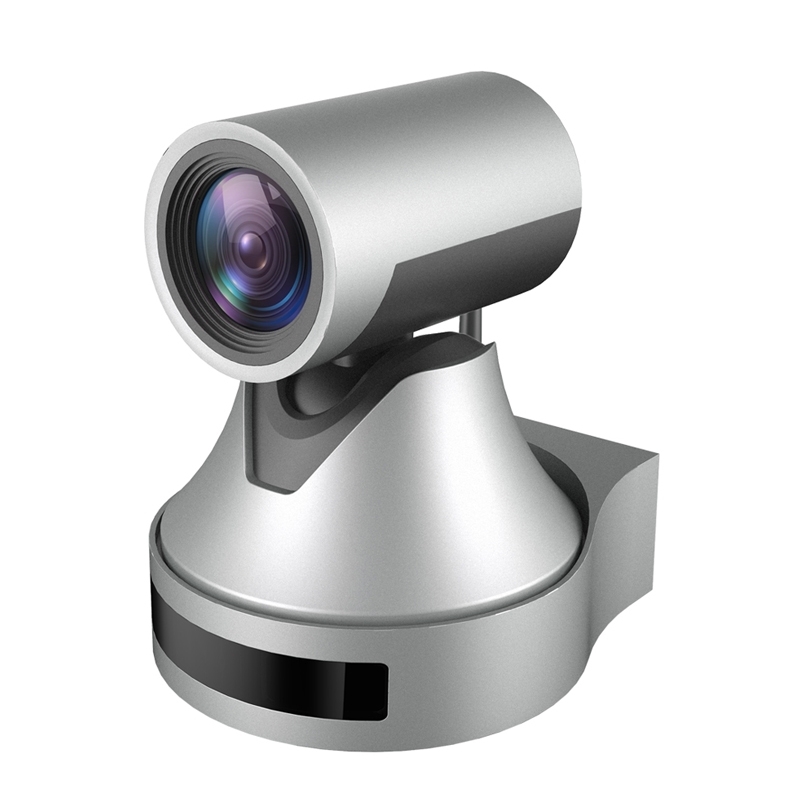

Camera Minrray UV520
Mô tả ngắn
HD Video Conterence Camera
With 1/2.8 inch high quality CMOS sensor, the resolution is up to 1920x1080 with frame rate up to 60fps per second
12X/20X optical zoom lens for option
Extremely Quiet PTZ
Hotline: 0918 642 886
HD Video Conterence Camera
Boasting excellent performance, rich interfaces, and advanced ISP processing technology and algorithm, UV520 makes image vivid with even brightness and strong color reproduction.
Full HD Resolution
With 1/2.8 inch high quality CMOS sensor, the resolution is up to 1920x1080 with frame rate up to 60fps per second.
Multiple Optical Zoom Lens
12X/20X optical zoom lens for option
Extremely Quiet PTZ
Adopting step driving motor mechanism, UV520 camera works with quiet and smooth movement
Technical Specifications
|
Model |
UV520 |
|
|
1080P PTZ Camera |
||
|
Optical Zoom |
12X |
20X |
|
Viewing Angle |
6.6°（N）70.4°（W） |
3.3°（N）54.7°（W） |
|
Iris Value |
F1.8 – F2.4 |
F1.6 – F3.5 |
|
Image Sensor |
1/2.8 Inch High Quality CMOS Sensor |
1/2.8 Inch High Quality CMOS Sensor |
|
Effective Pixel |
2.07M 16:9 |
2.07M 16:9 |
|
Video Signal |
HDMI/SDI |
|
|
1080P60、1080P59.94、1080P29.97、1080P50、1080I60、1080I59.94、1080I50、1080P30、1080P29.97、1080P25、720P60、 720P59.94、720P50、720P29.97 |
||
|
CVBS |
||
|
576i、480i |
||
|
USB3.0 |
||
|
Maximum: 1080P30 |
||
|
Digital Zoom |
10x |
|
|
Interface |
UV520-ST：HDMI、SDI、LAN（POE）、CVBS、RS232-IN、RS232-OUT、RS422 compatible with RS485、Line-IN、USB2.0(Stored in Disk U) |
|
|
Accrssory |
Power Adapter, RS232 Cable, USB3.0, 3.5MM convert to RCA Cable, Remote Control, User Manual |
|
