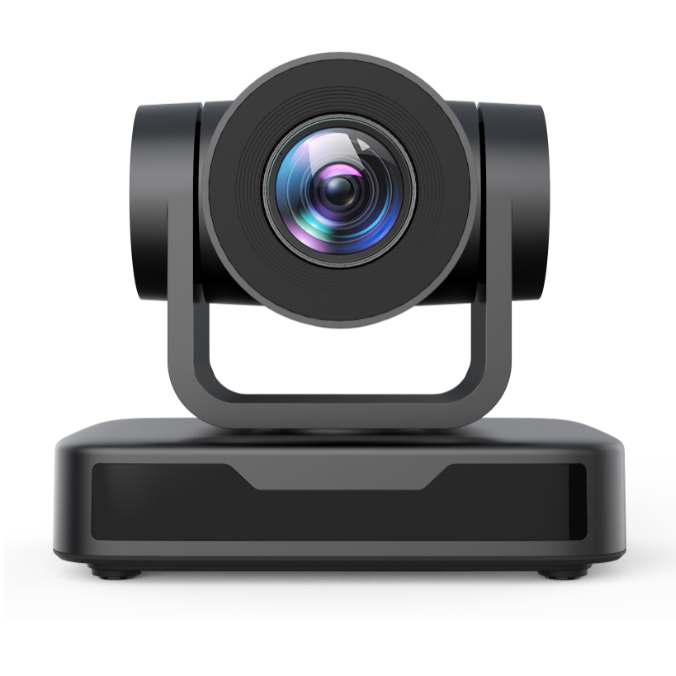

Camera Minrray UV515-03 USB2.0
Mô tả ngắn
Camera Minrray UV515-03
1/2.9 Inch High-Quality CMOS Sensor
3X Optical Lens, 10X Digital Zoom
Resolution up to 1920x1080P@30fps
Video Output USB2.0
Hotline: 0918 642 886
UV515-03 camera offers perfect functions, superior performance, and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition.
Product Features:
- Superb High-definition Image
UV515 employs 1/2.9 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 30fps.
- Various Optical Zoom Lens
UV515-03 has 3Xoptical zoom lens for options.
- Leading Auto Focus Technology
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
- Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video.Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
- Multiple Control Interface: RS232, RS485; RS232 support daisy chain, convenient for installation on projects.
- Multiple Control Protocols: Support VISCA, Pelco-D, Pelco-P and support auto-recognize protocol.
- Low-power sleep function: Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode
- Multiple Remoter Control
User can choose to use IR remoter or wireless remoter according to the working environment. The 2.4G wireless remoter will not be affected by angle, distance or infrared interfere. Support remoter signal pass through function, which is convenient for back-end use.
- Preset
Support up to 255 presets (10 presets by remoter )
Tele-education,lecture capture,Webcasting, Videoconferencing,Tele-training,Tele-medicine, Interrogation and Emergency command systems.
Technical Specification
|
Model Number |
UV515-03 |
UV515-10 |
|
|
Camera Parameter |
|||
|
Image Sensor |
1/2.9 Inch High Quality CMOS Sensor |
||
|
Effective Pixels |
2.07MP, 16:9 |
||
|
Video Format |
1920×1080P@30 fps/25fps; 1280×720P@30fps/25fps; 1024×576P@30fps/25fps; 960×540P@30fps/25fps; 800×448P@30fps/25fps; 640×360P@30fps/25fps; 320×176P@30fps/25fps |
||
|
Optical Lens |
3X Optical Lens f＝3.35mm～10.05mm |
10X Optical Lens f＝4.34mm～41.66mm |
|
|
View Angle |
34.1°～90° |
8.8°～ 70° |
|
|
Iris |
F1.7～3.0 |
F1.85 – F2.43 |
|
|
Digital Zoom |
10X |
||
|
Low Illumination |
0.5Lux(F1.8, AGC ON) |
||
|
DNR |
2D﹠3DDNR |
||
|
White Balance |
Auto / Manual/ One Push//3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
||
|
Focus |
Auto / Manual/ One Push/ |
||
|
Electronic Shutter |
Auto / Manual/ |
||
|
BLC |
On/Off |
||
|
WDR |
OFF/ Dynamic Level Adjustment |
||
|
Video Adjustment |
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
||
|
SNR |
>55dB |
||
|
Interface and Protocol |
|||
|
Video Output |
USB2.0 |
||
|
Video Stream |
Dual Stream |
||
|
Video Compression |
H.265, H.264, MJPG |
||
|
Control Port |
RS232(Circuit), RS485 |
||
|
Control Protocol |
Protocol: VISCA/Pelco-D/Pelco-P |
||
|
Power Supply |
HEC3800 Outlet (DC12V) |
||
|
Power Adapter |
Input AC110V-AC220V, output DC12V/1.5A |
||
|
Power Input |
DC12V±10%, 1A(Max) |
||
|
Power Consumption |
12W(Max) |
||
|
USB characteristics |
|||
|
Support operating system |
Windows 7,Windows8,Windows10,Mac osx,Linux |
||
|
Video Compression |
H.265, H.264, MJPG |
||
|
USB communication protocol |
UVC |
||
|
PTZ Parameter |
|||
|
Pan/Tile Rotation |
-170°~+170°, -30°~+30° |
||
|
Pan/Tile Controller Speed |
0.1~60°/Second, 0.1~30°/Second |
||
|
Preset Speed |
Pan:60°/Second, Tilt: 30°/Second |
||
|
Preset Numbers |
255 Points Preset (10 points By Remote Controller) |
||
|
Other Parameter |
|||
|
Working Voltage |
12V |
||
|
Working current |
0.25A(max) |
||
|
Power Consumption |
2.5W(max) |
||
|
Storage Temperature |
-10℃~+60℃, 20%~95% |
||
|
Working Temperature |
-10℃~+50℃, 20%~80% |
||
|
Dimension |
156.8mm×112.6mm×139.5mm |
||
|
Weight |
About 1kg |
||
|
Usage |
Indoor Only |
||
|
Package |
12V/1.5A Power supply, Remote Controller, Manual, Warranty Card, USB2.0 Cable |
||
|
Accessories Optional |
Mount (Extra Cost) |
||
