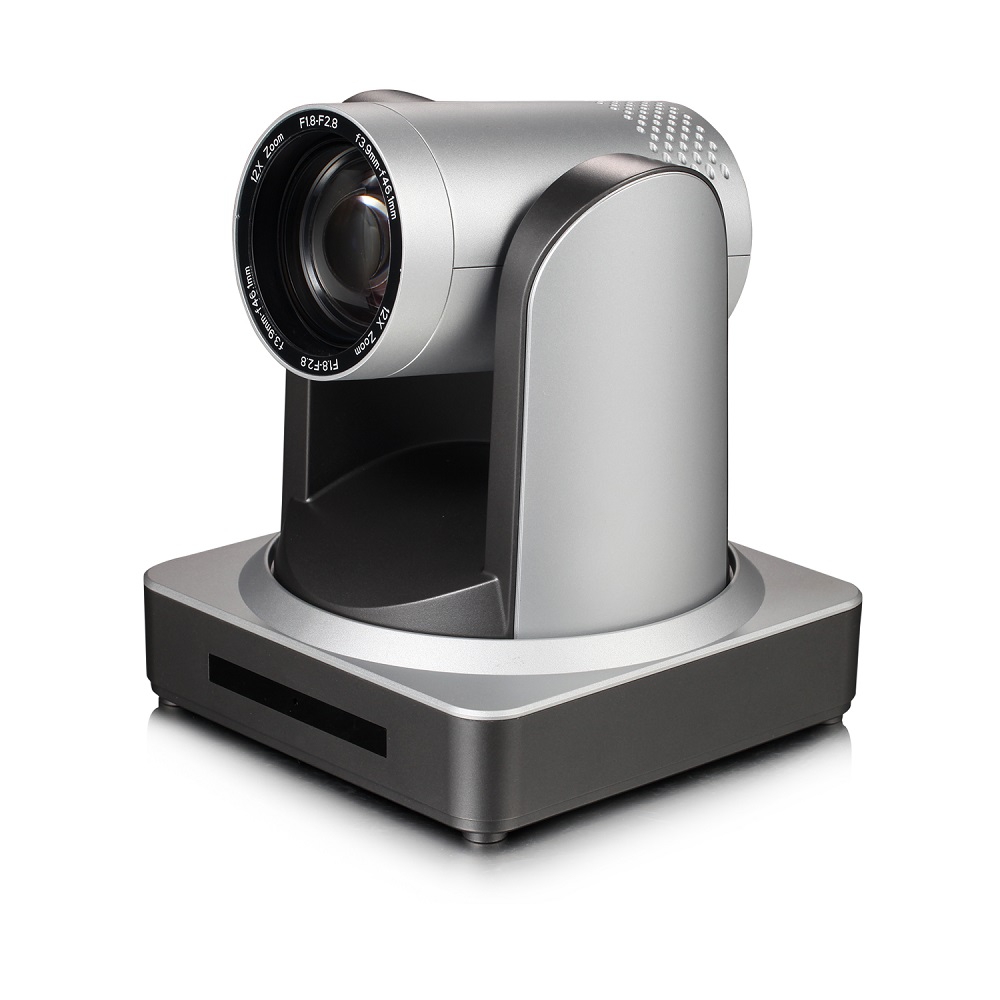

Camera Minrray UV510A-20-U3
Mô tả ngắn
Camera Minrray UV510A-20-U3:
FULL HD Conferencing Camera, 1080P/2MP
Lens: 20X optical Zoom

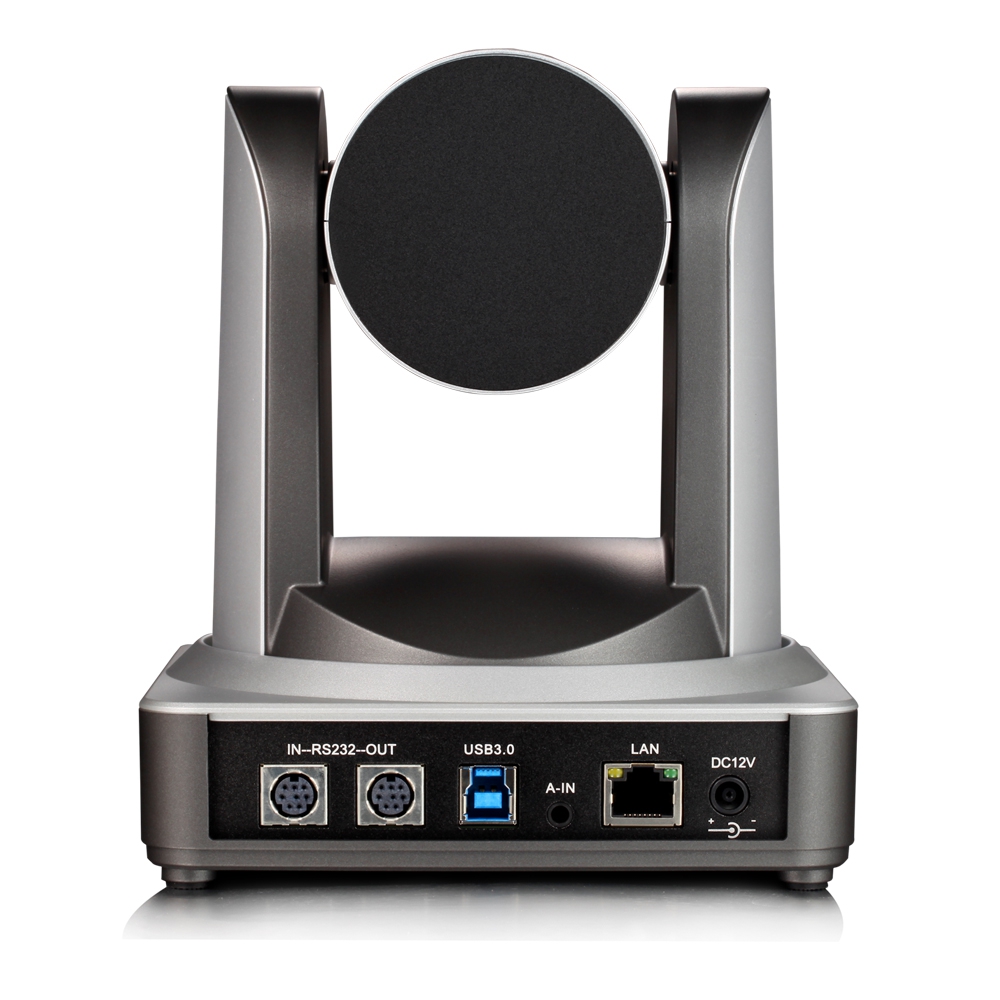

Interface: USB3.0, LAN, RS232, A-IN
Hotline: 0918 642 886
- Superb High-definition Image
UV510A employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
- Leading Auto Focus Technology
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
- Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
- Audio Input Interface (for future development)
Support16000,32000,44100,48000sampling frequency and AAC,MP3,PCM audio coding.
- Wide-range, Quiet and Quick Pan/Tilt Mechanism
By adopting step driving motor mechanism, UV510A camera works extremely quiet and moves smoothly .
- Multiple Audio/Video compression
Support H.264/H.265 video compression;AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.
- Multiple Network Protocol
Support ONVIF,RTSP,RTMP protocols and support RTMP push mode,easy to link streaming media server (Wowza,FMS) - RS-232 Cascade Function
Support RS-232 cascade function which is convenient for installation.
- Wide Application
Tele-education,lecture capture,Webcasting, Videoconferencing,Tele-training,Tele-medicine, Interrogation and Emergency command systems.
- Low-power sleep function
Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode.
|
Model |
UV510A-05 |
UV510A-10 |
UV510A-12 |
UV510A-20 |
|
|
Camera Parameter |
|||||
|
Optical Zoom |
5X f＝3.6～18mm |
10X f＝4.7～47mm |
12X f＝3.9～46.1mm |
20X f＝5.2～98mm |
|
|
Sensor |
1/2.8 inch high quality HD CMOS sensor |
||||
|
Effective Pixels |
16: 9, 2.07 megapixel |
||||
|
Video Format |
DVI(HDMI)/SDI video format 1080P60/50/30/25/59.94/29.97；1080I60/50/59.94；720P60/50/30/25/59.94/29.97 USB3.0 interface video format 1) USB3.0: 1920X1080P60/50/30/25；1280X720P30/25/15/10 ；960X540P30 ；640X360P30 2) USB3.0 compatible with USB2.0: 960X540P30；640X360P30；1280X720P10/15；720X576P30；720X480P30 USB2.0 interface video format:176×144/320×240/320×180/352×288/640×480/720×480/720×576/640×360 800X600/960X540/1024X576/1024X768/1280X720/1920X1080 P30/25/20/15/10/5 |
||||
|
View Angle |
16.3°(tele)–80.9°(wide) |
6.43°(tele)–60.9°(wide) |
6.3°(tele)–72.5°(wide) |
3.3°(tele)–54.7°(wide) |
|
|
AV |
F1.6 – F3.0 |
F1.6 – F3.0 |
F1.8 – F2.4 |
F1.6 – F3.5 |
|
|
Digital Zoom |
10X |
||||
|
Minimum Illumination |
0.5Lux (F1.8, AGC ON) |
||||
|
DNR |
2D & 3D DNR |
||||
|
White Balance |
Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K |
||||
|
Focus/Aperture/Electronic Shutter |
Auto/Manual |
||||
|
BLC |
ON/OFF |
||||
|
WDR |
OFF/ Dynamic level adjustment |
||||
|
Video Adjustment |
Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve |
||||
|
SNR |
>55dB |
||||
|
Input/Output Interface |
|||||
|
Video Interfaces |
UV510A-05/10/12/20-ST Model:HDMI,3G –SDI,LAN, RS232（Ring through RS232 output）、RS485、A-IN、5G WiFi（Optional） UV510A-05/10/12/20-U2 Model:U2,LAN,RS232（Ring through RS232 output）、A-IN UV510A-05/10/12/20-U3 Model:U3,LAN,RS232（Ring through RS232 output）、A-IN UV510A-05/10/12/20-HD Model:HDBaseT、LAN 、A-IN UV510A-05/10/12/20-HDMIModel:HDMI、LAN、RS232（input） |
||||
|
Video Compression Format |
H.264, H.265,Dual stream output |
||||
|
Control Protocol |
VISCA/Pelco-D/Pelco-P;Baud Rate:115200/9600/4800/2400bps |
||||
|
Audio Input Interface |
Double track 3.5mm linear input; |
||||
|
Audio Compression Format |
AAC/MP3/PCM Audio compression |
||||
|
HD IP Interface |
100M IP port(100BASE-TX); Support VISCA protocol control through IP port. |
||||
|
Network Protocol |
RTSP,RTMP,ONVIF,GB/T28181 |
||||
|
Power Interface |
HEC3800 outlet (DC12V) |
||||
|
PTZ Parameter |
|||||
|
Pan/TiltRotation |
±170°,-30°～+90° |
||||
|
Pan Control Speed |
0.1 -60°/sec |
||||
|
Tilt Control Speed |
0.1-30°/sec |
||||
|
Preset Speed |
Pan: 60°/sec, Tilt: 30°/sec |
||||
|
Preset Number |
255 presets (10 presets by remote controller) |
||||
|
Other Parameter |
|||||
|
Supply Adapter |
AC110V-AC220V to DC12V/1.5A |
||||
|
Dimension |
150mmX150mmX167.5mm |
||||
|
Weight |
1.4KG |
||||
|
Remote Operation (IP) |
Remote Upgrade, Reboot and Reset |
||||
