Camera Minrray UV1301
Mô tả ngắn

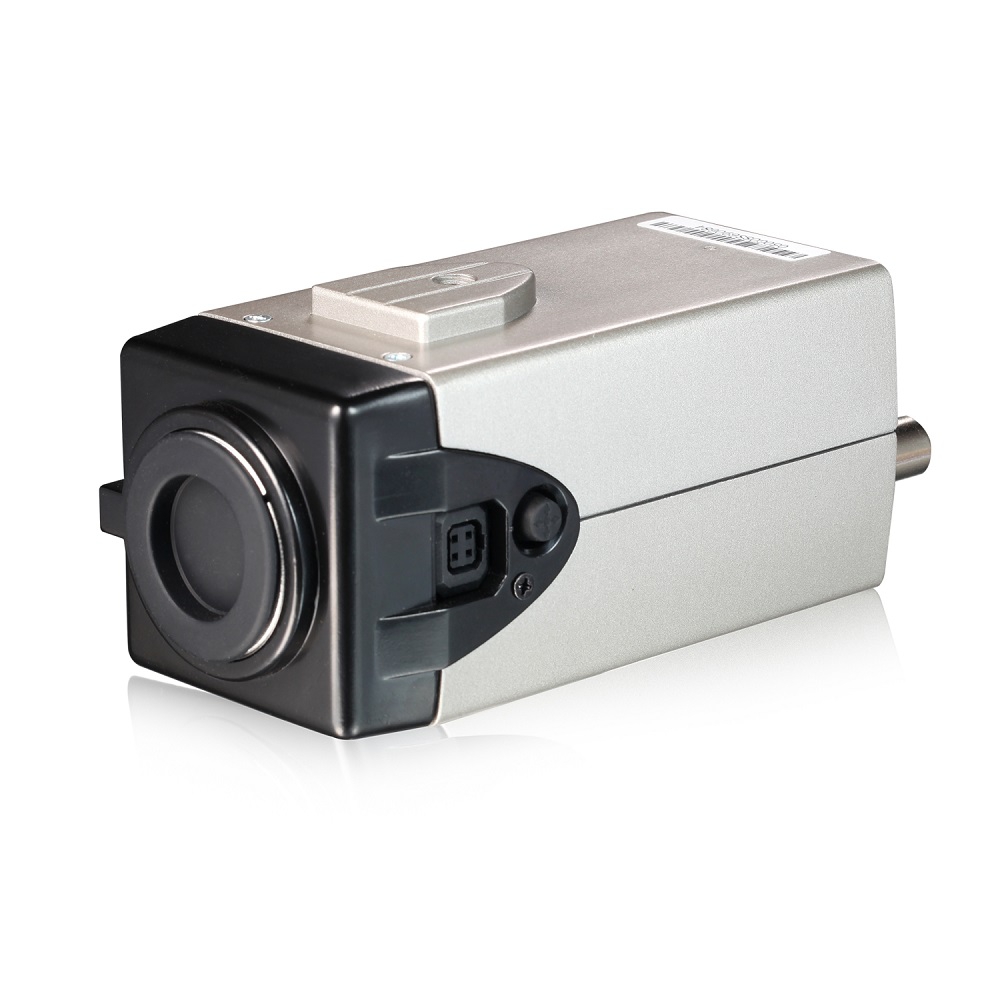

Camera Minrray UV1301:
FULL HD, HD Conferencing Camera, 1080P/2MP
Lens: No Lens

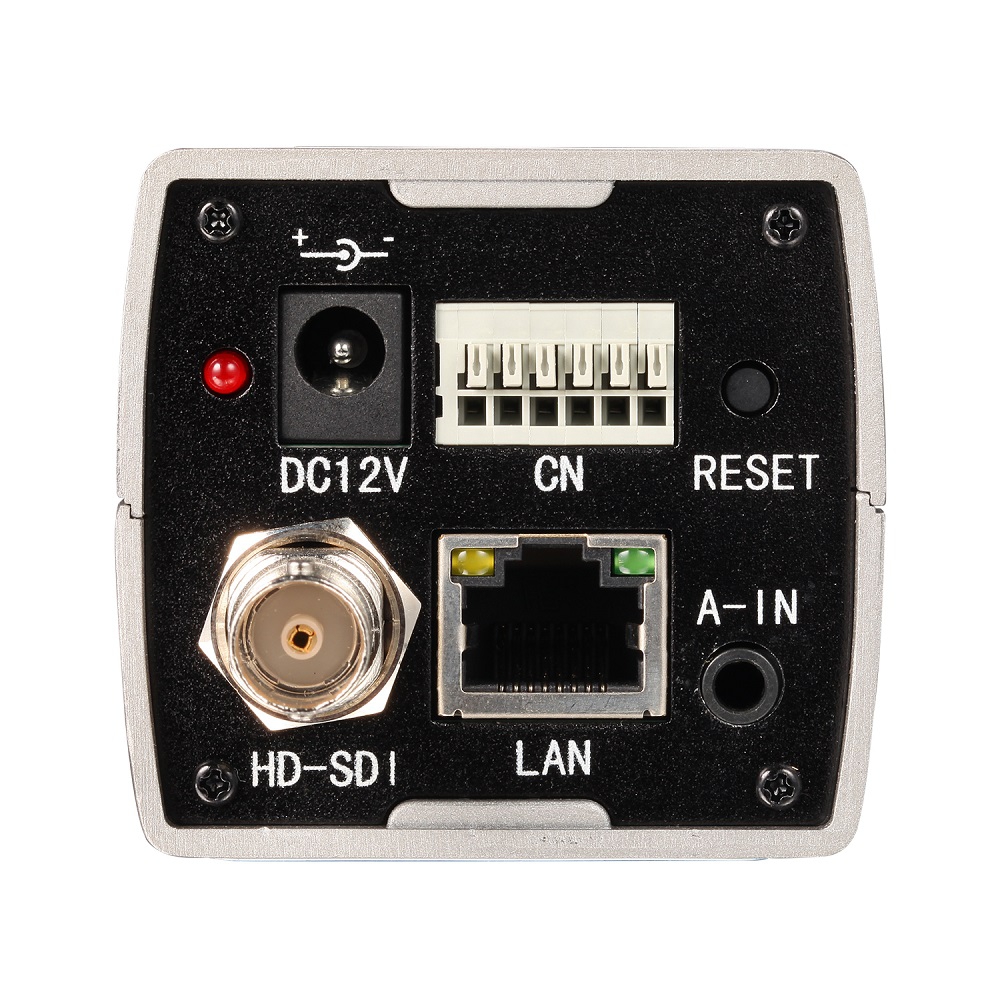

Interface: 3G-SDI, LAN, RS485, Audio-in
Hotline: 0918 642 886
- Superb High-definition Image
It employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
- Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
- Multi-Format Video Outputs
Multiple interfaces include: 3G-SDI and LAN. The 3G-SDI is available for 100m transmission at 1080p60 format.
- Multiple Video Compression
Support H.264/H.264+ video compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channels 1920x1080p with 30fps compression.
- Support Multiple Control Protocol.
Support VISCA, PELCO-D, PELCO-P protocols which can also be automatically recognized. Support Visca protocol control through IP port.
- Wide Application
Tele-education, lecture capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.
- Multiple Network Protocol
Support ONVIF, RTSP, RTMP protocols and support RTMP push mode, easy to link streaming media server (Wowza,FMS)
|
Model |
UV1301 |
||||||||||||||||||||||||||
|
Camera Parameter |
|||||||||||||||||||||||||||
|
Sensor |
1/2.8 inch high quality HD CMOS sensor |
||||||||||||||||||||||||||
|
Effective Pixels |
16: 9 2.07 megapixel |
||||||||||||||||||||||||||
|
Video Format |
1080P60/30/25/59.94/29.97 1080I60/50/59.94 720P60/30/25/59.94/29.97 |
||||||||||||||||||||||||||
|
Auto Iris |
DC driving mode |
||||||||||||||||||||||||||
|
Digital Zoom |
X5 |
||||||||||||||||||||||||||
|
Minimum Illumination |
0.5Lux(F1.8, AGC ON) |
||||||||||||||||||||||||||
|
DNR |
2D﹠3D DNR |
||||||||||||||||||||||||||
|
White Balance |
Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K |
||||||||||||||||||||||||||
|
Focus |
Auto/Manual |
||||||||||||||||||||||||||
|
Aperture |
Auto/Manual |
||||||||||||||||||||||||||
|
Electronic Shutter |
Auto/Manual |
||||||||||||||||||||||||||
|
BLC |
ON/OFF |
||||||||||||||||||||||||||
|
WDR |
OFF/ Dynamic level adjustment |
||||||||||||||||||||||||||
|
Video Adjustment |
Brightness,Color, Saturation,Contrast,Sharpness,B/W mode,Gamma curve |
||||||||||||||||||||||||||
|
SNR |
>55dB |
||||||||||||||||||||||||||
|
Input/output Interface |
|||||||||||||||||||||||||||
|
Video Interfaces |
3G-SDI |
||||||||||||||||||||||||||
|
Image Code Stream |
Dual stream output |
||||||||||||||||||||||||||
|
Video Compression Format |
H.264, H.265 |
||||||||||||||||||||||||||
|
Control Interface |
RS-485 |
||||||||||||||||||||||||||
|
Control Protocol |
VISCA/Pelco-D/Pelco-P;Baud Rate: 115200/9600/4800/2400bps |
||||||||||||||||||||||||||
|
5 Control Key |
UP/DOWN/LEFT/RIGHT/CONFIRM keys for OSD setting |
||||||||||||||||||||||||||
|
HD IP Interface |
100M IP port (10/100BASE-TX), Support VISCA protocol control through IP port. |
||||||||||||||||||||||||||
|
Network Protocol |
RTSP,RTMP,ONVIF,GB/T28181 |
||||||||||||||||||||||||||
|
Power Interface |
HEC3800 power socket(DC12V) |
||||||||||||||||||||||||||
Other Parameter |
|||||||||||||||||||||||||||
