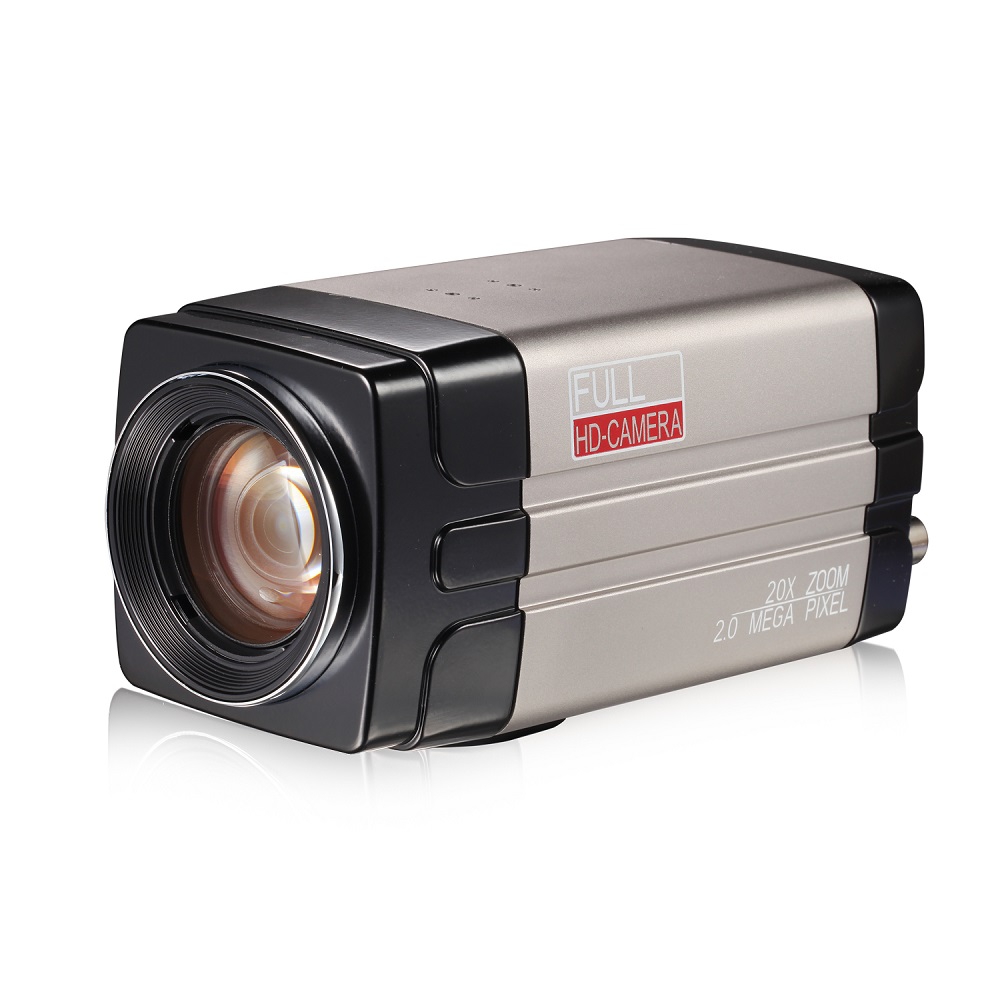

Camera Minrray UV1201S-S20
Mô tả ngắn
Camera Minrray UV1201S-S20:
FULL HD, HD Conferencing Camera, 1080P/2MP
Lens: 20X Optical Zoom Lens
Interface: HDMI, 3G-SDI, LAN, RS485
Hotline: 0918 642 886
- Superb High-definition Image
UV1201 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
- Leading Auto Focus Technology
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
- Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.

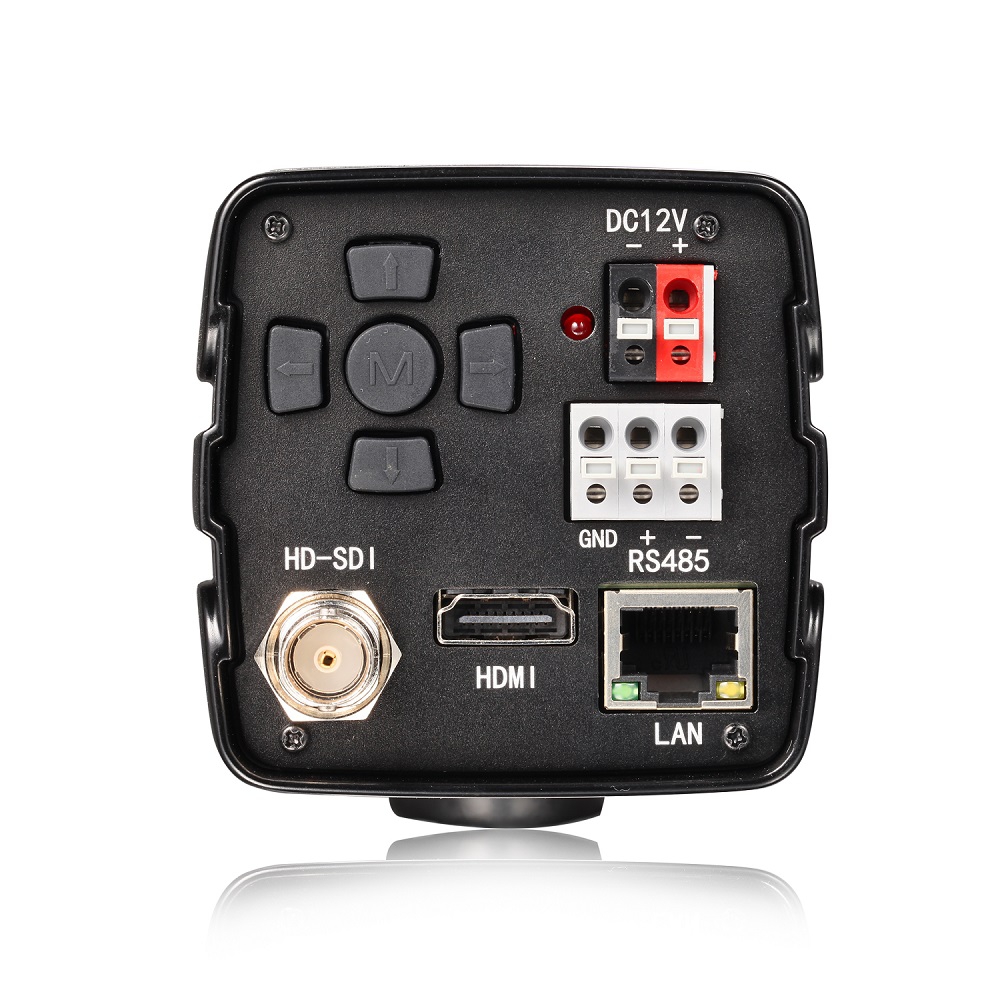

- Multi-Format Video Outputs
Multiple interfaces include: HDMI, 3G-SDI and LAN.The 3G-SDI is available for 100m transmission at 1080p60 format.
- Multiple Video Compression
Support H.264/H.264+ video compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channels 1920x1080p with 30fps compression.
- Multiple Network Protocol
Support ONVIF,RTSP,RTMP protocols and support RTMP push mode, easy to link streaming media server (Wowza,FMS)
- Support Multiple Control Protocol
Support VISCA,PELCO-D,PELCO-P protocols which can also be automatically recognized.Support Visca protocol control through IP port.
- Wide Application
Tele-education,Lecture Capture,Webcasting,Videoconferencing,Tele-training,Tele-medicine,Interrogation and Emergency command systems.
|
Model |
UV1201-S20 |
UV1201-T20 |
|
|
Camera Parameter |
|||
|
Sensor |
1/2.8 inch high quality HD CMOS sensor |
||
|
Effective Pixels |
16: 9, 2.07 megapixel |
||
|
Video Format |
1080P60/50/30/25/59.94/29.97;1080I60/50/59.94; 720P60/50/30/25 /59.94/29.97 |
||
|
Optical Zoom |
20X optical zoom, f＝5.2～98mm |
20X optical zoom, f＝4.7～94mm |
|
|
View Angle |
5.5°(tele)–54.7°(wide) |
2.9°(tele)–55.4°(wide) |
|
|
Aperture |
F1.6 ～ F3.5 |
F1.6 ～ F3.5 |
|
|
Digital Zoom |
10X |
||
|
Minimum Illumination |
0.5Lux (F1.8, AGC ON) |
||
|
DNR |
2D & 3D DNR |
||
|
White Balance |
Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K |
||
|
Focus |
Auto/Manual |
||
|
Aperture |
Auto/Manual |
||
|
Electronic Shutter |
Auto/Manual |
||
|
BLC |
ON/OFF |
||
|
WDR |
OFF/ Dynamic level adjustment |
||
|
Video adjustment |
Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve |
||
|
SNR |
>55dB |
||
|
Input/output Interface |
|||
|
Video Interfaces |
HDMI,3G-SDI |
||
|
Image Code Stream |
Dual stream output |
||
|
Video Compression Format |
H.264, H.265 |
||
|
Control Protocol |
Protocol:VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps |
||
|
HD IP Interface |
100M IP port (10/100BASE-TX),Support Visca protocol control through IP port. |
||
|
Network Protocol |
RTSP/RTMP, ONVIF |
||
|
Power Interface |
5.0 Card line socket (DC12V) |
||
|
Other Parameter |
|||
|
Power Adaptor |
AC110V-AC220V to DC12V/1A |
||
|
Input Voltage |
DC12V±10% |
||
|
Input Current |
400mA(Max) |
||
|
Consumption |
4.8W (Max) |
||
|
Store Temperature |
-10℃～+60℃ |
||
|
Store Humidity |
20% – 95% |
||
|
Working Temperature |
-10℃～+50℃ |
||
|
Working Humidity |
20%–80% |
||
|
Dimension |
155.7mmX70mmX70mm |
||
|
Weight |
0.7KG |
||
|
Application |
Indoor |
||
|
Remote Operation (IP) |
Remote Upgrade, Reboot and Reset |
||
|
Accessory |
12V/1A Power supply,User Manual,Warranty card,brackets(optional) |
||
