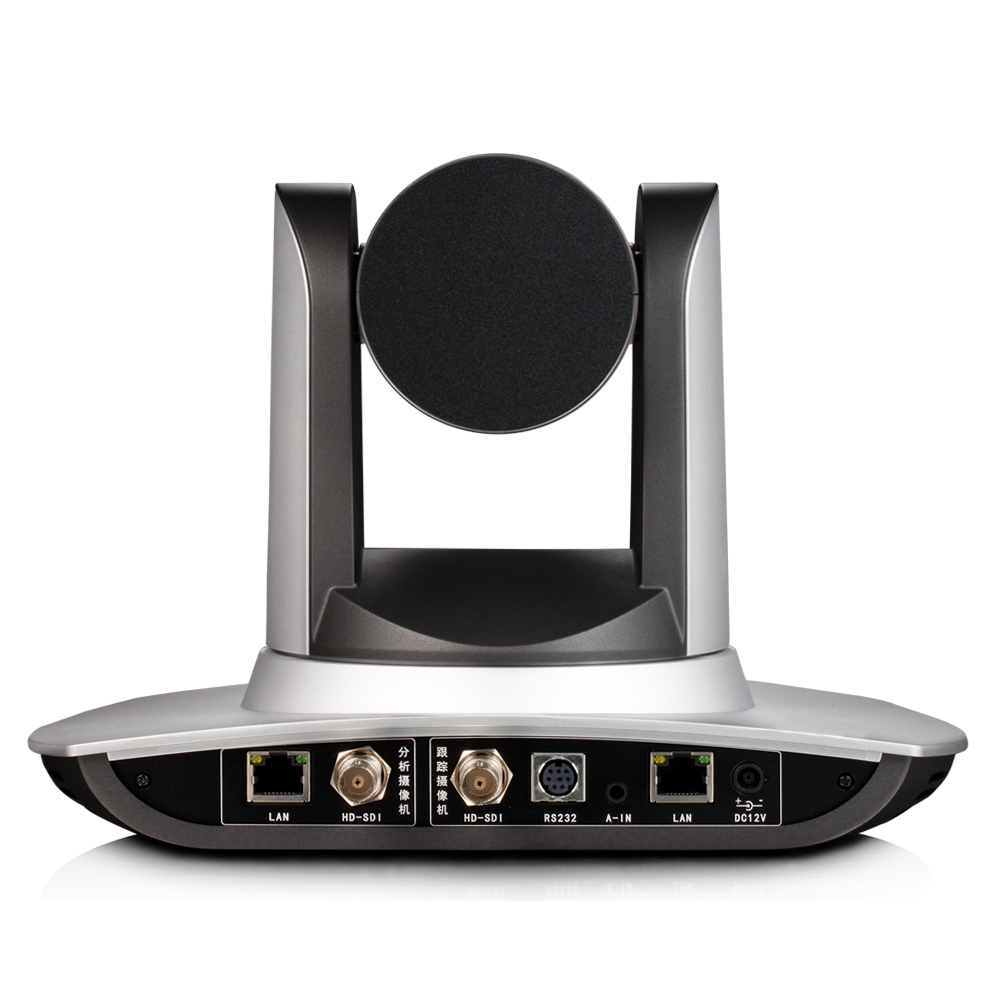

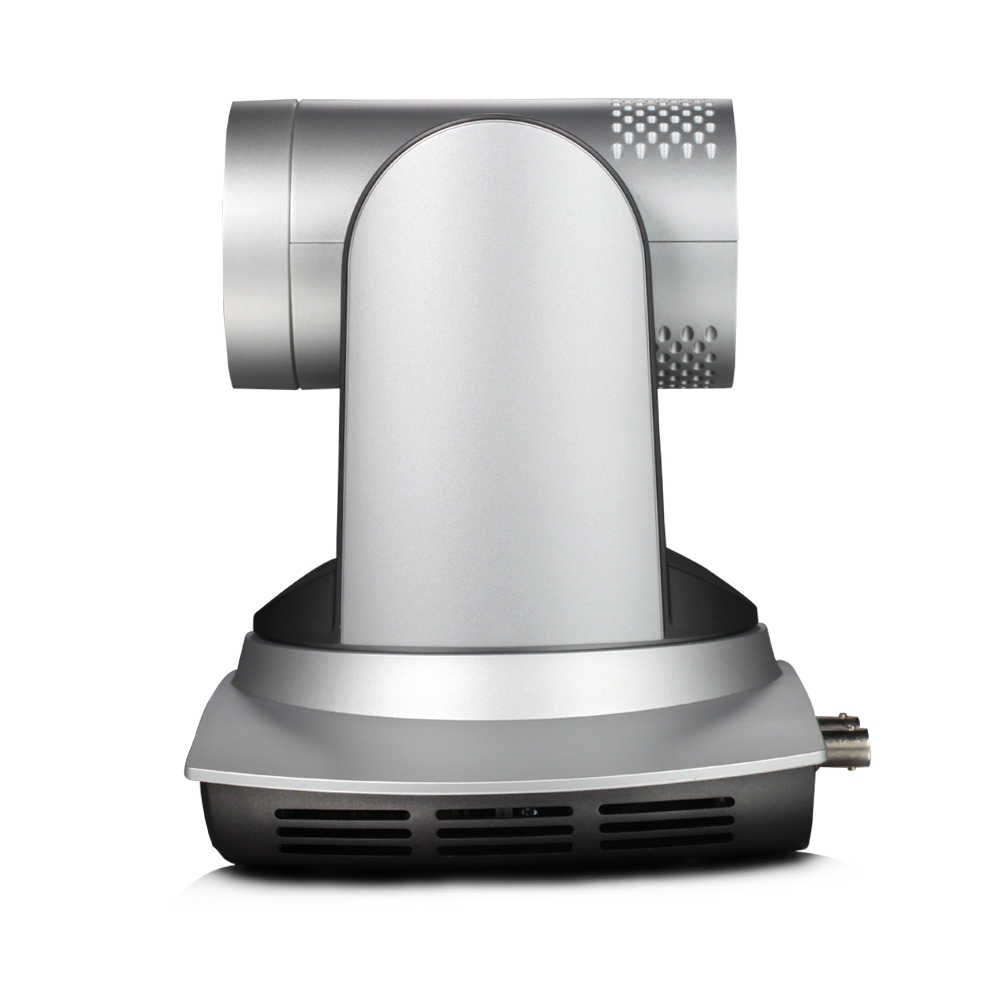

Camera Minrray UV100T-12
Mô tả ngắn
Camera Minrray UV100T-12:
Educational Teacher Auto-tracking Camera, 1080P/2MP
Lens: 12X optical Zoom
Interface: SDI, LAN, RS232, A-IN
Hotline: 0918 642 886
- Superb High-definition Image
UV100 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60 fps. - Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video.Advanced 2D/3D noise reduction technology is used to further reduce the noise, while ensuring image sharpness. - Multiple Video Compression
Support H.264/H.264+ video compression. Support compression of resolution up to 1920×1080 with frame up to 60 fps and 2 channels 1920x1080p with 30 fps compression.
- Wide-range, Quiet and Quick Pan/Tilt Mechanism
By adopting step driving motor mechanism, UV100 camera works extremely quiet and moves smoothly without any noises. - Multiple Network Protocol
Support ONVIF,RTSP,RTMP protocols and support RTMP push mode. - Low-power Sleep Function
Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode. - Audio Input Interface
Support 16000,32000,44100,48000 sampling frequency and AAC,MP3,PCM audio coding.
|
Parameters/Model |
UV100T/ S-12 |
UV100T/ S-20 |
|
Tracking Camera and Lens Parameter |
||
|
Sensor |
1/2.8 inch high quality HD CMOS sensor |
|
|
Effective Pixels |
2.07 megapixel; 16:9 |
|
|
Video Signals |
1080P60/50/30/25/59.94/29.97 ,1080I60/50/59.94,720P60/50/30/25 / 59.94 /2 9.97 |
|
|
Optical Zoom |
12x optical zoom f＝3.9～46.1mm |
20x optical zoom f＝4.7～94mm |
|
View Angle |
6.3°(tele)～72.5°(wide) |
2.9°(tele)～55.4°(wide) |
|
Iris |
F1.8 ～ F2.4 |
F1.6 ～ F3.5 |
|
Digital Zoom |
X10 |
|
|
Minimum Illumination |
0.5Lux(F1.8, AGC ON) |
|
|
Digital Noise Reduction |
2D﹠3D digital noise reduction |
|
|
White Balance |
Manual/Auto/One Push/ 3000K/ 4000K/5000K/6500K |
|
|
Focus |
Auto/Manual |
|
|
Aperture |
Auto/Manual |
|
|
Electronic Shutter |
Auto/Manual |
|
|
BLC |
ON/OFF |
|
|
WDR |
OFF/Dynamic Range adjustment |
|
|
Video Adjustment |
Brightness,Color,Saturation,Contrast,Sharpness,Gamma curve |
|
|
SNR |
>55dB |
|
|
Panoramic Camera |
||
|
Sensor |
1/3 inch high quality HD CMOS sensor |
|
|
Effective Pixels |
2.1 megapixel |
|
|
Lens |
Manual Focus |
|
|
View Angle(D/H/V) |
122°/98°/73° |
|
|
Input/Output Interface and Protocols |
||
|
Video Interface |
3G-SDI |
|
|
Network Interface |
100M network interface (10/100BASE-TX) 5G WiFi(optional), Support VISCA protocol control through IP port |
|
|
Network Protocol |
RTSP,RTMP,ONVIF,GB/T28181 |
|
|
Compress Image Code Stream |
Dual stream output |
|
|
Video Compress Format |
H.264,H.265 |
|
|
Control Signal Interface |
RS-232 |
|
|
Control Protocol |
VISCA/Pelco-D/Pelco-P Baud Rate:115200/9600/4800/2400bps |
|
|
Audio Input Interface |
Dual audio channel 3.5mm linear input |
|
|
Audio Compress Format |
AAC,MP3,PCM |
|
|
Power Interface |
HEC3800 power jacket(DC12V) |
|
|
Pan Tilt Parameter |
||
|
Pan Rotation |
-170°～+170° |
|
|
Tilt Rotation |
-30°～+90° |
|
|
Pan Control Speed |
0.1 ～100°/s |
|
|
Tilt Control Speed |
0.1～45°/s |
|
|
Preset Speed |
Pan: 100°/s,Tilt:45°/s |
|
|
Preset Number |
User can set up to 255 presets(remoter 10 presets) |
|
|
Other Parameters |
||
|
Supply Adapter |
Input AC110V-AC220V to DC12V/2.5A |
|
|
Input Voltage |
Output DC12V±10% POE power supply optional |
|
|
Input Current |
1.5A(Max.) |
|
|
Consumption |
18W(Max.) |
|
|
Store Temperature |
-10℃～+60℃ |
|
|
Store Humidity |
20%～95% |
|
|
Working Temperature |
-10℃～+50℃ |
|
|
Working Humidity |
20%～80% |
|
|
Dimension(WxHxW) |
254mmX144mmX174mm |
|
|
Weight(appr.) |
1.54kg |
|
|
Application |
Indoor |
|
|
Remote Maintenance (LAN) |
Remote Update,Remote Reboot,Remote Reset |
|
|
Accessory |
12V/2.5A power supply adapter,RS232 control cable,Remote Controller,User Manual,Warranty Card，brackets(optional) |
|
