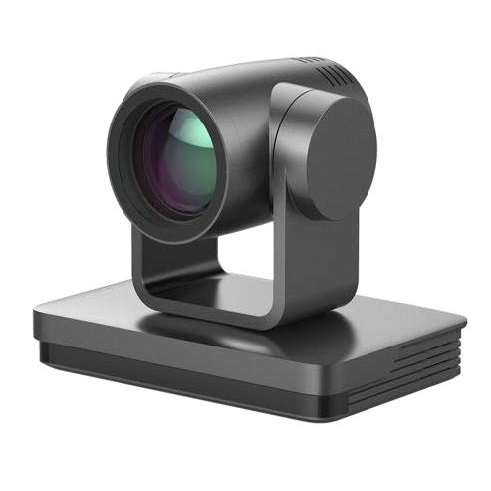

Ultra HD 4K PTZ Camera UV420
Mô tả ngắn
- 1/2.8 & 1/2.5 inch high quality 4K SONY CMOS sensor, 8.51 megapixel
- Resolution is up to 4K/60fps and compatible with 1080P, 720P and other resolutions
- 12X and 5X optical zoom lens, with 70° & 80° FOV without distortion
- HDMI, USB3.0 and LAN support audio video output
Hotline: 0918 642 886
UV420 Ultra HD 4K camera is featured with advanced ISP processing technology and algorithm to provide high quality image and smooth motion. It supports H.264/H.265 encoding which makes motion video more fluent and clear under low bandwidth conditions.
Features:
- 4K Ultra HD: 1/2.8 & 1/2.5 inch high quality 4K SONY CMOS sensor; 8.51 megapixel, resolution is up to 4K (3840×2160) and compatible with 1080P, 720P and other resolutions. 4K 60FPS
- Optical Zoom Lens: 12X and 5X optical zoom lens, with 70° & 80° FOV without distortion.
- Leading Auto Focus Technology: Advanced and leading algorithm enables the camera auto focus fast and accurately.
- Low Noise and High SNR: Low noise CMOS ensures super high SNR image. The advanced 2D/3D noise reduction technology reduces the noise while ensuring high image clarity.
- Multiple Video Outputs: HDMI, USB3.0 and LAN support audio video output
- Multiple USB Compression Encoding Format: YUY2,MJPEG,H.264,NV12 video encoding formats
- Multiple Audio Compression Standard: Audio-in supports AAC, MP3 and G.711A audio compression; 8000,16000,32000,44100,48000 sampling frequency
- Built-in gravity sensor: Built-in gravity sensor supports PTZ auto-flip function, easy to install.
- Multiple network protocol: Supports ONVIF, GB/T28181, RTSP, RTMP protocols; RTMP push mode, easy to be connected to streaming server (Wowza,FMS); RTP multicast mode; VISCA control protocol
- Control Interface: RS422 (compatible with RS485); RS232 in & out; RS232 cascade connection
- Multiple Control Protocol: Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
- Multiple preset: Up to 255 presets(10 presets for remote control).
- IR & Wireless Remote Control: IR remote control (default)/Wireless remote control (optional); 2.4G wireless remote control is not affected by the angle, distance or infrared interference. Far-end-control is also available.
- Multiple Applications: Online-education, Lecture Capture, Broadcasting, Video conferencing, Tele-medicine, Unified Communication, Emergency command and control systems, etc.
|
Model |
UV420A |
UV420B |
||||
|
Optical Zoom |
12X |
5X |
||||
|
FOV |
Horizontal: 6.55˚（tele）～ 69.4˚（wide） vertical: 3.66˚（tele）～ 42.8˚（wide） |
Horizontal: 26.51°（tele）～79.18°（wide） vertical: 15.29°（tele）～49.22°（wide） |
||||
|
Aperture |
F1.6 – F2.8±5% |
F2.0 – F2.8±5% |
||||
|
Image Sensor |
1/2.8 Inch SONY CMOS Sensor |
1/2.5 Inch SONY CMOS Sensor |
||||
|
Effective pixels |
8.51M; 16:9 |
8.51M; 16:9 |
||||
|
Video Format |
HDMI Video Output Format: 4KP60, 4KP50, 4KP30, 4KP25, 1080P60, 1080P50, 1080i 60, 1080i 50, 1080P30, 1080P25, 720P60, 720P50 USB3.0 Video Output Format: YUY2/NV12: 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 MJPEG/H.264: 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 USB3.0 downward compatible USB2.0: YUY2/NV12: 640×360P30, 640×480P30, 320×176P30 MJPEG/H.264: 3840×2160P30, 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 |
|||||
|
Minimum Illumination |
0.05Lux (F1.8, AGC ON) |
|||||
|
DNR |
2D & 3D DNR |
|||||
|
White Balance |
Auto / Manual/ One Push/ Specified Color Temperature |
|||||
|
Focus |
Auto / Manual/ One Push |
|||||
|
exposure mode |
Auto/ Manual / Shutter Priority / Aperture Priority / Brightness priority |
|||||
|
Aperture |
F1.8 – F11, CLOSE |
|||||
|
shutter speed |
1/25 – 1/10000 |
|||||
|
BLC |
OFF/ON |
|||||
|
Dynamic range |
OFF/ Dynamic Level Adjustment |
|||||
|
Video Adjustment |
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
|||||
|
SNR |
≥50dB |
|||||
|
Interface Features |
||||||
|
Interfaces |
HDMI, LAN(POE), USB3.0（Type B, compatible with USB2.0）, A-IN, RS232-in & out; RS422（Compatible with RS485）, Dial switch, DC12V, Power Switch |
|||||
|
Video Compression |
LAN: H.264, H.265 USB 3.0: MJPG, H264, YUY2, NV12 |
|||||
|
Audio-in Interface |
Double track 3.5mm linear Input |
|||||
|
Audio out |
HDMI, LAN, USB3.0 |
|||||
|
Audio Compression |
AAC, MP3, G.711A |
|||||
|
LAN |
10M/100M/1000M adaptive Ethernet port, support POE and audio/video output |
|||||
|
Network Protocol |
RTSP, RTMP, ONVIF, GB/T28181, VISCA Control Protocols, Remote Upgrade, reboot and reset |
|||||
|
Control Interface |
RS232-IN, RS232-OUT, RS422 (RS485) |
|||||
|
Serial Protocol |
VISCA/ Pelco-D / Pelco-P; Baud rare: 115200/38400/9600/4800/2400 |
|||||
|
USB Communication Protocol |
UVC（video），UAC（audio） |
|||||
|
Power Interface |
HEC3800 (DC12V) |
|||||
|
Power Adapter |
In: AC110V-AC220V ; Out: DC12V/2.5A |
|||||
|
Input Voltage |
DC12V±10% |
|||||
|
Input Current |
<1A |
|||||
|
Power Consumption |
<12W |
|||||
|
PTZ Parameters |
||||||
|
Pan Rotation |
-170°～+170° |
|||||
|
Tilt Rotation |
-30°～+90° |
|||||
|
Pan Control Speed |
0.1°/s～120°/s |
|||||
|
Tilt Control Speed |
0.1°/s～80°/s |
|||||
|
Preset Speed |
Pan: 120°/s，Tilt: 80°/s |
|||||
|
Preset Number |
255 Presets (10 presets by remote control) |
|||||
|
Other Parameters |
||||||
|
Storage Temperature |
-10℃～+60℃ |
|||||
|
Storage Humidity |
20%～95% |
|||||
|
Working Temperature |
-10℃～+50℃ |
|||||
|
Working Humidity |
20%～80% |
|||||
|
Dimension |
181（L）mm × 115mm（W）× 149mm（H） |
|||||
|
Usage |
1.15 kg |
|||||
|
Storage Temperature |
Indoor |
|||||
|
Accessories |
||||||
|
Standard |
Power supply and adapter,RS232 Cable,USB3.0 Cable, IR remote control, User Manual |
|||||
|
Optional |
Wall / Ceiling Mount |
|||||
