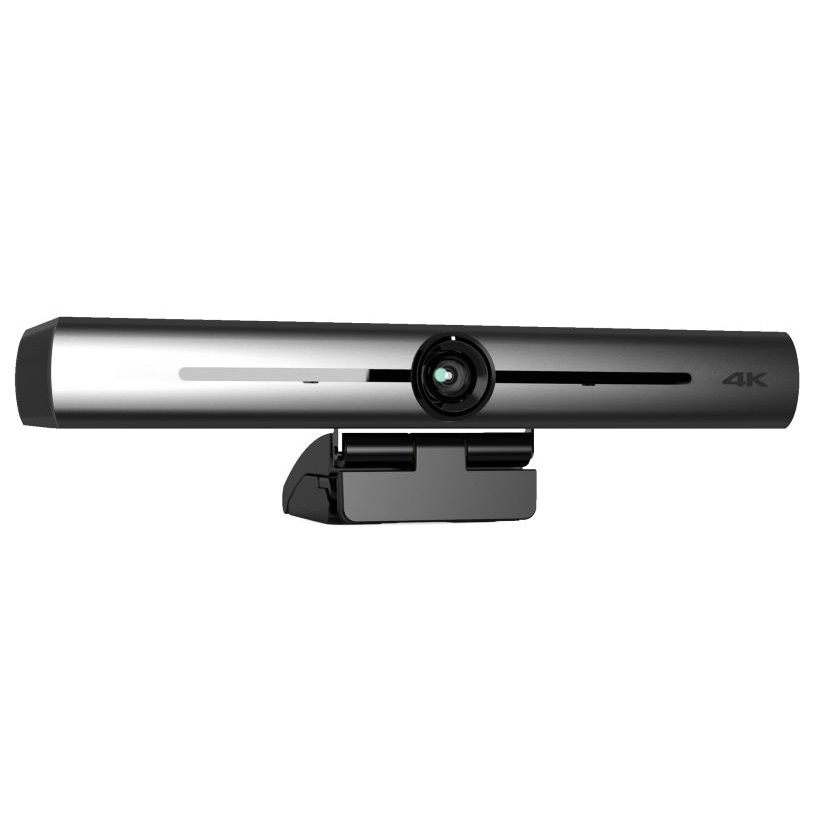

AI 4K UHD Video Conference Camera MG200C

AI 4K UHD Video Conference Camera MG200C

Mô tả ngắn

- 1/2.5 inch, 8 million pixels high-quality CMOS sensor
- Supports 4K UHD; provides 4K@ 30fps MJPG video resolution at most
- EPTZ and 4X digital Zoom
- Includes 2 built-in pickups
- The USB3.0 port support main stream and sub-stream output at the same time

liên hệ mua hàng
Hotline: 0918 642 886

MG200C is a new 4K UHD ePTZ video conference camera. It is built with AI functions, which can automatically frame all people in the meeting and make them at the middle of the scene.It also has perfect functions and superior performance, which adopts advanced ISP processing algorithms so as to provide vivid images with evenly clear brightness, strong color layering, high resolution, and fantastic color rendition. Easy and convenient to install and maintain, stable and reliable.



Features:

- 4K UHD: It employs 1/2.5 inch, 8 million pixels high-quality CMOS sensor; supports 4K UHD; provides 4K@ 30fps MJPG video resolution at most; and provides clear UHD video and vivid expressions and movements. At the same time, it is compatible with 1080p and 720p resolution.

- EPTZ: EPTZ and 4X digital Zoom

- Built-in pickup: Includes 2 built-in pickups, all-round pickup. Antique noise suppression algorithm ensures your voice be perfect. The effective pickup distance is up to 5 meters.

- Dual stream output: The USB3.0 port support main stream and sub-stream output at the same time.

- Auto framing: With excellent facial detection algorithm, automatically adjust the zoom according to the number of people in the meeting. It can frame all the meeting people and make them shown in the middle of the scene.

- Wide view angle without distortion: 83°/ 87°/ 120° super wide view angle lens for options

- Low Noise and High SNR: Low Noise CMOS effectively ensures high SNR of video. Image is still clear even under low light condition.

- Multiple Installations: Standard equipped with mold clamp. Easy to install on any devices, such as LCD screen, PC, table and tripod.

- Easy to Use: No need to download driver; USB Plug and play.

- Wide Applications: Personal video conferencing, enterprise video conferencing, unified collaboration and etc.





Model Number

AM

BM

HM





Camera Parameter





Image Sensor

1/2.5 Inch High Quality 4K CMOS Sensor





Effective Pixels

8.28MP 16:9





Video output port

1* USB3.0, Type B, support audio output over USB3.0





Audio input

2 built-in MIC pickups





View Angle

93.5°(D)/83°(H)/ 53.1°(V)

95°(D)/87°(H)/ 56°(V)

126°(D)/120°(H)/85°(V)





Video Format

Main stream: 3840×2160@30fps、1920×1080P@30fps/25fps、1280×720P@30fps/25fps, etc.

Sub-stream:1280×720P@30fps/25fps、640×480P@30fps/25fps;320×172P@30fps/25fps, etc.





Min Illumination

0.1Lux (F1.8, AGC ON)





Lens

f=3.5mm

f=3.24mm

f=2.72mm





Aperture

F2.0±5%

F2.1

F2.5





Digital zoom

4X





DNR

2D & 3D DNR





Ultra-low illumination

On/off





White Balance

Auto / Manual/ One Push/ 3000K/ 3500K/ 4000K/ 4500K/ 5000K/ 5500K/ 6000K/ 6500K/ 7000K





Focus

Auto / Manual/ One push Focus (available on AM series)





Exposure

Auto / Manual





Auto framing

On/off/sensitivity





Backlight compensation

On/off





Dual stream

On/off





SNR

>55dB





USB Feature



Operation Systems

Windows 7(1080p at the most), Windows 8.1, Windows 10 ; macOS™ 10.10 or higher, Linux (Require to support UVC.)



Video Compression format

YUY2, MJPG, H.264, H.265



 Audio over USB3.0

Support



USB communication protocol

UVC, UAC



PTZ control

Support EPTZ



Hardware requirement

2.4 GHz Intel@ Core 2 Duo processor or higher,2GB RAM or more,USB 2.0 /USB3.0 port ( USB 3.0 is needed for 4K)

Other Parameters

Input Voltage

5V

Input Current

1A(Max.)

Power consumption

5W(Max.)

Store Temperature

-10℃~+60℃

Store Humidity

20%~90%

Working

Temperature

-10℃~+50℃

Working Humidity

20%~80%

Dimension(W*H*D)

222mm×93.25mm×56.5mm

Weight

Around 0.53kg

Application

Indoor

Accessory

User Manual; Warranty card, remote controller, USB3.0 cable

Download
