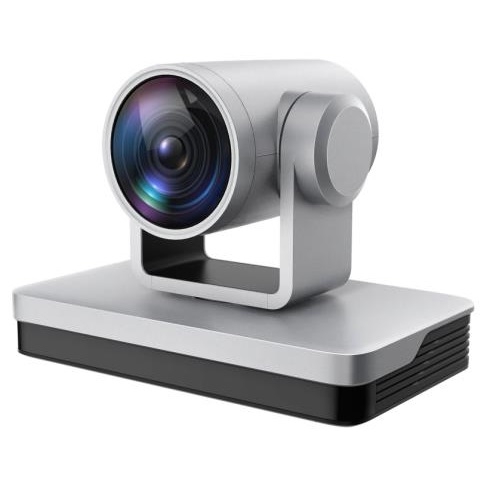

4K UHD PTZ Camera UV430A
Mô tả ngắn
- Built with SONY high quality CMOS sensor, with resolution up to 4K@60fps
- 12x optical zoom lens, with 80.4° FOV without distortion
- Fast, accurate and stable auto focus is achieved with leading auto focus algorithm
- With video 4k output from HDMI, USB3.0 and LAN at the same time
- Super high SNR image is achieved with low noise CMOS
Hotline: 0918 642 886
The UV430A series 4K ultra HD camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition.
Features:
- 4K Ultra HD Image: Built with SONY high quality CMOS sensor, with resolution up to 4K@60fps.
- Optical Zoom Lens: 12x optical zoom lens, with 80.4° FOV without distortion.
- Leading Auto Focus Technology: Fast, accurate and stable auto focus is achieved with leading auto focus algorithm.
- Low Noise and High SNR: Super high SNR image is achieved with low noise CMOS. The adoption of advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
- Multiple video output interfaces: With video 4k output from HDMI, USB3.0 and LAN at the same time.
- Multiple Audio/Video Compression Standard: Support H.264/H.265 video compression over LAN, support MJPG, H.264, YUY2 and NV12 over USB3.0 port, support AAC, MP3 and G.711A audio compression over A-in port.
- Audio Input Interface: Support 8000,16000,32000,44100,48000 sampling frequency and AAC,MP3,PCM audio coding.
- Multiple Network Protocol: Support ONVIF, GB/T28181, RTSP, RTMP, NDI protocols; support RTMP push mode, which can easily link with streaming media server (Wowza, FMS); support RTP multicast mode, support VISCA control protocol over Network.
- Multiple Control port: RS422 (work with RS485), RS232 IN/OUT
- Multiple Control Protocols: Support VISCA, PELCO P/ D protocols
- Multiple Presets: Support up to 255 presets (10 presets by remote controller)
- Wide Application: Tele-education, Lecture Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.
|
Model Number |
UV430A |
|
Camera/ Lens Parameters |
|
|
Image Sensor |
1/2.5 Inch SONY High Quality 4K CMOS Sensor |
|
Effective pixels |
8.51MP effective pixels, 16:9 |
|
Video Format |
HDMI video output format： 4KP@60fps,4KP@50fps,4KP@30fps,4KP@25fps,1080P@60fps,1080P@50fps,1080I@60fps,1080I@50fps,1080P@30fps,1080P@25fps,720P@60fps,720P@50fps； USB3.0 video output format： YUY2/NV12:1920×1080P30fps,1280×720P30fps,1024×576P30fps, 960×540P30fps,800×448P30fps,640×360P30fps,640×480P30fps,320×176P30fps MJPEG/H.264:3840×2160P30fps,1920×1080P30fps,1280×720P30fps,1024×576P30fps,960×540P30fps,800×448P30fps,640×360P30fps,640×480P30fps,320×176P30fps USB2.0 video output from USB3.0 YUY2/NV12:640×360P30fps,640×480P30fps,320×176P30fps MJPEG/H.264:3840×2160P30fps,1920×1080P30fps,1280×720P30fps,1024×576P30fps,960×540P30fps,800×448P30fps,640×360P30fps,640×480P30fps,320×176P30fps |
|
Optical Zoom |
12X |
|
View Angle |
Horizontal: 7.59°（tele）～80.4°（wide） Tilt:4.6°（tele）～50.0°（wide） |
|
Focus |
f=3.85 mm～ 43.06 mm ±5% |
|
Aperture |
F1.8 ～ F3.56±5% |
|
Minimum Illumination |
0.05Lux(F1.8, AGC ON) |
|
DNR |
2D &3D DNR |
|
White Balance |
Auto / Manual/ One Push/ Specified color temperature |
|
Focus |
Auto / Manual/ One Push |
|
Exposure mode |
Auto / Manual / Shutter Priority / Iris Priority / Whiteness Priority |
|
Iris |
F1.8 ～ F11、CLOSE |
|
Shutter Speed |
1/25～1/10000 |
|
Dynamic range |
OFF/ Dynamic level adjustment |
|
BLC |
ON/ OFF |
|
Video Adjustment |
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
|
DNR |
≥50dB |
|
Function of Interface |
|
|
Interfaces |
HDMI , LAN (POE),USB3.0 Interface (type B, compatible with USB2.0), A-in RS232(in & out), RS422( work with RS485), Rotary dial switch, DC12V, power on |
|
Image Code Stream |
Dual Streaming |
|
Video Compression Format |
LAN:,H.264, H.265 USB3.0: MGPG, H.264, YUY2, NV12 |
|
Audio Input Interface |
A-IN, Double track 3.5mm linear Input |
|
Audio output interface |
HDMI, LAN(POE), USB3.0 |
|
Audio Compression Format |
AAC/ MP3/ G.711A |
|
Lan Interface |
10m/100/1000M adaptive Ethernet port, support POE and audio/video output |
|
Network Protocol |
Support RTSP, RTMP, ONVIF, GB/T28181, NDI(Optional),VISCA Control Protocols onver Network. Support remote upgrade, reboot and reset |
|
Control Interface |
RS232(in & out), RS422( work with RS485) |
|
Serial communication protocol |
VISCA/Pelco-D/Pelco-P, support baud rate 115200/38400/9600/4800/2400 |
|
USB Communication Protocl |
UVC（video),UAC（audio） |
|
Power Interface |
HEC3800 (DC12V) |
|
Power Adaptor |
Input: AC110V-AC220V Output: DC12V/1.5A |
|
Input Voltage |
DC12V±10% |
|
Input Current |
1.5A |
|
Power Consumption |
<12W |
|
PTZ Parameters |
|
|
Pan Rotation |
-110° ~ +110° |
|
Tilt Rotation |
-30°- +30° |
|
Pan Control Speed |
0.1- 100°/sec |
|
Tilt Control Speed |
0.1-70°/sec |
|
Preset Speed |
Pan: 100°/SEC, Tile: 70°/SEC |
|
Preset Number |
255 Points Preset (10 presets by remote controller) |
|
Other Parameters |
||
|
Store Temperature |
-10℃～+60℃ |
|
|
Store Humidity |
20%-95% |
|
|
Working Temperature |
-10℃-+50℃ |
|
|
Working Humidity |
20%-80% |
|
|
Dimension(L * W * H) |
220mm×144mm×159mm |
|
|
Weight |
1.7kg |
|
|
Usage |
Indoor only |
|
|
Accessories |
||
|
Random Accessories |
power supply,RS232 control cable, USB3.0 cable ,remoter, manual, warranty card |
|
|
Selected Accessories |
In-ceiling mount bracket or wall mount bracket |
|
