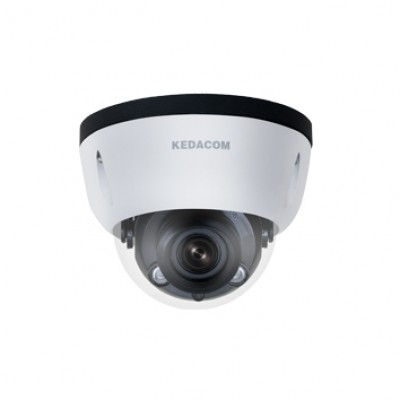

Network Small Vandal-Proof Varifocal Semi Dome 2.0M Ultra WDR Starlight, Model: IPC2233-FN-SIR40
Mô tả ngắn
2.0M, 1/2.8", H.265 / H.264, 1920×1080@30fps / D12.7~12mm @ F1.6 motorized varifocal lens, IP67, IK10120dB Ultra WDR, Starlight1 x RS485, 1 x Alarm in / out, 1 x Video out2 x Audio in, 1 x Audio out1 x Micro SD card slot (Max. 128GB)DC12V (Power Adapter Not Included) / PoE, 11W.
Hotline: 0918 642 886
Excellent Image Quality
-
2.0 Megapixel 1/2.8'' progressive scan CMOS sensor
-
High definition and smooth picture, 1080p@30fps
-
H.265 video codec, saves up to 50% bandwidth and storage
-
Ultra low illumination, 0.002lux with color picture
-
120dB Ultra WDR
-
3D noise reduction / Auto Iris / HLC
Intelligent Functions
-
Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Vandal-Proof
-
Above IK10 @ 50J collision energy
Integrated High Efficiency IR
-
Industrial IR LED with long operational lifespan
-
20 ~ 40m IR distance
-
Smart IR function
A Variety of Installation Modes
-
Supports 90°, 180°, 270° image rotation
-
Motorized varifocal lens
Abundant Functions and Features
-
Micro SD card slot, supports Automatic Network Replenishment (ANR)
-
Bi-directional audio / alarm in and out / video out / RS485
-
2 channel audio input simultaneously
-
Up to 3 Multi-stream
-
PoE
-
IP67
|
|
IPC2233-FN-SIR40 |
|
|
|
Camera |
|
|
|
Image Sensor |
1/2.8’’ progressive scan CMOS |
|
|
Pixels |
2.0 Megapixel |
|
|
Min. Illumination |
Color: 0.002lux@ (F1.6, AGC ON) |
|
|
B/W: 0.0002lux@ (F1.6, AGC ON); 0lux with IR |
|
|
|
Shutter Speed |
1 ~ 1/30,000s |
|
|
Day / Night |
Auto (ICR) / Color / B/W |
|
|
Wide Dynamic Range |
Ultra WDR, >=120dB |
|
|
S/N Ratio |
>50dB |
|
|
White Balance |
Auto / Manual |
|
|
Gain Control |
Auto / Manual |
|
|
Backlight Compensation |
Off / BLC / WDR / HLC |
|
|
Lens |
|
|
|
Mount Type |
Φ14 |
|
|
Auto Iris |
DC drive |
|
|
Focal Length |
-Z2712: 2.7~12mm @ F1.6 motorized varifocal lens |
|
|
Focus Control |
Manual / Semi-Automatic / Auto |
|
|
Angle of View |
-Z2712: 106° ~ 33° |
|
|
Adjustment Range |
Pan: -120° ~ +120° / Tilt: 0° ~ 65° / Rotation: -90° ~ +90° |
|
|
Infrared |
|
|
|
IR Distance |
20 ~ 40m |
|
|
IR Intensity |
Smart IR |
|
|
Video |
|
|
|
Compression |
H.265 / H.264 / MJPEG |
|
|
Image Resolution |
Main stream: 1080p |
|
|
Secondary stream: D1 |
|
|
|
Frame Rate |
Main stream: 1080p@30fps |
|
|
Secondary stream: D1@30fps |
|
|
|
Bitrate |
32kbps ~ 16Mbps |
|
|
Bitrate Control |
VBR / CBR |
|
|
Multi-stream |
Supported |
|
|
Caption |
Date and time / Alarm / Customized |
|
|
Privacy Masking |
Up to 4 zones |
|
|
Motion Detection |
Up to 4 zones |
|
|
Video Freeze |
Supported |
|
|
ROI |
Supported |
|
|
Digital Noise Reduction |
3D noise reduction |
|
|
Digital Defog |
Supported |
|
|
Image Flip |
Flip / Mirror / Rotation at 90°,180°,270° |
|
|
Audio |
|
|
|
Compression |
G.711a / G.711u / ADPCM / G.722 / AAC-LC / G.722.1c / G.726 |
|
|
Bitrate |
32kbps ~ 64kbps |
|
|
Audio Function |
Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute |
|
|
Network |
|
|
|
Network Protocols |
TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional) |
|
|
User Interface |
IPC Control (IE, Firefox, Chrome) |
|
|
Max. User Access |
Max. 10 Users (includes 2 internal) |
|
|
Application Programming |
ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI |
|
|
Automatic Network Replenishment (ANR) |
Supported |
|
|
Alarm |
|
|
|
Alarm Triggers |
Alarm input / Network disconnect / Disk full / Disk error |
|
|
Intelligent |
Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge |
|
|
Alarm Events |
Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm |
|
|
Interfaces |
|
|
|
Ethernet |
10/100M, RJ45 interface |
|
|
Audio In / Out |
2 x Line in / 1 x Line out |
|
|
Control |
1 x RS485 |
|
|
Alarm In / Out |
1 x Input / 1 x Output |
|
|
Video Out |
1 x BNC, 1.0V [p-p] / 75Ω |
|
|
Memory Slot |
Micro SD card slot, supports up to 128GB |
|
|
Environmental |
|
|
|
Operating Temperature |
-40°C ~ 70°C / -40°F ~ 158°F |
|
|
Operating Humidity |
10% ~ 95% |
|
|
Protection Level |
IK10+ @50J, IP67 |
|
|
Electrical |
|
|
|
Power |
DC12V ± 10% / PoE (IEEE802.3af) |
|
|
Power Consumption |
Max. 11W |
|
|
Mechanical |
|
|
|
Weight |
0.71 kg / 1.57lb (Gross Weight) |
|
|
Dimensions |
Φ122× 96.13mm / Φ4.8’’ x 3.78’’ |
