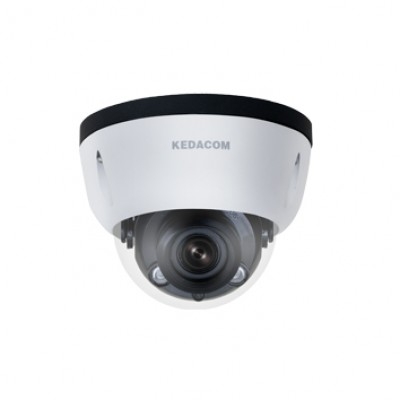

Network Small Vandal-Proof Varifocal Semi Dome 2.0M Ultra WDR Starlight, Model: IPC2233-FN-PIR40
Mô tả ngắn
2.0M, 1/2.8", H.265 / H.264, 1920×1080@30fps / D12.7~12mm @ F1.6 motorized varifocal lens, IP67, IK10120dB Ultra WDR, Starlight1 x Micro SD card slot (Max. 128GB)DC12V (Power Adapter Not Included) / PoE, 11W.
Hotline: 0918 642 886
Excellent Image Quality
-
2.0 Megapixel 1/2.8'' progressive scan CMOS sensor
-
High definition and smooth picture, 1080p@30fps
-
H.265 video codec, saves up to 50% bandwidth and storage
-
Ultra low illumination, 0.002lux with color picture
-
120dB Ultra WDR
-
3D noise reduction / Auto Iris / HLC
Intelligent Functions
-
Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
Vandal-Proof
-
Above IK10 @ 50J collision energy
Integrated High Efficiency IR
-
Industrial IR LED with long operational lifespan
-
20 ~ 40m IR distance
-
Smart IR function
A Variety of Installation Modes
-
Supports 90°, 180°, 270° image rotation
-
Motorized varifocal lens
Abundant Functions and Features
-
Micro SD card slot, supports Automatic Network Replenishment (ANR)
-
Up to 3 Multi-stream
-
PoE
-
IP67
| Model | IPC2233-FN-PIR40 |
| Camera | |
| Image Sensor | 1/2.8’’ progressive scan CMOS |
| Pixels | 2.0 Megapixel |
| Min. Illumination | Color: 0.002lux@ (F1.6, AGC ON) |
| B/W: 0.0002lux@ (F1.6, AGC ON); 0lux with IR | |
| Shutter Speed | 1 ~ 1/30,000s |
| Day / Night | Auto (ICR) / Color / B/W |
| Wide Dynamic Range | Ultra WDR, >=120dB |
| S/N Ratio | >50dB |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Backlight Compensation | Off / BLC / WDR / HLC |
| Lens | |
| Mount Type | Φ14 |
| Auto Iris | DC drive |
| Focal Length | -Z2712: 2.7~12mm @ F1.6 motorized varifocal lens |
| Focus Control | Manual / Semi-Automatic / Auto |
| Angle of View | -Z2712: 106° ~ 33° |
| Adjustment Range | Pan: -120° ~ +120° / Tilt: 0° ~ 65° / Rotation: -90° ~ +90° |
| Infrared | |
| IR Distance | 20 ~ 40m |
| IR Intensity | Smart IR |
| Video | |
| Compression | H.265 / H.264 / MJPEG |
| Image Resolution | Main stream: 1080p |
| Secondary stream: D1（1080p optional） | |
| Frame Rate | Main stream: 1080p@30fps |
| Secondary stream: D1@30fps（1080@12fps optional） | |
| Bitrate | 32kbps ~ 16Mbps |
| Bitrate Control | VBR / CBR |
| Multi-stream | Supported |
| Caption | Date and time / Alarm / Customized |
| Privacy Masking | Up to 4 zones |
| Motion Detection | Up to 4 zones |
| Video Freeze | Supported |
| ROI | Supported |
| Digital Noise Reduction | 3D noise reduction |
| Digital Defog | Supported |
| Image Flip | Flip / Mirror / Rotation at 90°,180°,270° |
| Network | |
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional) , NTP, SNMP |
| User Interface | IPC Control (IE, Firefox, Chrome) |
| Max. User Access | Max. 10 Users (includes 2 internal) |
| Application Programming | ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI |
| Automatic Network Replenishment (ANR) | Supported |
| Alarm | |
| Alarm Triggers | Network disconnect / Disk full / Disk error |
| Intelligent | Motion detection / Tampering / Guard line / Enter guard area / Exit guard area |
| Alarm Events | Alarm report / Recording / Text overlay / Snapshot / Email notice |
| Interfaces | |
| Ethernet | 10/100M, RJ45 interface |
| Memory Slot | Micro SD card slot, supports up to 128GB |
| Environmental | |
| Operating Temperature | -40°C ~ 70°C / -40°F ~ 158°F |
| Operating Humidity | 10% ~ 95% |
| Protection Level | IK10+ @50J, IP67 |
| Electrical | |
| Power | DC12V ± 10% / PoE (IEEE802.3af) |
| Power Consumption | Max. 11W |
| Mechanical | |
| Weight | 0.71 kg / 1.57lb (Gross Weight) |
| Dimensions | Φ122× 96.13mm / Φ4.8’’ x 3.78’’ |
