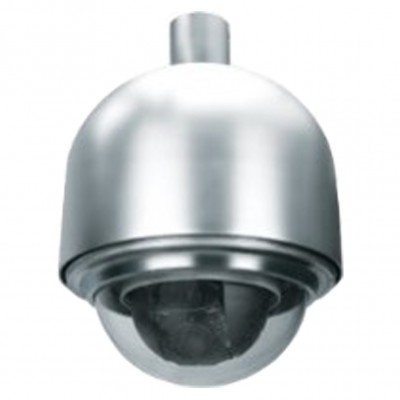

Network Explosion-Proof Speed Dome Camera 2.0MP, Model: IPC421-FB

Model

IPC421-FB

Camera

Image Sensor

1/2.8’’ progressive scan CMOS

Pixels

2.0 Megapixel

Min. Illumination

Color: 0.003lux @ (F1.6, AGC ON)

B/W: 0.0003lux @ (F1.6, AGC ON)

Shutter Speed

1 ~ 1/30,000s

Day / Night

Auto (ICR) / Color / B/W

Wide Dynamic Range

Ultra WDR, >=120dB

S/N Ratio

>53dB

White Balance

Auto / Manual

Gain Control

Auto / Manual

Backlight Compensation

Off / WDR / BLC / HLC

Lens

Focal Length

4.7 ~ 94mm, 20x optical

Zoom Speed

Approx 3s (Optical)

Angle of View

61°~ 3.64° (Wide~Tele)

Min. Object Distance

300 ~ 1000mm (Wide~Tele)

Max. Aperture Ratio

F1.6 (Wide) / F3.5 (Tele)

Focus Control

Auto / Manual / Semi-Automatic

Pan and Tilt

Pan / Tilt Range

360° Endless / 0° ~ 90°

Pan / Tilt Speed

Pan manual speed: 0.1° ~ 250°/s; Pan preset speed: 450°/s

Tilt manual speed: 0.1° ~ 150°/s; Tilt preset speed: 350°/s

Proportional Zoom

Pan / Tilt speed can be adjusted automatically according to zoom multiples

Preset

256

Patrol

8 Patrols scheme, up to 32 presets per patrol

Pattern Scan

4 Scan paths, each path can record 10 minutes of operation path

Power-off Memory

Power-off memory / Power-on recovery

Auto Guard

Path / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan

PT Limit

Manual / Scan / Pan

3D Positioning

PTZ control with mouse click and drag

Video

Compression

H.265 / H.264 / MJPEG

Image Resolution

Main stream: 1080p

Secondary stream: D1

Frame Rate

Main stream: 1080p@30fps

Secondary stream: D1@30fps

Bitrate

32kbps ~ 16Mbps

Bitrate Control

VBR / CBR

Multi-stream

Supported

Caption

Date and time / Alarm / Direction / Customized

Privacy Masking

Up to 4 zones

Motion Detection

Up to 4 zones

Video Freeze

Supported

ROI

Supported

Digital Noise Reduction

3D noise reduction

Digital Defog

Supported

Image Flip

Flip / Mirror

Network

Network Protocols

TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)

User Interface

IPC Control (IE, Firefox, Chrome)

Max. User Access

Max. 10 Users (includes 2 internal)

Application Programming

ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI

Automatic Network Replenishment (ANR)

Supported

Alarm

Alarm Triggers

Network disconnect / Disk full / Disk error

Intelligent

Motion detection / Tampering / Guard line / Enter guard area / Exit guard area

Alarm Events

Alarm report / Recording / Text overlay / Snapshot / Email notice

Interfaces

Ethernet

10/100M, RJ45 interface

Memory Slot

Built-in SD card (optional), supports up to 128GB

Environmental

Operating Temperature

-40°C ~ 60°C / -40°F ~ 140°F

Operating Humidity

10% ~ 95%

Protection Level

IP68, TVS 6000V lightning protection, surge protection and voltage transient protection

Explosion-proof mark

ExdⅡCT6 / DIP A20 TA,T6

Electrical

Power

-220: 220V AC ± 10%
-110: 110V AC ± 10%

Power Consumption

Max. 55W (Heater on)

Mechanical

Weight

20 kg / 44.09lb  (Gross Weight)

Dimensions

Φ240 × 470mm / Φ9.45’’ x 18.5’’

Mounting Bracket

Bracket included
