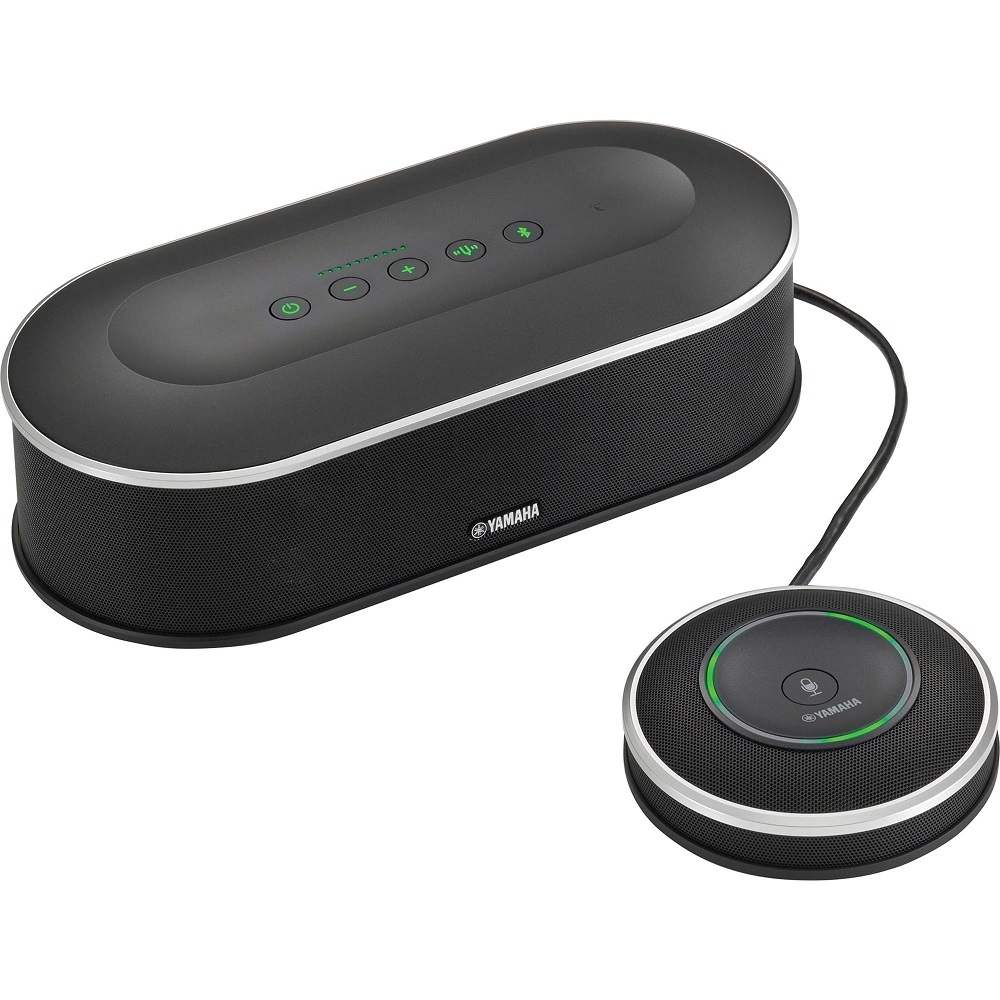

Micro đa hướng Yamaha YVC-1000
Mô tả ngắn
Mocel: YVC-1000
Smart Separation for Closer Communication
Separate microphone and speaker for an intimate audio/video experience
Hotline: 0918 642 886
Micro đa hướng Yamaha YVC-1000
| Interface | Control Unit: USB 2.0 High Speed, Bluetooth, NFC (Near Field Communication) Audio Input terminal (stereo RCA pin), Audio Output terminal (stereo RCA pin), External speaker terminal (RCA pin) x 2, Power terminal, Microphone terminal Microphone: Input and output terminals |
|
|---|---|---|
| Power consumption (max) | 20 W (one connected microphone), 35 W (five microphones connected) | |
| Radio interference standard | FCC (Part 15B) Class A, ICES-003 | |
| Power source | 120 V (60 Hz) | |
| Operating environment | Temperature: 0 to 40°C (32 to 104°F) Humidity: 20 to 85% (no condensation) |
|
| Storage environment | Temperature: -20 to +50°C (-4 to 122°F) Humidity: 10 to 90% (no condensation) |
|
| Dimensions | Control Unit (W x H x D): 332 x 95 x 162 mm (13.1 x 3.74 x 6.38 in) Microphone (W x H x D): 136 x 36 x 136 mm (5.35 x 1.42 x 5.35 in) |
|
| Weight | Control Unit: 1.8 kg (4.0 lbs), Microphone: 0.4 kg (0.9 lbs) | |
| Supported OS | OS: 32-bit or 64-bit Windows 10, 32-bit or 64-bit Windows 8.1, 32-bit or 64-bit Windows 8, 32-bit or 64-bit Windows 7, macOS 10.12, Mac OS X 10.11, Mac OS X 10.10, Mac OS X 10.9, Mac OS X 10.8 USB: USB 2.0 or later |
|
| Bluetooth | Bluetooth specification version: 2.1 + EDR Supported profile: HFP (1.6), A2DP Supported Codec: CVSD, mSBC, SBC Wireless output: Class 2 Maximum communication distance: 10 m (32.8 ft) |
|
| NFC | Compatible devices: NFC-compatible Android devices, versions 4.1, 4.2, 4.3, and 4.4 | |
| Voice guidance | English, Japanese, Chinese, Korean, French, Spanish, German | |
| Accessories | Power cable (3 m (9.8 ft)), USB cable (5 m (16.4 ft)), microphone cable (5 m (16.4 ft)), Quick Start Guide | |
| Others | Firmware update (transfer from PC through USB) | |
Audio
| Microphone unit | Unidirectional x 3 | |
|---|---|---|
| Speaker unit | Full-range x 1 | |
| Maximum volume | 95 dB (0.5 m (1.6 ft)) | |
| Frequency bandwidth | For sound pickup: 100 to 20,000 Hz For playback: 100 to 20,000 Hz |
|
| Signal processing | Adaptive echo canceller, Noise reduction, Automatic tracking, Automatic gain control, Automatic room EQ, Dereverberation, Automatic audio tuning | |
