24bit/48KHz sampling frequency
High noise reduction
Wide frequency response,
Sound balance, high fidelity
10 meters pickup radius
Adaptive echo cancellation, noise suppression
Compatible with common audio and video software

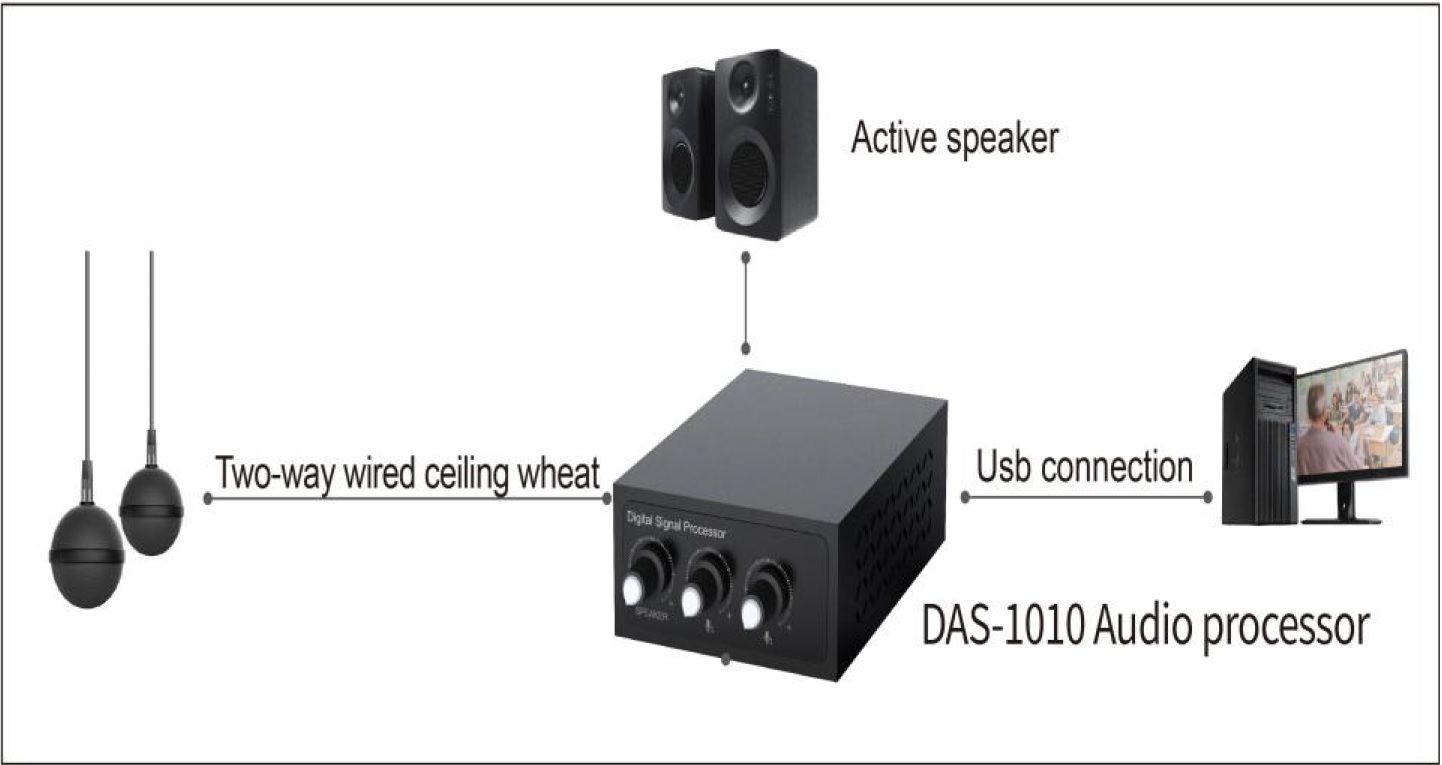

DAS-1010 support 2-way cable ceiling microphones, local computers, speakers, video conference host. Based on USB, remote voice interaction can be realized through a simple connection to meet the needs of high-quality recording for distance education and conferences.
As clear and natural as face-to-face
The ceiling microphones pickup radius can be up to 10m. Its sampling rate is 48 kHz, enabling precise sound. DAS-1010 is integrated with high signal-to-noise ratio, adaptive echo cancellation, adaptive noise suppression, and function of intelligent sound mixing. Also, noise reduction is about 18dB and it supports 24 bit A/D and D/A high-resolution quality, making sound quality more clearly as nature.
In addition, it adopts a bare wire phoenix interface terminal and 6-way balanced output. With an adaptive algorithm, you can select different functions by dialing switch and without complex software debugging, it can be used after a simple installation.

Features:
- HD voice pickup range mic
- High noise reduction,
- Wide frequency response,
- Sound balance, high fidelity,
- 10 meters pickup radius
- The 3rd Generation of Auctopus Audio Processing Algorithm
- 24bit/48KHz sampling frequency,
- Adaptive echo cancellation,
- Adaptive noise suppression,
- Adaptive speech gain adjustment,
- Smart mixing
- Efficient Layout
- Support mainstream education host, recorder interactive host, input and output independent volume control knob
- Compatible with common audio and video software. Support common education and conference SaaS software platform, such as Skype for Business, Zoom
Component
+ Digital audio processor
- DSP processing bus structure
- B-type USB connection
- 2 road 3.81mm phoenix interface
- input and output single adjustment
knob
+ suspended spherical microphone
Color
+ Matte black
Interface
+ B-type USB interface
+ DC 12V power interface
+ 2 road 3.81mm phoenix interface
Power Supply
+ Power adapter
- Input:100-240V,0.5A,50/60Hz
- Output:DC 12V,2A
Computer System Requirements
+ Windows 7 / Windows 10 /Windows XP, Mac OS
Suspended spherical microphone
+ Pick up radius: 10m Max
+ Frequency response: 50hz-20khz
+ Sensitivity:-47 plus or minus 3dB.
+ SNR: 75dB
Audio features
+ Adaptive echo cancellation
+ Adaptive noise suppression
+ intelligent remix
Audio processor
+ Frequency response(20hz-20khz@+4dBu)
- Microphone channel: +0/ -2db
- Line input channel: +0/-0.5dB.
Recommended Conditions
+ Temperature:20°~70°
+ Humidity:20~90% condensation-free
+ Noise level:< 48db
+ Storage temperature:20°~70°
Phantom power supply, single microphone pickup radius up to 10 meters
24bit/48KHz sampling frequency
High-performance A/D, D/A converter
Adaptive echo cancellation, noise suppression
Support general education and conference software platforms Support wireless microphone local amplification
U-band full frequency wireless microphone
Phantom power supply
High noise reduction, wide frequency response
Sound balance, high fidelity
10 meters pickup radius
Adaptive echo cancellation, noise suppression
Compatible with common audio and video software
Support wireless voice to local amplification
·USB & analog connection
·5m pickup radius
·Stable and Hi-fi sound
·24h response speed
·PSTN connection
·Support 3.5mm audio connection
·Extand mic to enlarg pickup range
·1 year return for free
