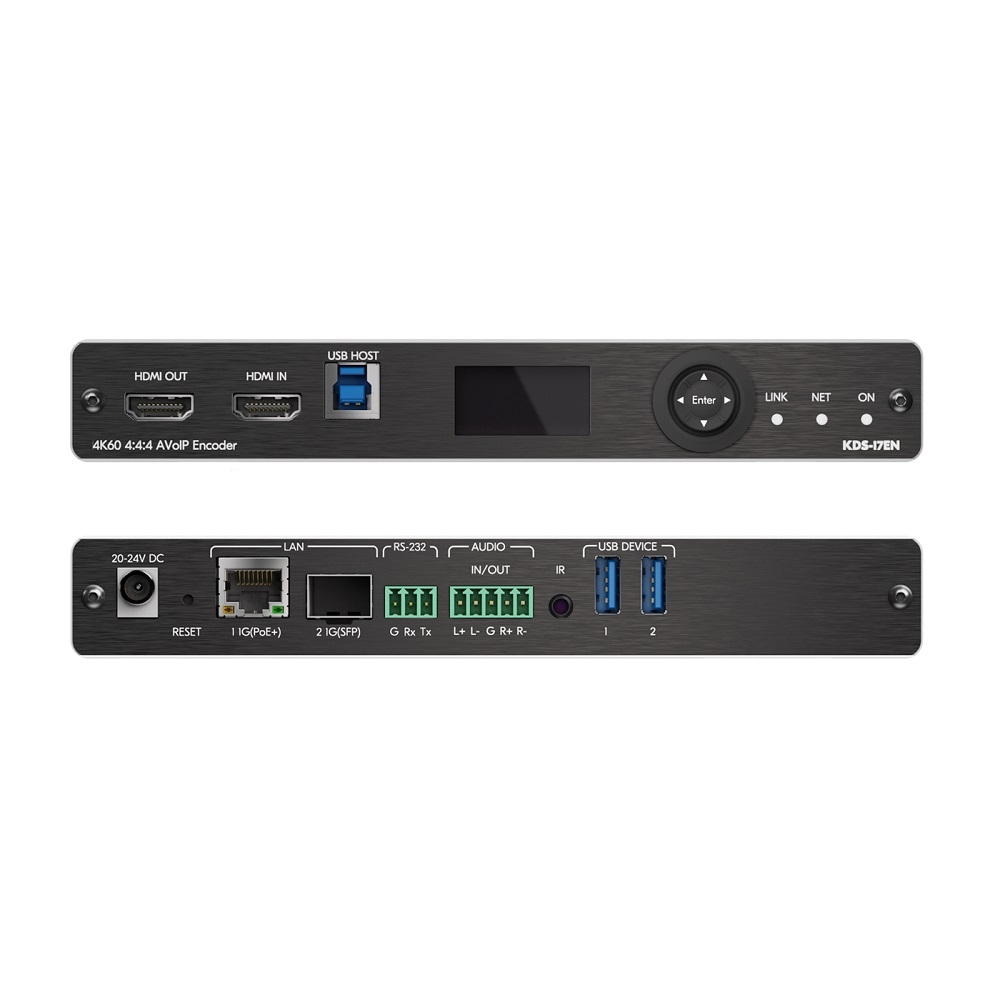

Thiết bị mã hóa tín hiệu hình ảnh KDS-17EN

Thiết bị mã hóa tín hiệu hình ảnh KDS-17EN

Mô tả ngắn

Kramer KDS-17EN 4K60 4:4:4 AVoIP Encoder
High-quality video and audio streaming
Outstanding end-user experience
Ideal for large–scale deployments
Simple planning and rollout

liên hệ mua hàng
Hotline: 0918 642 886

Kramer KDS-17EN 4K60 4:4:4 AVoIP Encoder for streaming 4K video and audio signals, via Ethernet over copper cable in unicast (one−to−one) or multicast (one−to−many) configurations.



- Outstanding end–user experience — Present video in superb 4K60 4.4.4 resolution, with best–in–class digital audio. With KDS–17, every visual detail and every nuance of sound comes through super–clearly. Enjoy extensive control of video walls, advanced connectivity options, and a wide choice of inputs/outputs and settings options.

- Ideal for large–scale deployments — Provide a high–performance solution fine tuned to the needs of large enterprise, education and government sites, with integrated advanced management capabilities and support for many simultaneous video streams.

- Easy planning and deployment — Easily and confidently integrate the AV solution into any IP network. Create A/V–enabled spaces of varying sizes swiftly and effortlessly, even without prior AV expertise. KDS–17 is very bandwidth–efficient, allowing you to leverage your IT infrastructure without perceptible network performance disruptions. Use of the existing IT network and Ethernet cabling, simplified switch configurations, and reduced dependence on skilled technicians save deployment time and cost.





INPUTS

  • 1 HDMI: On a female HDMI connector



OUTPUTS

  • 1 HDMI: On a female HDMI connector



PORTS

  • 1 Ethernet: On an R–J45 connector

  • 1 Ethernet: On an SFP optical/copper transceiver port

  • 1 Balanced Audio: On a 5–pin terminal block connector

  • 1 RS-232: On a 3–pin terminal block connector

  • 1 IR: On a 3.5mm TRS connector



USB

  • 1 USB-B Host: Connecting USB 3.0 PC/Laptop

  • 2 USB-A Devices: Connecting USB 3.0 local devices

  • 1 Level USB Hub: When connecting to KDS–17DEC



NETWORK

  • Multicast: Through RTSP (Real Time Streaming Protocol): IGMP snooping non–blocking, Layer 2

  • Unicast: Through RTSP (Real Time Streaming Protocol)

  • Bitrate: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps



VIDEO

  • Compression Standard: JPEG2K–Like, private stream

  • Max Resolution: 4K@60Hz (4:4:4)



RESOLUTION

  • 4096x2160@60Hz, 1600x1200@60Hz, 1280x960@60Hz, 848x480@60Hz,

  • 3840x2160@60Hz, 1600x900@60Hz,   1280x800@60Hz, 800x600@60Hz,

  • 1920x1200@50Hz, 1440x900@60Hz,   1280x768@60Hz, 720x576@60Hz,

  • 1920x1080@60Hz, 1400x1050@60Hz, 1280x720@60Hz, 720x480@50Hz,

  • 1856x1392@60Hz, 1366x768@60Hz,   1224x768@70Hz, 640x480@60Hz,

  • 1792x1344@60Hz, 1360x768@60Hz,  1152x864@70Hz, 640x400@85Hz,

  • 1680x1050@60Hz,                                   1024x768@60Hz, 640x350@85Hz



AUDIO

  • Supported Formats: LPCM, Dolby and DTS

  • LPCM: LPCM upto 7.1/24–bit/192kHz

  • Dolby: Dolby AtmosTM, Dolby TrueHD, Dolby Digital PlusTM, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0

  • DTS: DTS–HD Master AudioTM, DTS–HD, DTS–ES Discrete 6.1, DTS–ES Matrix 6.1, DTS Digital Surround 5.1



SECURITY

  • HTTPS, 802.1x, OWASP–10, AV Streaming: AES256 encryption



USER INTERFACE

  • Indicators: LINK, NET and ON LEDs, front panel LCD Display

  • Rear Panel: Restart and factory reset rear panel button

  • Controls: Embedded web pages, P3K API commands via Ethernet, front panel navigation buttons



POWER

  • PoE+: 37V to 57V, maximum power 25W

  • Optional power supply: 20V DC, 6A



ENVIRONMENTAL CONDITIONS

  • Operating Temperature: 0 to + 45°C (32 to + 113 °F)

  • Storage Temperature: –20 to +70°C (–4 to + 158 °F)

  • Humidity: 10% to 90%, non–condensing



REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)

  • Safety: CE,FCC

  • Environmental: RoHs, WEEE, UKCA



ENCLOSURE

  • Size: Mega Tool Deep

  • Type: Aluminium

  • Cooling: Convection Ventilation



PRODUCT DIMENSIONS

  • 18.90cm x 14.50cm x 2.76cm (7.44" x 5.71" x 1.09" ) W, D, H



PRODUCT WEIGHT

  • 0.7kg (1.5lbs) approx.
