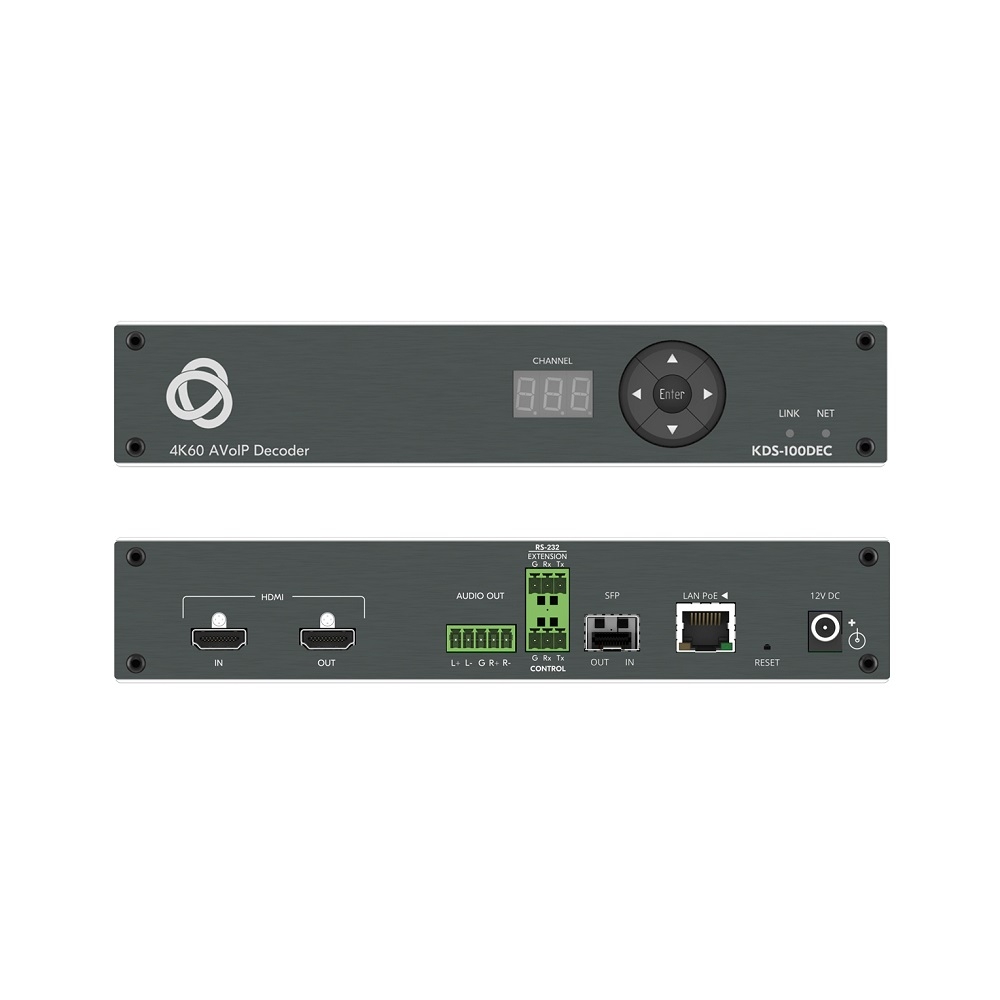

Thiết bị giải mã tín hiệu hình ảnh KDS-100DEC

Thiết bị giải mã tín hiệu hình ảnh KDS-100DEC

Mô tả ngắn

KDS-100DEC Open-standard H.264/H.265 AVoIP 4K@60Hz streaming decoder with AES67 audio
Outstanding end-user experience
Ideal for large–scale deployments
Low latency
Open standard streaming to connect 3rd party
Simple planning and rollout

liên hệ mua hàng
Hotline: 0918 642 886

KDS−100DEC−U/KDS−100DEC decoder is an advanced receiver for streamed 4K@60Hz video signals via Ethernet over copper or fiber cables. It also decodes the
RS−232 or CEC signals transmitted over IP network from the encoder. The KDS−100DEC−U decoder USB devices are remotely connected to a host USB on the KDS−100EN−U encoder.



- Robust Solution for Large–Scale Installations — Provides an optimized solution for large Education and Enterprise campuses, as well as Defense and Homeland Security Facilities, with support for numerous simultaneous video flows and built–in advanced management capabilities.

- Highly Scalable — The KDS–100 line supports up to 1000 video sources, suited for large–scale installations.

- Built–in Resilient Security Features — Preserves the integrity, availability and confidentiality of the IT network via a highly secured and resilient AVoIP solution.
KDS–100 devices comply with IT security requirements, including 802.1x and HTTPS/TLS.

- Simple Planning and Rollout — Leveraging the H.264/265 standard, KDS–100 is highly bandwidth–efficient, thus enabling cost–efficient hybrid use of the existing 1GE IT network. There is no need to deal with complex IP packets prioritization or switching settings. Offering easy management, high reliability, and adjustable bandwidth control, KDS–100 is extremely cost–effective to maintain over the long term.

- Alternative Sources/Destinations — An HDMI loop–through port on the encoder side and an HDMI input port on the decoder, as well as embedding and de–embedding analog and digital AES67 to the IP stream.



INPUTS

  • 1 HDMI: On a female HDMI connector



OUTPUTS

  • 1 HDMI: On a female HDMI connector

  • 1 Balanced Audio: On a 5–pin terminal block connector



PORTS

  • 1 Ethernet: On an RJ–45 Connection

  • 1 Fiber on an LC Connector: Standard: 1000BASE–SX, 1000BASE–LX

  • 1 RS-232: On a 3–pin terminal block connector for control

  • 1 RS-232: On a 3–pin terminal block connector for data

  • 2 USB (KDS-100DEC-U Only): On Type–A connectors



NETWORK

  • 1GE

  • IPv4

  • RTP/RTCP over UDP

  • Multicast IGMPv2



VIDEO

  • Max In/Out Resolution: 4K@60Hz 4:4:4

  • HDCP: 1.4 and 2.2



VIDEO STREAMING

  • Compression: H.264 / H.265

  • Streaming Resolution: 4K@60Hz 4:2:2

  • Scaler: Yes

  • Bit Rate Range: 15–60Mbps

  • Latency: Normal and low

  • 1024X768P/60, 1280X768P/60, 1280X720P/60, 1280X720P/50, 1280X720P/24, 1280X720P/25, 1280X720P/30, 1280X1024P/60, 1600X1200P/60, 1920X1080P/60, 1920X1080P/50, 1920X1080P/24, 1920X1080P/25, 1920X1080P/30, 1920X1200P/60, 3840X2160P/24, 3840X2160P/25, 3840X2160P/30, 3840X2160P/50, 3840X2160P/60

  • 1 AES67 stereo in / 1 AES67 stereo out

  • HTTPS, 802.1x



RESOLUTION

  • Indicators: Link and power LEDs, digital display for channel ID



DIGITAL AUDIO

  • Front Panel: Channel–ID selection button for video streaming



SECURITY

  • Rear Panel: Restart and factory reset buttons



USER INTERFACE

  • Controls via Serial USB: API commands (KDS–100DEC–U Only)

  • Controls via Ethernet: API, embedded web pages and RTSP

  • PoE+: IEEE 802.3at on LAN (PoE) port

  • Source (Optional): 12V DC/5A



POWER

  • Consumption: 36W

  • Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing

  • Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing



ENVIRONMENTAL CONDITIONS

  • Humidity: 10% to 90%, non–condensing

  • Product Dimensions: 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H

  • Shipping Dimensions: 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H



GENERAL

  • Product Weight: 0.9kg (2lbs) approx

  • Shipping Weight: 1.4kg (3.1lbs) approx

Download
