Camera Telycam Drive+ N 20x
Mô tả ngắn
1080p60 FHD resolution
20x optical zoom
NDI ®|HX /3G-SDI/HDMI/USB3.0 Available
Embed the Latest NDI ®|HX SDK
Built in professional level audio in for line-in input
Program and Preview Tally
SRT supported
Power over Ethernet
Hotline: 0918 642 886

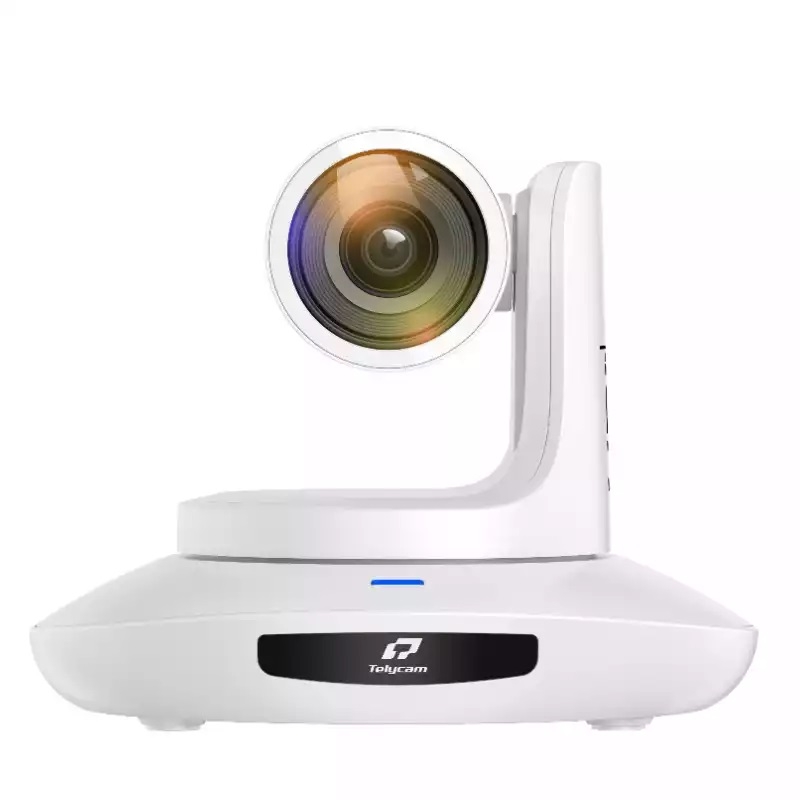

Camera Telycam Drive+ N 20x TLC-300-IP-20(NDI)
FHD resolution
Drive+N series PTZ camera feature an industry-level image processor, 1/2.8-inch 2.4-megapixel sensor, and outputs full high-definition video resolution of 1920*1080 p60 to display clear, sharp, and lifelike images to users, even in low-light working environments.
20x optical zoom
It shoots with a 20x optical zoom lens with a wide angle 60-degree field of view, and a proprietary focusing algorithm enable fast and precise focus performance when zooming or moving, to capture every detail of the scene.
3G-SDI/HDMI/USB3.0 Available
In addition to NDI ®|HX, 3G-SDI, HDMI and USB3.0 output image simultaneously as well. 3G-SDI and HDMI are for conventional video production workflow, and USB output can be used as a high-end webcam.
Embed the Latest NDI ®|HX 5.5 SDK
Newtek’s NDI® creates a plug-and-play environment for various products and platforms in live streaming, making it possible to produce abundant and diverse live content.
|
Camera |
Drive+ N 12x |
Drive+ N 20x |
|
Part Number |
TLC-300-IP-12(NDI) |
TLC-300-IP-20(NDI) |
|
Sensor |
1/2.8 inch, 2.4MP UHD CMOS Sensor |
|
|
Zoom |
12x optical zoom |
20x optical zoom |
|
Lens |
f = 3.92～47.32mm, F1.8 ~ F2.8 |
f =4.9～98mm, F1.5 ~ F3.0 |
|
Horizontal View Angle |
72.5°(Wide) ~ 6.3°(Tele) |
60° (Wide) ~ 3.2° (Tele) |
|
Vertical viewing angle |
42.72°~3.66° |
34.14° ~ 1.12° |
|
Diagonal viewing angle |
78.58°~7.42° |
67.08° ~ 2.27° |
|
Minimum Working Distance |
1.0m |
1.0m |
|
S/N Ratio |
≥50dB |
|
|
Video Format |
HDMI： 1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97 |
|
|
NDI®|HX： 1920*1080@3~60; 1280*720@3~60; 1024*576@3~60, 640*360@3~60 (low bandwidth mode) |
||
|
3G-SDI： 1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97 |
||
|
USB Type-C： 1920*1080P60/50/30/25(USB3.0); 1280*720P60/50/30(USB3.0); 1280*720P25(USB3.0&USB2.0); 1024*576P30(USB3.0&USB2.0); 960*540P30(USB2.0); 640*360P30(USB2.0); 512*288P30(USB2.0) |
||
|
Image Parameters |
||
|
Noise Reduction |
2D&3D |
|
|
Minimum lux |
0.7lux (50 IRE Max AGC,1/30, F1.8) |
|
|
White Balance |
ATW/Manual/Auto/Indoor/Outdoor/One Push/Sodium/Fluorescent |
|
|
Exposure |
Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority |
|
|
Anti-Flicker |
OFF,50Hz,60Hz |
|
|
Image Flip |
Support |
|
|
Mirroring |
Support |
|
|
Focus |
Auto/Manual |
|
|
Iris |
Auto/Manual |
|
|
Electronic-shutter |
Auto/Manual |
|
|
Gamma |
Support |
|
|
Backlight Compensation |
Support |
|
|
IP Streaming |
||
|
Video Encoding |
H.264/H.265 |
|
|
Bitrate Control |
Variable bitrate(VBR), Constant bitrate(CBR) |
|
|
Bitrate Range |
1024Kbps~61440Kbps |
|
|
Network Port Speed |
1000M |
|
|
Protocol |
NDI®|HX, SRT, HTTP, RTSP, RTMP, DHCP, 0NVIF, VISCA over IP, VISCA TCP, VISCA UDP, |
|
|
Pan/Tilt Movement |
||
|
Preset |
Remote controller: 10; Serial port: 128; Accuracy：0.1° |
|
|
Pan Rotation Angle |
-170° ~+170° |
|
|
Tilt Rotation Angle |
-30° ~+90° |
|
|
Pan Rotation Speed |
0.1°~120°/s |
|
|
Tilt Rotation Speed |
0.1°~80°/s |
|
|

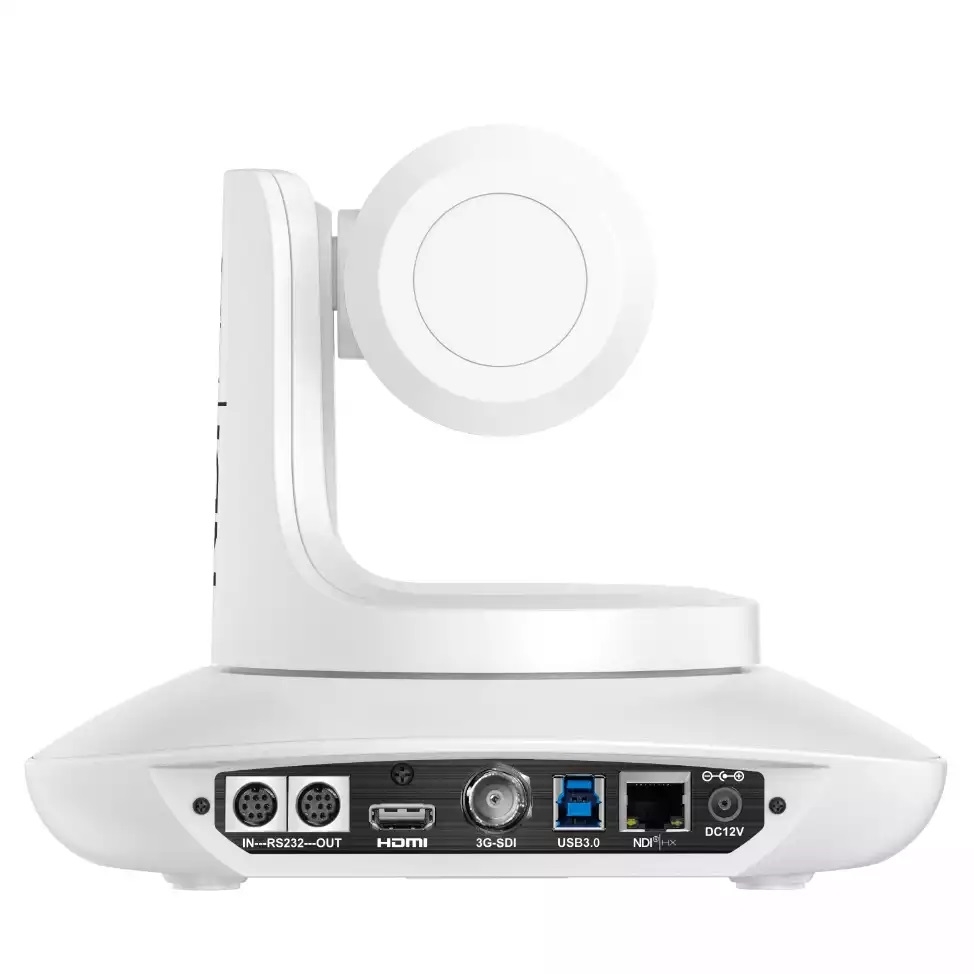

I/O Interface |
||
|
Control Port |
RS232, RS485, NDI®|HX, USB3.0(UVC1.5), USB2.0(UVC1.1) |
|
|
Video Port |
NDI®|HX, HDMI, 3G-SDI, USB 3.0 |
|
|
Tally |
Support |
|
|
POE+ |
Support |
|
|
Daisy Chain |
Support |
|
|
General |
||
|
Input Voltage |
DC12V, POE+(IEEE802.3at) |
|
|
Operating Temperature |
-10℃~ 50℃ |
|
|
Operating Humidity |
≤80% |
|
|
Color |
Black/White |
|
|
Dimension（L×W×H） |
220mm×190mm×173mm |
|
|
Net Weight |
1.35kg |
|
