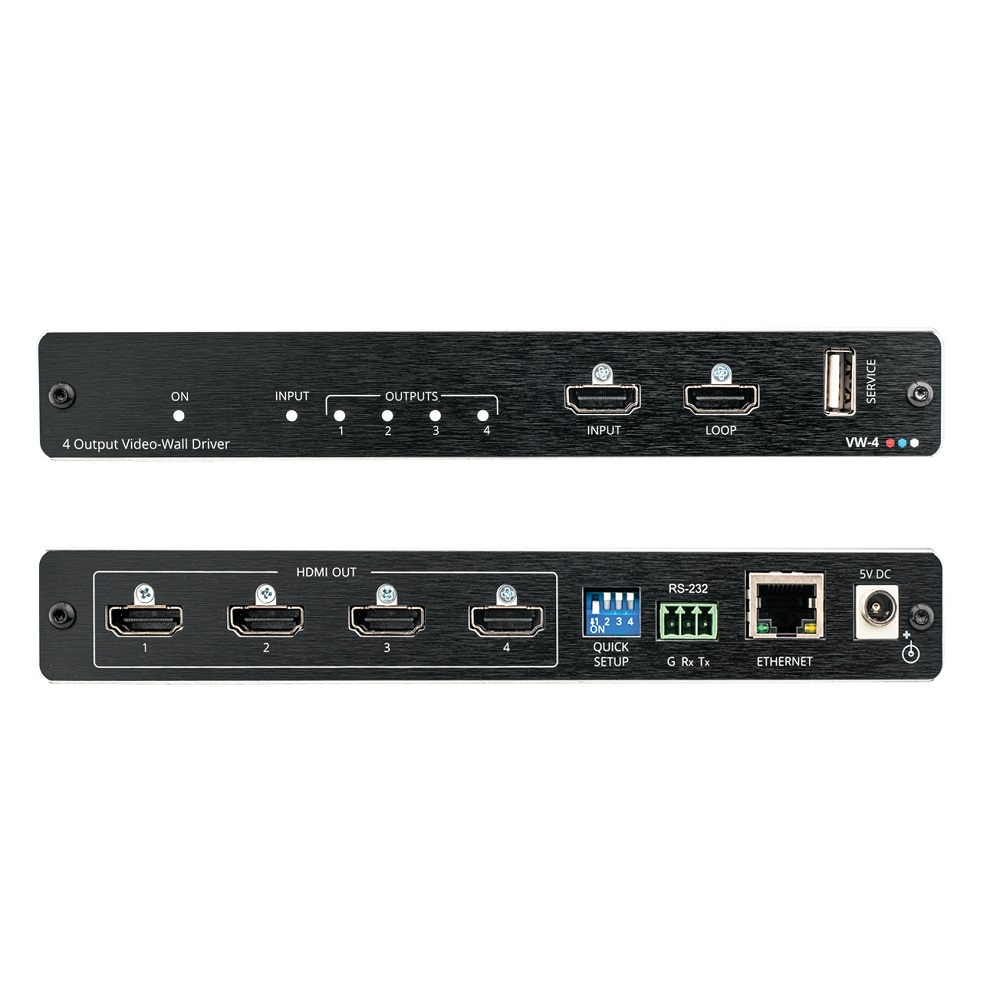

Video Wall Driver 4 Output VW-4

Video Wall Driver 4 Output VW-4

Mô tả ngắn

VW-44 Output Video Wall Driver
Quick front panel setup
PC App for comprehensive setup
Up to 64 displays with additional devices
HDCP and EDID support
Constant output sync
CEC auto display control

liên hệ mua hàng
Hotline: 0918 642 886

VW-4 is a 4−output video wall driver designed to quickly and easily configure and manage video walls. Use one VW-4 device to create any wall configuration with up to 4 displays, for example, a 2x2, 4x1, 1x4, 2x1, 3x1 video wall. Connect additional devices to create walls of any size and configuration of up to 64 displays. Configure a single or multiple device setup using the VW-4 app via Ethernet or RS−232, or quickly configure a basic setup using the local dip switches.


  • - Scalable Video Walls — Create and manage a video wall of up to 4 displays or, by adding devices, create video walls of up to 64 displays.

  • - Quick, Basic, Local Setup — Use front panel DIP–switches for basic setup of video walls up to 16 displays.

  • - Full Feature Configuration — Use the VW–4 app via Ethernet or RS–232 to set up video walls of up to 8x8 displays. Also use the app for the following: bezel corrections, HDCP status, factory reset, upgrading firmware, viewing network settings and copying EDID.

  • - Content Protection — Supports HDCP 2.2 on the input and loop output and HDCP 1.4 on the main outputs. HDCP can be disabled on the input.

  • - EDID Support — Upload EDID files, copy any output EDID to the input, and select from several built–in EDID files.

  • - Reliable Video — Features constant output sync and auto–sync off option that stops or delays the 5V shutoff when no input is detected.

  • - Auto Display Powering — CEC capabilities turn ON or OFF the connected displays according to the status of the input video.

  • - Easy Installation — Compact MegaTOOLS® fan–less enclosure for surface mounting or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.



  • 1 HDMI: On a female HDMI connector



  • 4 HDMI: On female HDMI connectors

  • 1 HDMI Loop: On a female HDMI connector



  • 1 Ethernet: On an R–J45 connector

  • 1 RS-232: On a 3–pin terminal block connector

  • USB: On a USB type–A connector



  • Max Input Resolution: 4K@60Hz (4:4:4)

  • Max Input Data Rate: 18Gps

  • Output Resolution: 1080p

  • Content Protection on Input and Loop Output: HDCP 2.2

  • Content Protection on Main Outputs: HDCP 1.4



  • Indicators: I/O detection and power LEDs

  • Controls: DIP–switches for basic setup, computer app for comprehensive setup via Ethernet or RS–232, firmware upgrade via USB



  • Included: Power adapter, bracket set, rubber feet



  • Source: 5V DC

  • Consumption: 2.9A



  • Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing

  • Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing

  • Humidity: 10% to 90%, non–condensing



  • 0.9kg (1.9lbs) approx.
