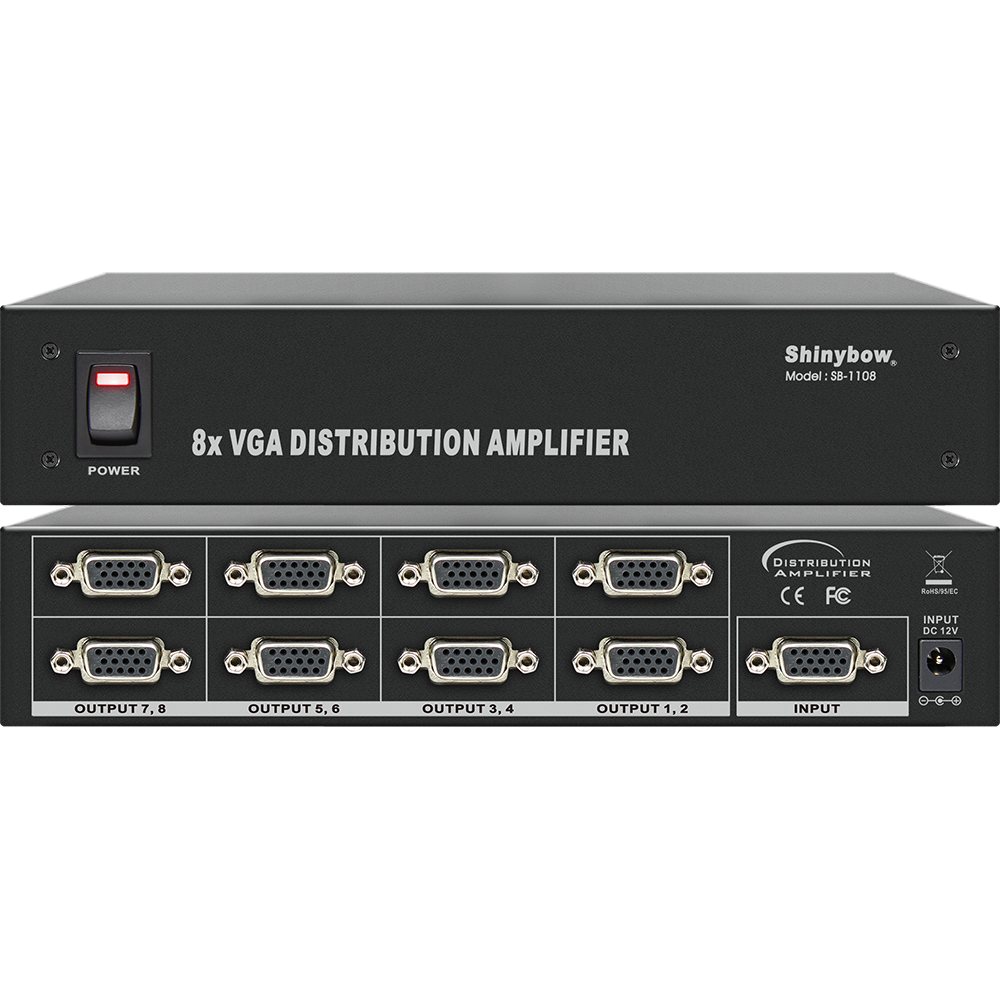

Bộ chia và khuếch đại 1x8 VGA SB-1108
Mô tả ngắn
Shinybow SB-1108 1x8 VGA DISTRIBUTION
Input : 1x VGA(RGBHV)
Output : 8x VGA(RGBHV)
Hotline: 0918 642 886
SB-1108 is a 1 Input To 8 Outputs for VGA (RGBHV) signals distribution amplifier respectively. For HD high resolution VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), UXGA (1600x1200), WUXGA (1920x1200) Plasma Display or Monitor. Also support full HD resolutions for 480i, 480p, 576p, 720p, 1080i and 1080p HDTV. An ultrahigh speed current feedback amplifier with a phenomenal 5500V/us, slew rate that results in a rise time of 545ps, making it ideal as a pulse amplifier. The high slew rate reduces the effect of slew rate limiting and results in the large signal Bandwidth 440MHz (G=+2), Small signal Bandwidth (-3dB), 1000MHz (G=+1) delivers computer resolutions up to 2048 x 2048 at distances up to 150 feet away without signal deterioration. Signal quality is main-tained over a wide bandwidth with worstcase distortion of -40dBc @ 250MHz (G=+10, 1Vp-p). Input and output connectors are HD-15 female type. Support wall mountable metal cases, 1RU high. All units are +12VDC powered and the universal switching power 100~240VAC 50/60Hz adaptor is included.
|
1. |
Support 1 input to 8 outputs of Signal VGA (RGBHV) Distribution Amplifier |
|
2. |
Low Distortion over Wide Bandwidth Large Signal Bandwidth 440MHz, |
|
3. |
High VGA resolutions for VGA, SVGA, XGA, UXGA, WUXGA (1920x1200) |
|
4. |
High Definition HDTV resolutions for 480p, 720p, 1080i and 1080p (1920x1080) |
|
5. |
Support Lower power consumed full load under 500mA |
|
6. |
Automatically Scan rates accepted : 50Hz or 60Hz |
|
7. |
Goods Video Specifications Gain Flatness 0.1dB to 75MHz |
|
8. |
High Output Drive 175 mA Output Load Drive |
|
9. |
Terminal via HDdB15P Female connector |
|
10. |
Power Supply : Universal switching 100~240VAC, 50/60Hz, DC12V,0.66A |
|
Type of Amplifier |
1 input to 8 outputs VGA Distribution Amplifier |
|
Type of Signals |
VGA (RGBHV) via HD-15p via HD-15P female connectors |
|
Large Signal Bandwidth |
440MHz, G=+2 |
|
Small signal Bandwidth |
1GHz (-3dB) G=+1 |
|
Settling Time |
10 ns to 0.1%, 2 V Step, G=+2 |
|
Scan rates accepted |
50Hz or 60Hz |
|
Resolutions |
VGA, SVGA, XGA, UXGA,WUXGA 1920x1200 |
|
Safety approvals |
CE, FCC, Erp, WEEE |
|
Dimension (WxDxH) |
8.66" x 4.48" x 1.73" (220mm x 114mm x 44mm) |
|
Weight |
0.85 kg / 1.87 lb |
|
Power Supply |
Universal switching 100~240VAC, 50/60Hz, DC 12V, 0.66A |
