Bộ chuyển đổi S-Video sang Component SB-2834

Bộ chuyển đổi S-Video sang Component SB-2834

Mô tả ngắn

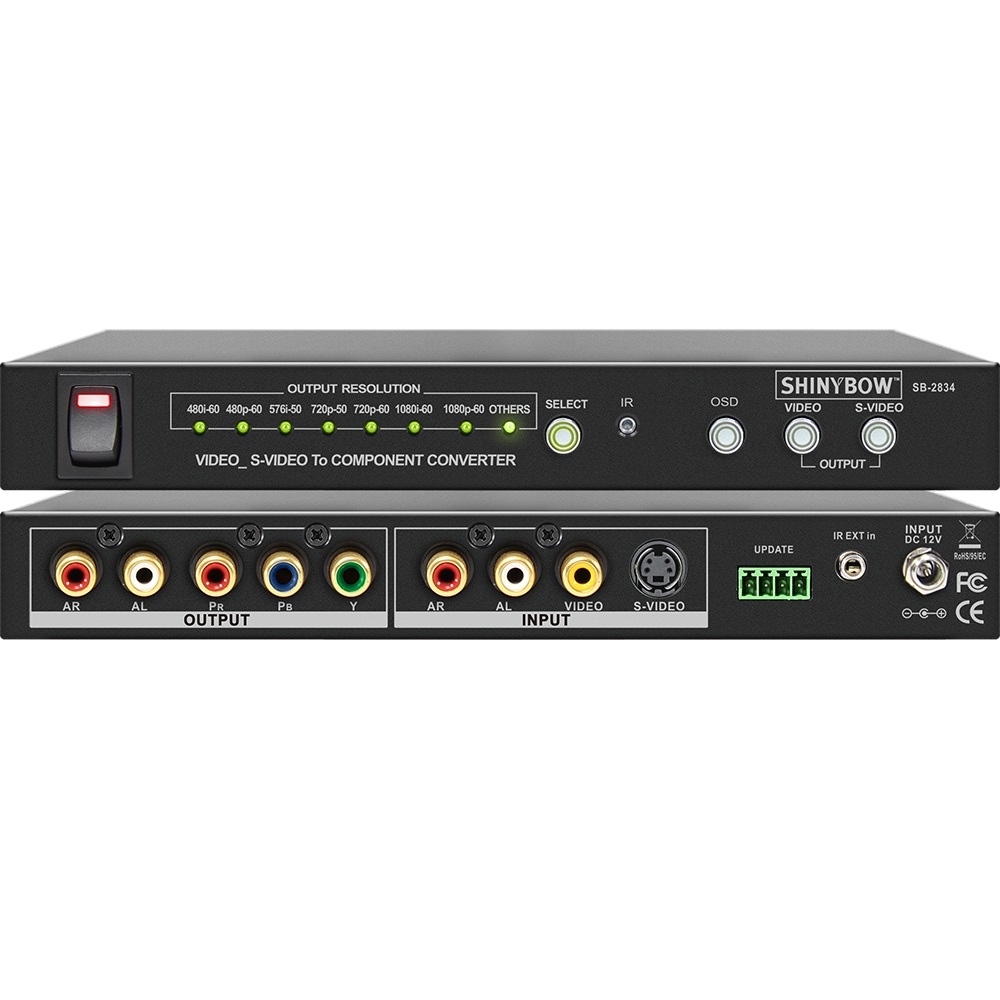

Shinybow SB-2834 VIDEO / S-VIDEO To COMPONENT CONVERTER
Input : 1x Composite Video, 1x S-Vidoe, 1x Stereo Audio(AR/AL)
Output : 1x Component(YPBPR), 1x Digital Audio, 1x Audio

liên hệ mua hàng
Hotline: 0918 642 886

01. Support CVB S/ SV to Component Video Converter

02. Inputs Video : 1x Composite Video & 1x S-Video (Y/C)

                   Audio : 1x Stereo Audio (AR/AL)

       Out put s Video : 1x Component Video (YPBPR)

                        Audio : 1x Digital Audio (PCM), 1x Stereo Audio (AR/AL)

03. Automatic detection TV Standards system NT SC-M3.58, NT SC-JEia, PAL,

       PAL-N, PAL-60, PAL-M input system

04. Automatic control UP and Dow n Screen when Video or S-Video in/out

05. Direct Selection the Component Video 480p / 720p / 1080p Resolutions out put

06. Support 5% of overscan range of HDTV Screen output

07. Support Screen up/ down and adjusted



Input Signals

Video : Composite  Video 1x RCA & 1x S-Video(Y/C) &
1x 4p Mini -Din Connector
Audio : Stereo Aud io(AR/AL) 2x RCA & Digital Audio via
1x RCA Connector

Outputs Signals

Video : Component Video (YPBPR) via 3x RCA connectors
Audio : Stereo Audio (AR/AL) 2x RCA Connectors

Output Selection

Direct Component Video Resolution and
Frequency 50/60Hz Output Selections

Video  Bandwidth

20 0M Hz, (-3dB)

Audio Frequency Respond

50 MHz, (-3dB)

Audio Bandwidth

20 Hz~ 20 KHz

Safety Approvals

CE, FCC

Dimension (WxDxH)

8.27" x 4.49" x 1.06" (210mm x 114mm x 27mm)

Power Supply

12VDC, Universal type 50/60Hz 100~230 VAC, 2A

Weight

0.7 kg / 1.54 lb

Download
