Kramer 1080p PTZ Camera, HD 1080p Pro PTZ Camera with 12x Optical Zoom
2D and 3D DNR and WDR technology
12x optical zoom and 16x digital zoom
RS–232 and IR protocol communication
H.264
Professional HD camera for versatile video capture
Get a clear view of all meeting attendees, with special attention wherever it’s needed. This 1080p PTZ camera is equipped with high−power optical and digital zooms, ideal for zooming in on specific participants in mid−sized and large video conferencing spaces. Silent PTZ movement and simple control let you capture only what you want, when you want it.
- Versatile, high–quality video —
Wide-angle image capture with advanced PTZ control provides complete coverage of medium and large spaces, such as boardrooms, classrooms and auditoriums
Outstanding image detail, with 1080p resolution, 12x optical zoom plus 16x digital zoom, and intelligent color optimization
Clear image quality even in low light, with 2D and 3D digital noise reduction (DNR) and wide dynamic reduction (WDR)
Easy, instant jumping between whiteboards and speakers, with a choice of 255 preset views
- Simple deployment and operation —
Plug and play connection with a USB cable
All operations, including pan, tile and zoom, are easily controlled from any Kramer control interface
Works with other meeting devices via IR and RS232 communication, enabling continued use of existing AV infrastructure

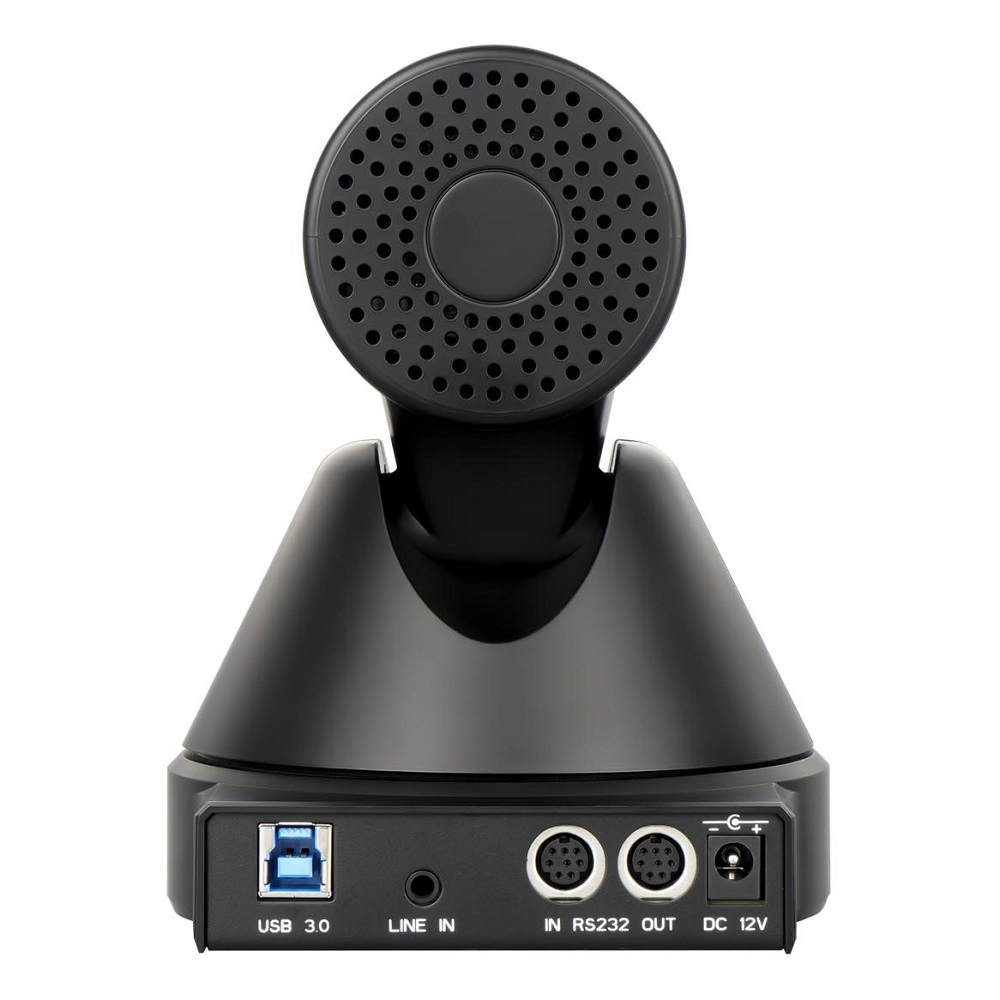

PORTS
USB 3.0: On a USB type B connector
RS-232 IN: : On a VISCA connector
RS-232 OUT: On a VISCA connector
CAMERA
Video System: 1080P, 720P, 540P, 480P, 360P, 240P etc
Sensor: 1/2.7inch, CMOS
Scanning Mode: Progressive
Lens: 12x, f3.5mm~42.3mm, F1.8 ~ F2.8
Digital Zoom: 16x
Minimal Illumination: 0.5 Lux @ (F1.8, AGC ON)
Shutter: 1/30s~1/10000s°
White Balance: Auto, Indoor, Outdoor, One Push, Manual, VAR(2500K~8000K)
Backlight Compensation: Support
Digital Noise Reduction: 2D&3D Digital Noise Reduction
Video S/N: ≥55dB
Horizontal Angle of View: 72.5°~ 6.9°
Vertical Angle of View: 44.8°~ 3.9°
Horizontal Rotation Range: ±170
Vertical Angle of View: 44.8°~ 3.9°
Horizontal Rotation Range: ±170
Vertical Rotation Range: –30°~ +30
Pan Speed Range: 1.7°~ 100°/s
Tilt Speed Range: 0.7°~ 28°/s
H & V Flip: Support
Image Freeze: Support
Number of Presets: 255
Preset Accuracy: 0.1°
VIDEO FORMAT
YUY2 (BULK): Up to 1080P@30fps
YUY2 (ISOC): Up to 1080P@30fps
H.264 AVC: Up to 1080P@30fps
H.264 SVC: Up to 1080P@15fps
MJPEG: Up to 1080P@28fps
USB FEATURES
Operating System: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Color System / Compression: YUV 4:2:2 / H.264 / MJPEG
CONTROLS
IR Remote Control Transmitter: OSD
PC: Embedded web pages
POWER
Source: 12V DC, 2A max
Consumption: 12V DC, 800mA max
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: –20° to +60°C (–4° to 140°F)
Humidity: 10% to 90%, RHL non–condensing
Altitude: Below 5000 meters
Altitude: Below 5000 meters
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Safety: CE, FCC
Environmental: RoHs, WEEE
Safety: CE, FCC
Environmental: RoHs, WEEE
ENCLOSURE
Type: Aluminum
Type: Aluminum
GENERAL
Net Dimensions (W, D, H): 14.5cm x 9.8cm x 15cm (5.8" x 3.8" x 5.9")
Shipping Dimensions (W, D, H): 23cm x 23cm x 25cm (9" x 9" x 9.8")
Net Weight: 0.94kg (2.1lbs) approx
Shipping Weight: 2.61kg (5.7lbs) approx
ACCESSORIES
Included: Power adapter and cord, 1 USB–C cable, remote controller, wall bracket, screws set, lens cover
PRODUCT DIMENSIONS
14.50cm x 9.80cm x 15.00cm (5.71" x 3.86" x 5.91" ) W, D, H
PRODUCT WEIGHT
0.9kg (2.1lbs) approx.
