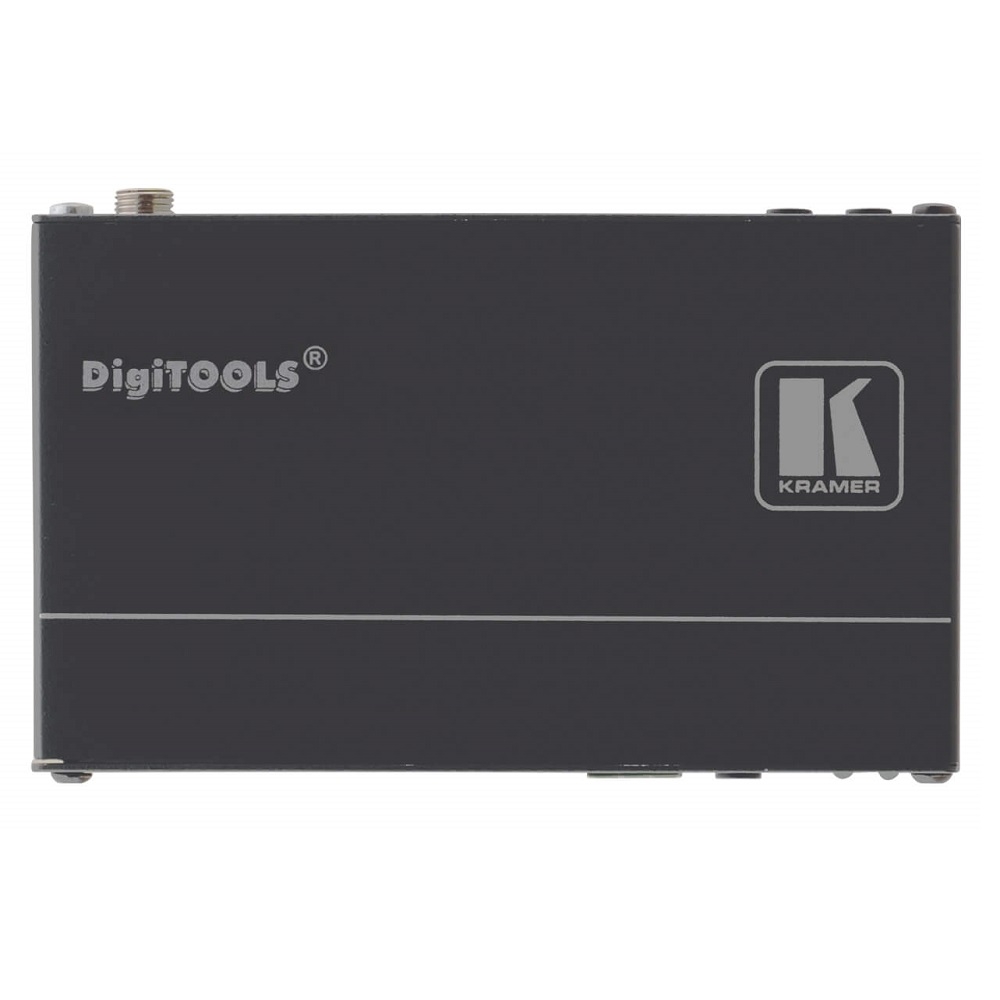

Bộ chuyển mạch auto HDMI VS-211HA
Bộ chuyển mạch auto HDMI VS-211HA

Bộ chuyển mạch auto HDMI VS-211HA

Mô tả ngắn

Kramer VS-211HA 2x1 HDMI Auto Switcher with Audio

Size DigiTOOLS® — Mount 3 units side–by–side in a 1U rack space with the optional RK–3T rack adapter.

Audio U/E

liên hệ mua hàng
Hotline: 0918 642 886

The VS−211HA is a high−performance automatic standby switcher for HDMI video and unbalanced stereo audio signals. The VS−211HA can be used as a manual 2x1 switcher or automatic switcher. The switcher uses a priority input or last connected input.



- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).

- HDMI & HDCP Compliant.

- HDTV Compatible.

- Advanced Auto Switching — Based on video clock detection.

- Automatic Output Shutdown — If no input signal is detected after a configurable idle period.

- 3D Pass Through.

- EDID PassThru — Passes EDID signals from display to source.

- Audio Return Channel (ARC) Pass Through.

- Parallel Unbalanced Stereo Audio Switching.

- Contact Closure Remote Control — For manual switching override.

- DIP–Switches — For setting the switching mode.

INPUTS

  • 2 HDMI connectors, 2 unbalanced stereo audio on 3.5mm mini jacks



OUTPUTS

  • 1 HDMI connector, 1 unbalanced stereo audio on a 3.5mm mini jack



MAX. DATA RATE

  • 6.75Gbps (2.25Gbps per graphic channel)



COMPLIANCE WITH HDMI STANDARD

  • Supports HDMI and HDCP



CONTROLS

  • Contact closure on a 3–pin terminal block, 2 priority DIP–switches



INDICATORS

  • ON and active input LEDs



POWER CONSUMPTION

  • 5V DC, 120mA (without load), 350mA (fully loaded)



OPERATING TEMPERATURE

  • 0° to +40°C (32° to 104°F)



STORAGE TEMPERATURE

  • –40° to +70°C (–40° to 158°F)



HUMIDITY

  • 10% to 90%, RHL non–condensing



INCLUDED ACCESSORIES

  • Power supply



OPTIONS

  • RK–3T 19” rack adapter



PRODUCT DIMENSION

  • 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H



PRODUCT WEIGHT

  • 0.2kg (0.4lbs) approx

Download
