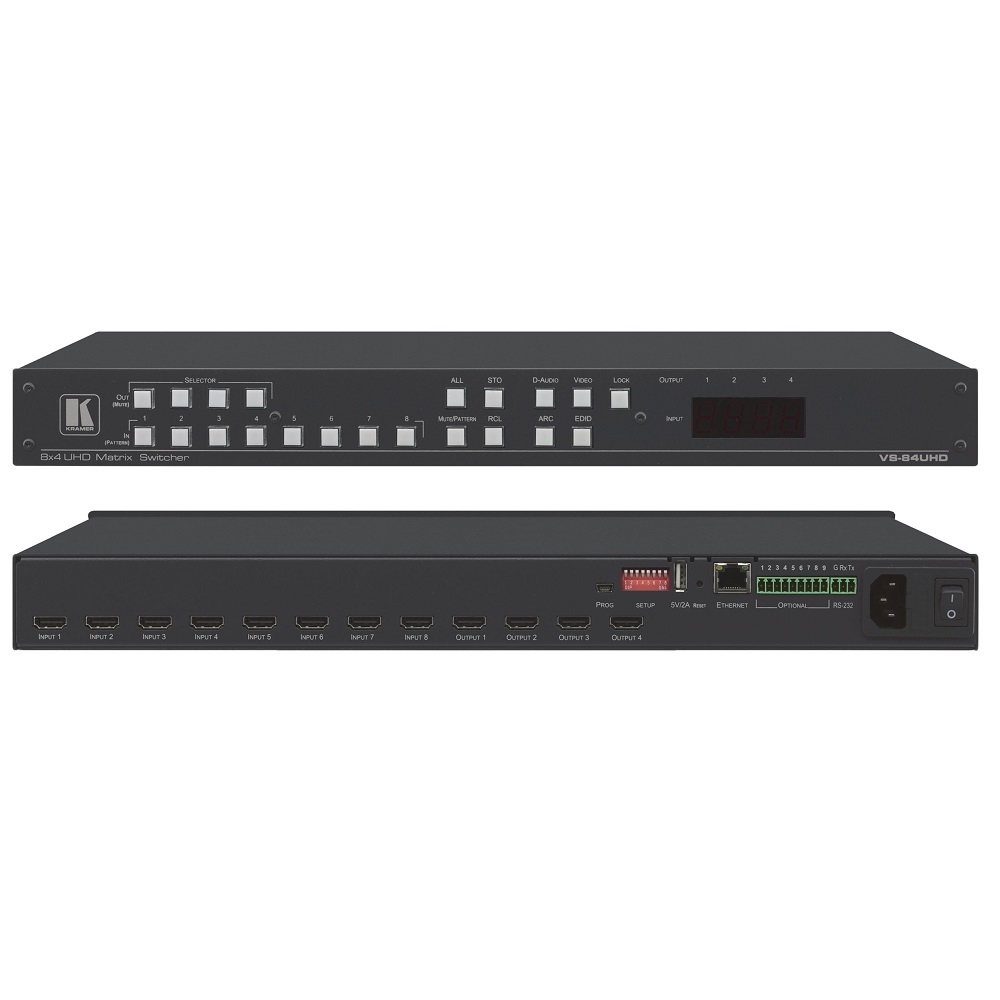

Ma trận chuyển mạch HDMI 8X4 VS-84UHD

Ma trận chuyển mạch HDMI 8X4 VS-84UHD

Mô tả ngắn

Resolutions up to 4K@60Hz (4:2:0)
Highly flexible independent audio matrix
Step–In over HDMI
Active source detection for priority, last–connected automatic and manual switching

liên hệ mua hàng
Hotline: 0918 642 886

VS−84UHD is a high−quality 8x4 matrix switcher for 4K@60Hz (4:2:0) HDMI signals and embedded audio. It reclocks and equalizes the signals and can route any one of eight HDMI, HDCP−compliant sources (selectable) to any or all outputs simultaneously. VS−84UHD offers a flexible audio scheme where any HDMI digital audio input can be routed to any HDMI digital audio output in addition to ARC support to produce an equivalent 12x8 audio matrix.

- Max. Data Rate — 8.91Gbps data rate (2.97Gbps per graphics channel).

- Max. Resolution — 4K@60Hz (4:2:0).

- Independent 12x8 Audio Matrix — With 8 embedded digital inputs + 4 ARC inputs and 4 embedded digital outputs + 4 ARC outputs.

- Kramer Step–In Over HDMI Technology.

- HDMI, HDCP and DVI Compliance.

- Selectable HDCP Off per Input.

- Memory Locations — 12 presets for quick access to common configurations.

- Advanced EDID Management per Input.

- Active Source & Acceptor Detection.

- Automatic Input Selection — Based on priority selection or last connected input.

- HDMI Support — Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels.

- Kramer reKlocking™ and Equalization Technology — Rebuilds the digital signal to travel longer distances.
Embedded Pattern Generator:With selectable patterns.

- Lock Button — To prevent tampering.

- Kramer Protocol 3000 Support.

- Firmware Upgrade — Via mini USB, Ethernet or the RS–232 port.

- Control Options — RS–232 serial commands transmitted by a PC, touch screen system or other serial controller, Ethernet port via LAN, embedded Web pages via LAN for configuration and control.

- Size — Standard 19" (1U). Rack "ears" included.

INPUTS

8 HDMI: On female HDMI connectors



OUTPUTS

4 HDMI: On female HDMI connectors



PORTS

1 Programming: On a Mini–USB connector

1 RS–232: On a 3–pin terminal block connector

1 Ethernet: On an RJ–45 connector

1 USB: On a USB–type A connector for powering an external device



VIDEO

Max. Resolutions: 4K@60Hz (4:2:0) and 4K@30Hz (4:4:4)

Standards Compliance: HDMI 1.4 and HDCP 1.4



USER INTERFACE

Indicators: OUTPUT/INPUT LED Display

Control: Front panel buttons, RS–232, Ethernet remote connection



POWER

Source: 100–240V/50–60Hz

Consumption: 500mA



ENVIRONMENTAL CONDITIONS

Operating Temperature: 0° to +40°C (32° to 104°F)

Storage Temperature: –40° to +70°C (–40° to 158°F)

Humidity: 10% to 90%, RH (non–condensing)



ACCESSORIES

Included: Rack ears, power cord



PRODUCT DIMENSION

19" x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H



PRODUCT WEIGHT

2.4kg (5.3lbs) approx.
